Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≤ 9

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: EDS-G308

Place Of Origin: Shanghai, China

Product Name: Switch

Condition: 100% Orginal

MOQ: 1pc

Warranty: 5 Years

Highlight:

Full Gigabit Unmanaged Ethernet Switches

EDS-G308 Series 8 Port Network Switch

Basic Infomation

Payment & Shipping Terms

Gallery

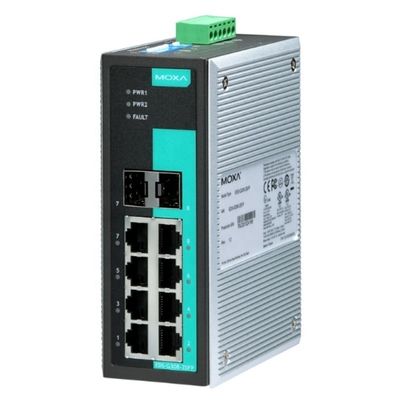

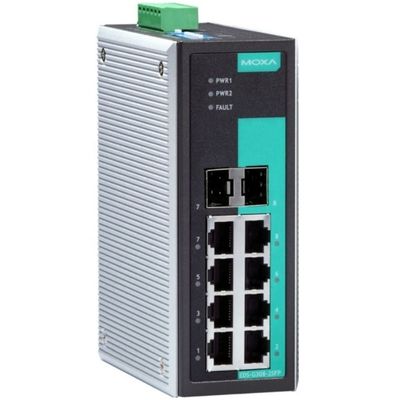

EDS-G308 Series Full Gigabit Unmanaged Ethernet Switches 8 Port Network Switch

Product Description

EDS-G308 Series Full Gigabit Unmanaged Ethernet Switches 8 Port Network Switch

Product Specifications

Product Description

New Original EDS-G308 Series 8G-port full Gigabit unmanaged Ethernet switches

Features and Benefits

Fiber-optic options for extending distance and improving electrical noise immunity
Redundant dual 12/24/48 VDC power inputs
Supports 9.6 KB jumbo frames
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)

Ethernet Interface	10/100/1000BaseT(X) Ports (RJ45 connector) EDS-G308/G308-T: 8 EDS-G308-2SFP/G308-2SFP-T: 6
All models support	Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
Combo Ports	10/100/1000BaseT(X) or 100/1000BaseSFP+ EDS-G308-2SFP: 2 EDS-G308-2SFP-T: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet
Switch Properties	Jumbo Frame Size: 9.6 KB MAC Table Size: 8 K Packet Buffer Size: 4 Mbits Processing Type: Store and Forward
Power Parameters	Connection: 1 removable 6-contact terminal block(s) Input Voltage: 12/24/48 VDC Redundant dual inputs Operating Voltage: 9.6 to 60 VDC Reverse Polarity Protection: Supported Input Current: EDS-G308: 0.8 A @ 12-48 VDC EDS-G308-2SFP: 0.9 A @ 12-48 VDC
Physical Characteristics	Housing: Metal IP Rating: IP30 Dimensions: 52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in) Weight: 880 g (1.94 lb) Installation: DIN-rail mounting Wall mounting (with optional kit)
