Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch

2 pieces
MOQ
CN¥930.91/pieces >=2 pieces
Price
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock
Ports: 16
Transmission Rate: 10/100/1000Mbps
Function: POE
Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: /
Brand Name: /
Model Number: EDS-316 Series
Place Of Origin: Shanghai, China
Product Name: Switch
Condition: 100% Orginal
MOQ: 1pc
Warranty: 5 Years
Highlight:

EDS-316 Series Networking Switch

,

Original EDS-316 Networking Switch

,

16 Port Unmanaged Ethernet Switch
Basic Infomation
Payment & Shipping Terms
Product Description
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch
Product Attributes
Attribute Value
Private Mold NO
Products Status Stock
Ports 16
Transmission Rate 10/100/1000Mbps
Function POE
Communication Mode Full-Duplex & Half-Duplex
Model Number EDS-316 Series
Place of Origin Shanghai, China
Condition 100% Original
MOQ 1pc
Warranty 5 Years
Product Description

New Original EDS-316 Series 16-port unmanaged Ethernet switches

Features and Benefits:
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): EDS-316 models: 16
100BaseFX Ports (multi-mode SC connector): EDS-316-M-SC models: 1
100BaseFX Ports (single-mode SC connector): EDS-316-SS-SC models: 2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Switch Properties
Packet Buffer Size: 1.25 Mbits
MAC Table Size: 4 K
Processing Type: Store and Forward
Power Parameters
Input Voltage: 12/24/48 VDC (Redundant dual inputs)
Operating Voltage: 9.6 to 60 VDC
Reverse Polarity Protection: Supported
Overload Current Protection: Supported
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight: 1140 g (2.52 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)

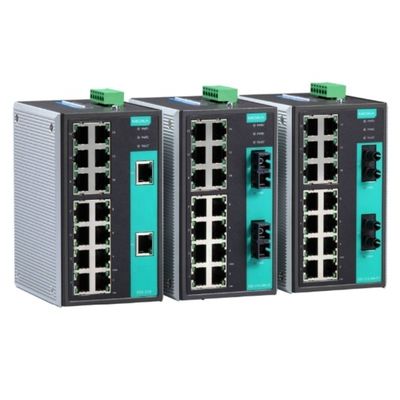

Product Images
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 0
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 1
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 2
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 3
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 4
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 5
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 6
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch 7
