Private Mold: NO

Products Status: Stock

Ports: ≤ 9

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: EDS-309 Series

Place Of Origin: Shanghai, China

Product Name: Switch

Condition: 100% Orginal

MOQ: 1pc

Warranty: 5 Years

Highlight:

9 Port Networking Switch

EDS-309 Series Networking Switch

Basic Infomation

Payment & Shipping Terms

Gallery

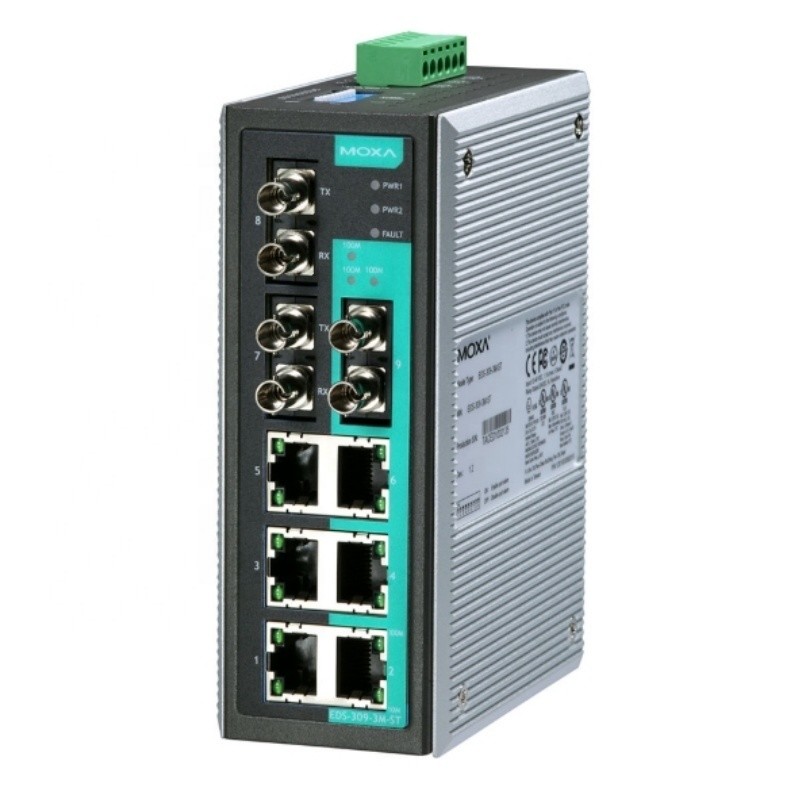

EDS-309 Series 9 Port Networking Switch Unmanaged Poe Switch

Product Description

EDS-309 Series 9 Port Networking Switch Unmanaged Poe Switch

Product Specifications

Product Description

New Original EDS-309 Series 9-port unmanaged Ethernet switches with Power over Ethernet (PoE) capability.

Key Features

Ethernet Interface	10/100BaseT(X) Ports (RJ45 connector): 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection 100BaseFX Ports (multi-mode SC connector): EDS-309-3M-SC Series: 3 100BaseFX Ports (multi-mode ST connector): EDS-309-3M-ST Series: 3
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Switch Properties	MAC Table Size: 1 K Packet Buffer Size: 512 kbits Processing Type: Store and Forward
Power Parameters	Input Current: 0.26 A @ 24 VDC Connection: 1 removable 6-contact terminal block(s) Operating Voltage: 9.6 to 60 VDC Input Voltage: Redundant dual inputs (12/24/48 VDC) Reverse Polarity Protection: Supported Overload Current Protection: Supported
Physical Characteristics	Housing: Metal IP Rating: IP30 Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) Weight: 790 g (1.75 lb) Installation: DIN-rail mounting or wall mounting (with optional kit)
