Features Gallery Product Description Request A Quote

Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: EDS-308

Place Of Origin: Shanghai, China

Product Name: Switch

Condition: 100% Orginal

MOQ: 1pc

Warranty: 5 Years

Highlight:

EDS-308 8 Port Unmanaged Switch

10/100/1000Mbps POE Switch

Basic Infomation

Payment & Shipping Terms

Gallery

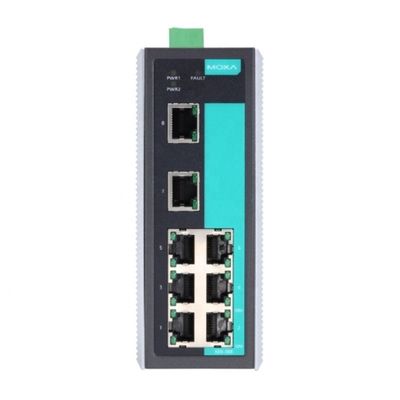

EDS-308 8 Port Unmanaged Switch 10/100/1000Mbps POE Network Switch

Product Description

EDS-308 8 Port Unmanaged Switch 10/100/1000Mbps POE Network Switch

Product Specifications

Product Description

New Original EDS-308 Series 8-port unmanaged Ethernet switches with Power over Ethernet (PoE) capability.

Key Features

Technical Specifications

Ethernet Interface	10/100BaseT(X) Ports (RJ45 connector): EDS-308/308-T: 8 EDS-308-M-SC/308-M-SC-T/308-S-SC/308-S-SC-T/308-S-SC-80: 7 EDS-308-MM-SC/308-MM-SC-T/308-MM-ST/308-MM-ST-T/308-SS-SC/308-SS-SC-T/308-SS-SC-80: 6
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Switch Properties	MAC Table Size: 2 kbits Packet Buffer Size: 768 K Processing Type: Store and Forward
Power Parameters	Input Current: EDS-308/308-T: 0.07 A @ 24 VDC EDS-308-M-SC: 0.11 A @ 24 VDC EDS-308-S-SC/308-S-SC-80: 0.12 A @ 24 VDC EDS-308-MM-SC/MM-ST/SS-SC/308-SS-SC-80: 0.15 A @ 24 VDC Operating Voltage: 9.6 to 60 VDC Input Voltage: Redundant dual inputs (12/24/48 VDC)
Physical Characteristics	Housing: Metal IP Rating: IP30 Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) Weight: 790 g (1.75 lb) Installation: DIN-rail mounting or wall mounting (with optional kit)
