5 Port POE Switch Unmanaged EDS-305 Networking Switch Full Duplex Half Duplex

2 pieces
MOQ
CN¥930.91/pieces >=2 pieces
Price
5 Port POE Switch Unmanaged EDS-305 Networking Switch Full Duplex Half Duplex
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock
Ports: ≤ 8
Transmission Rate: 10/100/1000Mbps
Function: POE
Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: /
Brand Name: /
Model Number: EDS-305
Place Of Origin: Shanghai, China
Product Name: Switch
Condition: 100% Orginal
MOQ: 1pc
Warranty: 5 Years
Highlight:

5 Port POE Switch Unmanaged

,

EDS-305 Networking Switch

,

POE Switch Unmanaged EDS-305
Basic Infomation
Payment & Shipping Terms
Product Description
5 Port POE Switch Unmanaged EDS-305 Networking Switch Full Duplex Half Duplex
Product Attributes
Attribute Value
Private Mold NO
Products Status Stock
Ports ≤ 8
Transmission Rate 10/100/1000Mbps
Function POE
Communication Mode Full-Duplex & Half-Duplex
Switch Capacity /
Brand Name /
Model Number EDS-305
Place of Origin Shanghai, China
Product Name Switch
Condition 100% Original
MOQ 1pc
Warranty 5 Years
Product Description

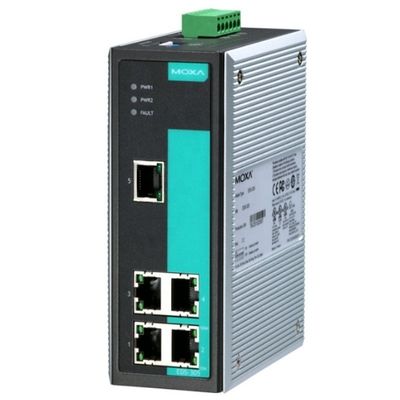

New Original EDS-305 5-port unmanaged Ethernet switches

Features and Benefits
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector): EDS-305/305-T: 5, EDS-305-M-SC/M-ST/S-SC/S-SC-80: 4
All models support Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
100BaseFX Ports Multi-mode SC connector: EDS-305-M-SC/M-SC-T: 1, Multi-mode ST connector: EDS-305-M-ST/M-ST-T: 1, Single-mode SC connector: EDS-305-S-SC/S-SC-T: 1, Single-mode SC connector (80 km): EDS-305-S-SC-80: 1
Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Switch Properties MAC Table Size: 1 K, Packet Buffer Size: 384 K, Processing Type: Store and Forward
Power Parameters Input Current: EDS-305/305-T: 0.11 A @ 24 VDC, EDS-305-M/S Models: 0.15 A @ 24 VDC
Connection 1 removable 6-contact terminal block(s)
Operating Voltage 12 to 48 VDC
Input Voltage 24 VDC, Redundant dual inputs
Protection Reverse Polarity Protection: Supported, Overload Current Protection: Supported
Physical Characteristics Housing: Metal, IP Rating: IP30, Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in), Weight: 790 g (1.75 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
