Home /Products/Networking Switch/5G Port EDS-G205 Full Gigabit Switch Unmanaged Network Switch

5G Port EDS-G205 Full Gigabit Switch Unmanaged Network Switch

2 pieces
MOQ
CN¥960.00/pieces >=2 pieces
Price
5G Port EDS-G205 Full Gigabit Switch Unmanaged Network Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock
Ports: ≤ 8
Transmission Rate: 10/100/1000Mbps
Function: POE
Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: /
Brand Name: /
Model Number: EDS-G205 Series
Place Of Origin: Shanghai, China
Product Name: Switch
Condition: 100% Orginal
MOQ: 1pc
Warranty: 5 Years
Highlight:

EDS-G205 Full Gigabit Switch

,

5G Port Unmanaged Network Switch

,

EDS-G205 Unmanaged Network Switch
Basic Infomation
Payment & Shipping Terms
Product Description

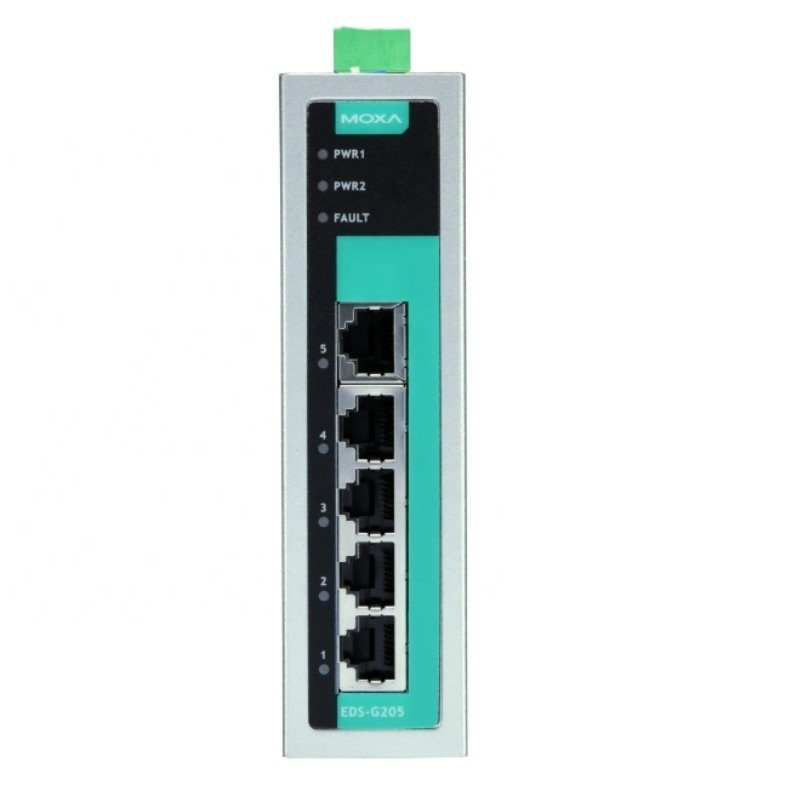

EDS-G205 Series 5G-port Full Gigabit Unmanaged Network Switch
Key Features
  • 5-port full Gigabit unmanaged Ethernet switch
  • Fiber-optic options for extended distance and improved electrical noise immunity
  • Redundant dual 12/24/48 VDC power inputs
  • Supports 10 KB jumbo frames
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • Wide operating temperature range (-40 to 75°C for -T models)
Technical Specifications
Ethernet Interface:
4 × 10/100/1000BaseT(X) ports (RJ45 connector)
Combo Ports:
1 × 10/100/1000BaseT(X) or 100/1000BaseSFP+
Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
MAC Table Size:
8 K
Packet Buffer Size:
1 Mbits
Jumbo Frame Size:
10 KB
Processing Type:
Store and Forward
Power Parameters
Connection:
1 removable 6-contact terminal block(s)
Input Voltage:
12/24/48 VDC (redundant dual inputs)
Operating Voltage:
9.6 to 60 VDC
Reverse Polarity Protection:
Supported
Input Current:
380 mA
Physical Characteristics
Housing:
Metal
IP Rating:
IP30
Dimensions:
29 × 135 × 105 mm (1.14 × 5.31 × 4.13 in)
Weight:
290 g (0.64 lb)
Installation:
DIN-rail mounting or wall mounting (with optional kit)
Standards Compliance
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3x for flow control
  • IEEE 802.3z for 1000BaseX
  • IEEE 802.3az for Energy-Efficient Ethernet
Product Information
Attribute Value
Model Number EDS-G205 Series
Place of Origin Shanghai, China
Condition 100% Original
MOQ 1pc
Warranty 5 Years
