Home /Products/Networking Switch/EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

2 pieces

MOQ

CN¥938.18/pieces >=2 pieces

Price

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

Features Gallery Product Description Request A Quote

Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: EDS-2018-ML Series

Place Of Origin: Shanghai, China

Product Name: Switch

Condition: 100% Orginal

MOQ: 1pc

Warranty: 5 Years

Highlight:

16+2G Port Unmanaged Switches

,

EDS-2018-ML Series Unmanaged Switches

,

EDS-2018-ML Unmanaged Ethernet Switches

Basic Infomation

Payment & Shipping Terms

Gallery

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

Product Description

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

Key Features

16-port 10/100BaseT(X) with 2 Gigabit uplinks
Unmanaged Ethernet switch with QoS support
Redundant dual 12/24/48 VDC power inputs
IP30-rated metal housing for industrial environments
Wide operating temperature range (-40 to 75°C for -T models)
DIN-rail and wall mountable installation
5-year warranty with 100% original components

Technical Specifications

Attribute	Specification
Model Number	EDS-2018-ML Series
Port Configuration	16 x 10/100BaseT(X) + 2 x Gigabit combo ports
Transmission Rate	10/100/1000Mbps
Communication Mode	Full-Duplex & Half-Duplex
MAC Table Size	8 K
Packet Buffer Size	4 Mbits
Power Input	Redundant dual 12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Housing	Metal (IP30 rated)
Dimensions	58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
Weight	683 g (1.51 lb)
Warranty	5 Years

Standards Compliance

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service

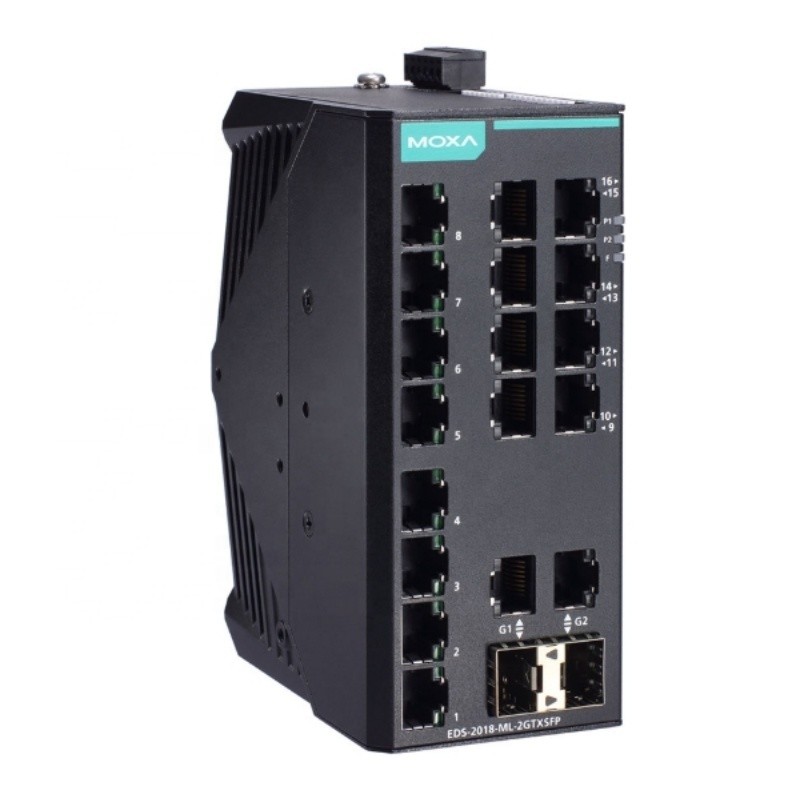

Product Images

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 0

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 1

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 2

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 3

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 4

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 5

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 6

EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches 7

Additional Information

Industrial Reliability

Designed for harsh environments with wide temperature range operation and robust metal housing.

Network Monitoring

Relay output warning for power failure and port break alarm for easy maintenance.

Flexible Installation

Supports both DIN-rail mounting and wall mounting (with optional kit) for versatile deployment.

Quality Assurance

100% original components with 5-year warranty and manufactured in Shanghai, China.
