10/100/1000Mbps 16 Port Unmanaged Switch EDS-2016-ML Series Networking Switch

Product Description

10/100/1000Mbps 16 Port Unmanaged Switch EDS-2016-ML Series Networking Switch

Product Attributes

Product Description

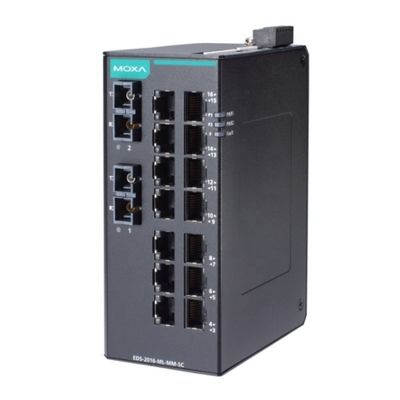

New Original EDS-2016-ML Series 16-port unmanaged Ethernet switches

Features and Benefits

10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
QoS supported to process critical data in heavy traffic
Relay output warning for power failure and port break alarm
IP30-rated metal housing
Redundant dual 12/24/48 VDC power inputs
-40 to 75°C operating temperature range (-T model)

Technical Specifications

Ethernet Interface	Details
10/100BaseT(X) Ports (RJ45 connector)	EDS-2016-ML(-T): 16 EDS-2016-ML-MM-SC(-T): 14 EDS-2016-ML-MM-ST(-T): 14 EDS-2016-ML-SS-SC(-T): 14 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-2016-ML-MM-SC(-T): 2
100BaseFX Ports (multi-mode ST connector)	EDS-2016-ML-MM-ST(-T): 2
100BaseFX Ports (single-mode SC connector)	EDS-2016-ML-SS-SC(-T): 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.1p for Class of Service
Switch Properties	MAC Table Size: 8 K Packet Buffer Size: 2 Mbits Processing Type: Store and Forward
Power Parameters	Connection: 1 removable 6-contact terminal block(s) Input Current: - EDS-2016-ML: 0.088 A @ 24 VDC - EDS-2016-ML-MM-SC: 0.149 A @ 24 VDC - EDS-2016-ML-MM-ST: 0.152 A @ 24 VDC - EDS-2016-ML-SS-SC: 0.163 A @ 24 VDC Input Voltage: 12/24/48 VDC Redundant dual inputs Operating Voltage: 9.6 to 60 VDC Overload Current Protection: Supported Reverse Polarity Protection: Supported
Physical Characteristics	Housing: Metal IP Rating: IP30 Dimensions: - Non-fiber models: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in) - Fiber models: 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in) Weight: - Non-fiber models: 486 g (1.07 lb) - Fiber models: 648 g (1.43 lb) Installation: DIN-rail mounting, Wall mounting (with optional kit)
