Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: EDS-208 Series

Place Of Origin: Shanghai, China

Product Name: Switch

Condition: 100% Orginal

MOQ: 1pc

Warranty: 5 Years

Highlight:

poe network switch

poe networking switch

Basic Infomation

Payment & Shipping Terms

Gallery

Original EDS-208 Series 8-port Entry-level Ethernet Switches with Private Mold and Full-Duplex Half-Duplex Communication

Product Description

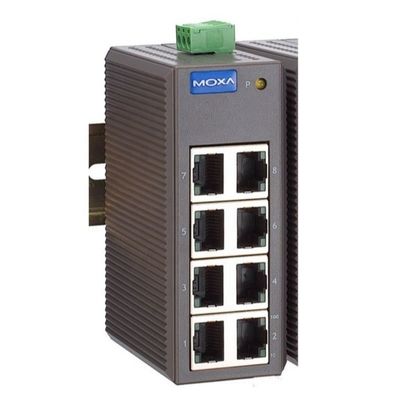

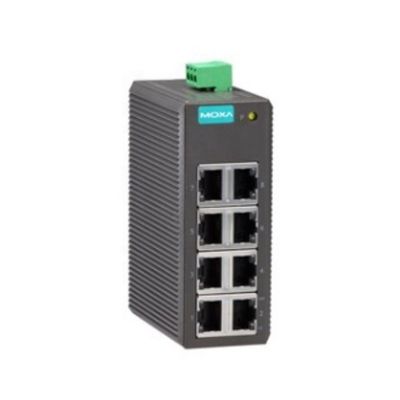

Original EDS-208 Series 8-port Entry-level Ethernet Switches

High-performance Ethernet switches featuring full-duplex and half-duplex communication modes, designed for industrial applications.

Key Specifications

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Model Number: EDS-208 Series

Place of Origin: Shanghai, China

Condition: 100% Original

MOQ: 1pc

Warranty: 5 Years

Technical Features

Ethernet Interface

Specification	Details
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)	EDS-208: 8 EDS-208-M-SC: 1 EDS-208-M-ST: 1 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-208-M-SC: 1
100BaseFX Ports (multi-mode ST connector)	EDS-208-M-ST: 1

Switch Properties

Power Parameters

Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Input Current	EDS-208 Models: 0.07 A @ 24 VDC EDS-208-M Models: 0.1 A @ 24 VDC
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	2.5 A @ 24 VDC
Reverse Polarity Protection	Supported
