Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Function: POE

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Place Of Origin: Shanghai, China

Product Name: Switch

Condition: 100% Orginal

MOQ: 1pc

Warranty: 5 Years

Highlight:

1000mbps network switch

1000mbps networking switch

Basic Infomation

Payment & Shipping Terms

Gallery

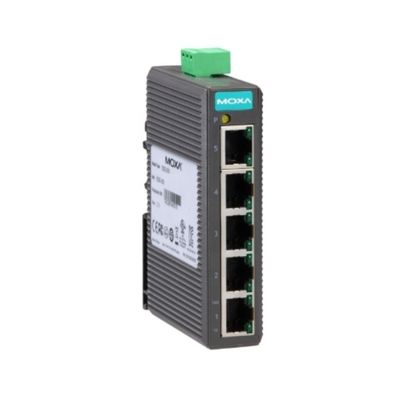

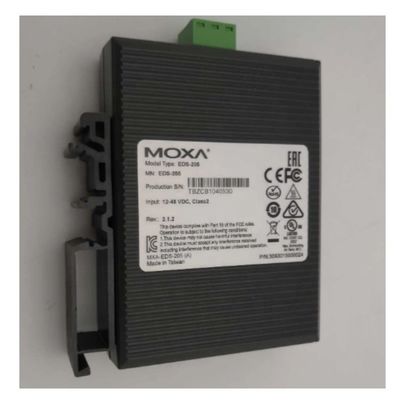

Stock 10/100/1000Mbps Entry-level Unmanaged Ethernet Switches EDS-205 5-port with speed and Fast Transmission Rate

Product Description

Stock 10/100/1000Mbps Entry-level Unmanaged Ethernet Switches EDS-205 5-port with speed and Fast Transmission Rate

Product Specifications

Product Features

Ethernet Interface: 10/100BaseT(X) (RJ45 connector)

Standards: IEEE802.3/802.3u/802.3x support

Protection: Broadcast storm protection

Mounting: DIN-rail mounting ability

Operating Temperature: -10 to 60°C

Ethernet Interface	10/100BaseT(X) Ports (RJ45 connector)
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
Port Features	Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
Switch Properties	Processing Type: Store and Forward MAC Table Size: 2 K Packet Buffer Size: 512 kbits
Power Parameters	Input Voltage: 12 to 48 VDC Input Current: 0.12 A @ 24 VDC Connection: 1 removable 3-contact terminal block(s) Overload Current Protection: 1.1 A @ 24 VDC Reverse Polarity Protection: Supported
Physical Characteristics	Housing: Plastic IP Rating: IP30 Dimensions: 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in) Weight: 135 g (0.30 lb) Installation: DIN-rail mounting
