Features Gallery Product Description Request A Quote

Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: EDS-2008-EL

Place Of Origin: Shanghai, China

Suitable For: Workstation, Laptop, Desktop

Condition: Original 100%

Warranty: 1year

MOQ: 1 Piece

Lead Time: 1-2 Days

Highlight:

qos network switch

qos networking switch

Basic Infomation

Payment & Shipping Terms

Gallery

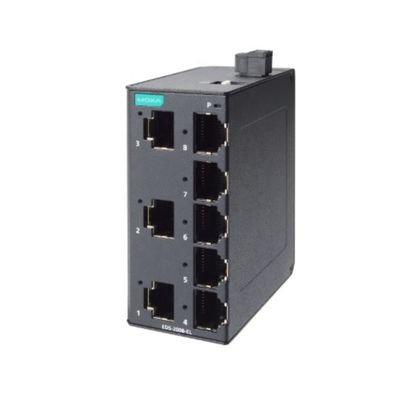

100% Original Entry-level EDS-2008-EL 8-port Unmanaged Ethernet Switches with QoS Function and Metal Housing

Product Description

100% Original Entry-level EDS-2008-EL 8-port Unmanaged Ethernet Switches with QoS Function and Metal Housing

Product Attributes

Features and Benefits

Technical Specifications

Ethernet interface
10/100BaseT(X) Ports (RJ45 connector)	EDS-2008-EL: 8 EDS-2008-EL-M-ST: 7 EDS-2008-EL-M-SC: 7 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
100BaseFX Ports (multi-mode SC connector)	EDS-2008-EL-M-SC: 1
Switch properties
Processing Type	Store and Forward
MAC Table Size	2 K
Packet Buffer Size	768 kbits
power parameters
Connection	1 removable 2-contact terminal block(s)
Input Current	EDS-2008-EL: 0.052A @ 24 VDC EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.082A @ 24 VDC
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
physical characteristics
Dimensions	EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in) EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector) EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)
Installation	DIN-rail mounting Wall mounting (with optional kit)
Weight	169 g (0.37 lb)
Housing	Metal
