Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: Nex Us 34 32 D S

Place Of Origin: Shanghai, China

Suitable For: Workstation, Laptop, Desktop

Condition: Original 100%

Warranty: 1year

MOQ: 1 Piece

Lead Time: 1-2 Days

Highlight:

poe network switch

qos network switch

poe networking switch

Basic Infomation

Payment & Shipping Terms

Gallery

Advanced and Customizable Desktop Switch Private Mold NO Suitable for Nex Us 34 32 D S 400 G Capable

Product Description

Advanced and Customizable Desktop Switch Private Mold NO Suitable for Nex Us 34 32 D S 400 G Capable

Product Attributes

Attribute	Value
Private Mold	NO
Products Status	Stock
Ports	24
Transmission Rate	10/100/1000Mbps
Function	LACP, POE, QoS, SNMP
Communication Mode	Full-Duplex & Half-Duplex
Model Number	Nex us 34 32 D S
Place of Origin	Shanghai, China
Suitable For	Workstation, Laptop, Desktop
Condition	Original 100%
Warranty	1year
MOQ	1 Piece
Lead Time	1-2 Days

Product Description

Software Package Features

System default (no license required):

Comprehensive layer 2 feature set: VLAN, IEEE 802.1Q trunking, Link Aggregation Control Protocol (LACP), Unidirectional Link Detection (UDLD; standard and aggressive), Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), and Spanning Tree Protocol guard
Security: Authentication, Authorization, and Accounting (AAA), Access Control Lists (ACLs), storm control, and configurable Control-Plane Policing (CoPP)
Management features: Cisco Data Center Network Manager (DCNM) support, Secure Shell Version 2 (SSHv2) access, Cisco Discovery Protocol, Simple Network Management Protocol (SNMP), syslog
Monitoring features: Advanced buffer monitoring, Switched Port Analyzer (SPAN) and Encapsulated RSPAN (ERSPAN)

Base license:

Layer 3 IP routing: Inter-VLAN Routing (IVR), static routes, Routing Information Protocol Version 2 (RIPv2), ACLs, Open Shortest Path First Version 2 (OSPFv2; limited to 256 routes), Enhanced Interior Gateway Routing Protocol (EIGRP) stub, Hot Standby Router Protocol (HSRP), and Virtual Router Redundancy Protocol (VRRP)

Essential License (N3K):

Advanced layer 3 IP routing: OSPFv2, EIGRP, Border Gateway Protocol (BGP), and Intermediate System to Intermediate System (IS-IS), and Virtual Routing and Forwarding Lite (VRF-Lite) and Telemetry Features: Buffer Drop Capture (BDC), High Delay Capture (HDC) and INT
License for using the tap and SPAN aggregation functions with Nexus Data Broker; supported on Essential License

Product Specifications

Model: Ne xus 34 32 D S

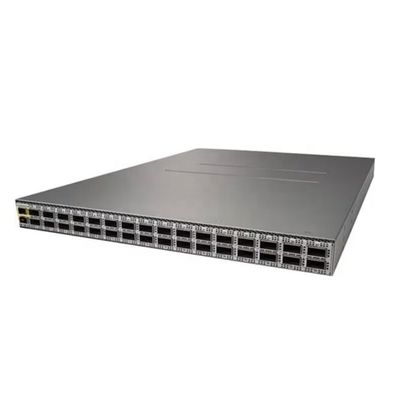

Physical: 32 fixed 400-Gigabit-Ethernet QSFP-DD ports, Beacon LED, Status LED, Dual-redundant power supplies, Redundant (5+1) fans, Two 100/1000Mbps SFP ports in front (ports 33 and 34), One RS-232 serial console port, One RJ45 and one SFP management port, One USB port

Performance: 25.6 Tbps switching capacity

Typical operating power: 626W

Maximum power: 1240W

Typical heat dissipation: 2136 BTU/hr

Maximum heat dissipation: 4231 BTU/hr
