Features

Specifications

Private Mold: Yes

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP, Stackable

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 10g

Brand Name: /

Model Number: S6720-30L-HI-24S

Place Of Origin: Shanghai, China

Highlight:

1000mbps ethernet switch

1000mbps poe network switch

Basic Infomation

Payment & Shipping Terms

Gallery

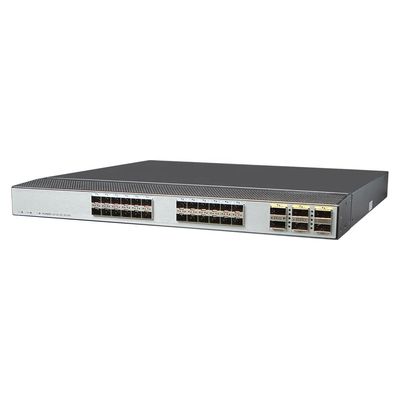

Full-Duplex Half-Duplex Communication Mode Ethernet Switch S6720-30L-HI-24S with and 10/100/1000Mbps Transmission Rate

Product Description

Full-Duplex Half-Duplex Communication Mode Ethernet Switch S6720-30L-HI-24S with 10/100/1000Mbps Transmission Rate

Product Attributes

Product Images

Specifications

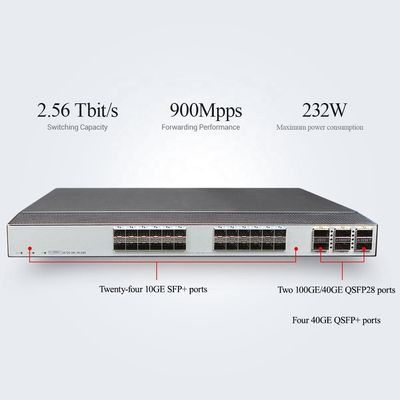

Switching Capacity:

2.56 Tbit/s

Fixed Ports:

24 x 10 Gigabit SFP+, 4 x 40 Gigabit QSFP+, and 2 x 100 Gigabit QSFP28

Extended Slots:

Not supported

MAC Address Table:

64K MAC address entries

Features

IEEE 802.1d standards compliance
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
4,094 VLANs support
Guest VLANs and voice VLANs
GVRP, MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
