Features

Specifications

Private Mold: Yes

Products Status: Stock

Ports: 16

Transmission Rate: 10/100Mbps

Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode: Full-Duplex

Brand Name: /

Model Number: TEF1105P

Place Of Origin: Shanghai, China

Product Name: Network Switches

Size: 100.0mm*100.0mm*26.0mm

Color: Customizable

Switch Capacity: 1Gbps

Highlight:

poe network switch

poe networking switch

qos network switch

Basic Infomation

Payment & Shipping Terms

Gallery

1Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Product Description

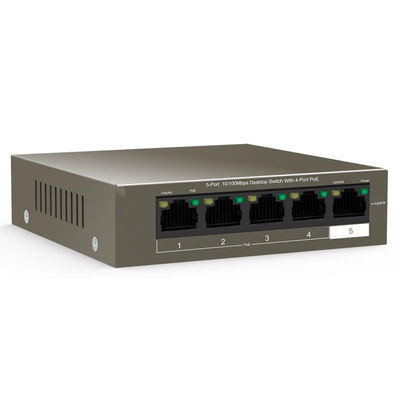

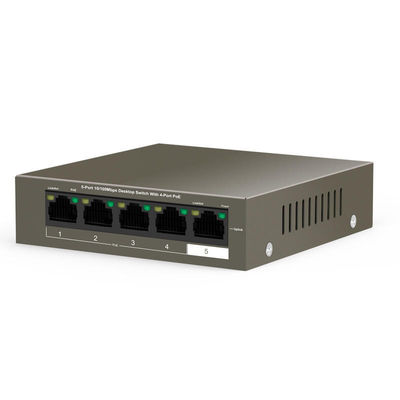

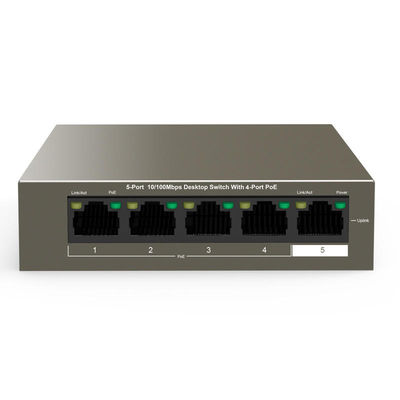

TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

A high-performance network switch featuring 1Gbps switch capacity, long-distance transmission capability, and 4 Power over Ethernet (PoE) ports for flexible deployment.

Key Features

5-port 10/100Mbps desktop switch with 4 PoE ports
1Gbps switching capacity for high-speed data transfer
Supports IEEE 802.3af/at PoE standards (up to 30W per port)
Compact size (100×100×26mm) for space-efficient installation
Advanced networking features: VLAN, QoS, SNMP, and LACP support
Robust protection: 6kV lightning protection and ±10kV ESD protection

Technical Specifications

Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Port Configuration	4×10/100Base-TX PoE ports + 1×10/100Base-TX data port
Forwarding Mode	Store-and-forward
Switch Capacity	1Gbps
Packet Forwarding Rate	0.74Mpps
MAC Address Table	1K entries
PoE Budget	Single port: 15.4W (AF) / 30W (AT) Total: 58W
Physical Dimensions	100×100×26mm (W×D×H)
Protection Level	6kV lightning protection (ports & power) ±10kV ESD air discharge ±8kV ESD contact discharge
