Home /Products/Networking Switch/Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution

Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution

2 pieces
MOQ
CN¥216.77/pieces >=2 pieces
Price
Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Lan Data Rate: 1000Mbps
With Modem Function: NO
Standards And Protocols: WiFi 802.11 Ax
Wi-fi Supported Frequency: 2.4G & 5G
Supports Wds: No
Supports Wps: Yes
Wi-fi Transmission Standard: WiFi 802.11 Ax
Wired Transfer Rate: 1000Mbps
2.4g Wi-fi Transmission Rate: 300 Mbps
Encryption Type: WPA-PSK
Products Status: New
Type: Wireless
Application: MINI WIFI
Function: Voip, FireWall, QoS, VPN, SDK Available
Lan Ports: 3
Brand Name: /
Place Of Origin: Shanghai, China
5g Wi-fi Transmission Rate: 1000Mbps
Product Name: Routers
Size: Customized Size
Color: Customizable
Highlight:

qos network switch

,

qos networking switch

,

1000mbps network switch
Basic Infomation
Payment & Shipping Terms
Product Description
Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution
Key Features
Max LAN Data Rate
1000Mbps
Wi-Fi Standards
WiFi 802.11 ax
Frequency Support
2.4G & 5G
Encryption
WPA-PSK
Ports
16 Gigabit Ethernet
Dimensions
235mm × 103mm × 27mm
Technical Specifications
Network Standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
LED Indicators Link/Act LED per port, Power LED per device
Interfaces 16×10/100/1000Base-T Ethernet ports
Transmission Media CAT3 UTP or better (Ethernet)
CAT5 UTP or better (Fast Ethernet)
CAT5e UTP or better (Gigabit)
Material Metal casing
Protection 6 kV port lightning protection
±8 kV air discharge
±6 kV contact discharge
Forwarding Mode Store-and-forward
Switch Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
Power Input: 100-240V AC 50/60Hz, 0.4A
Output: 12V 1A
Max consumption: <12W
Mounting Options Desktop and wall mounting supported
Operating Conditions Temperature: 0°C to 45°C
Humidity: 10% to 90% RH
Certifications CE, FCC, RoHS
Software Features
  • Auto-learning and auto-updating MAC address table (8K capacity)
  • One-key VLAN functionality (ports 1-14 isolated, ports 15-16 accessible)
  • Support for CDMA/CD protocols
  • Jumbo frame support up to 10K
  • 2Mb buffer memory

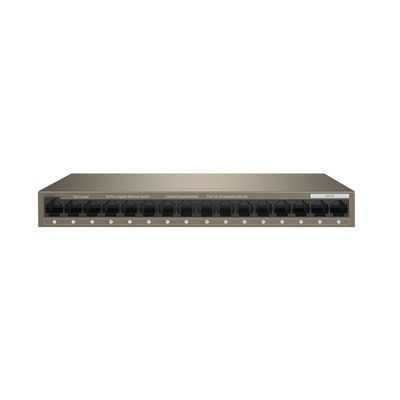

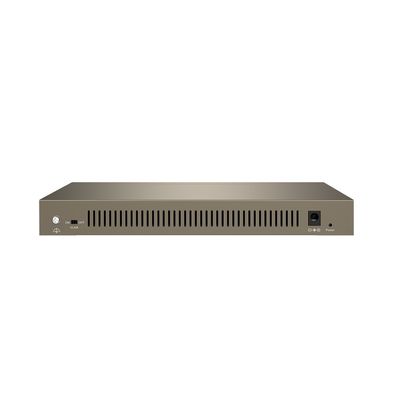

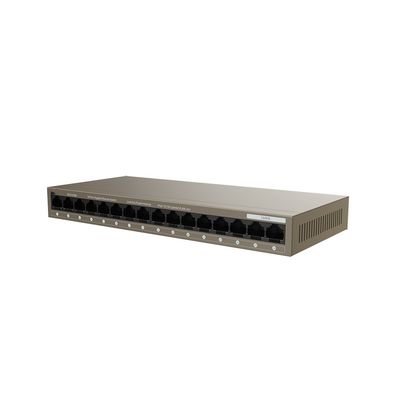

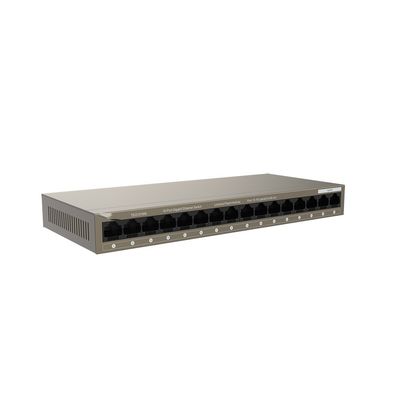

Product Images
Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution 0 Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution 1 Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution 2 Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution 3 Customizable TEG1016M 16-port Gigabit Switch for Enterprise Level WiFi 802.11 ax Engineering Monitoring and Distribution 4
Customization Options
Size
Custom dimensions available
Color
Custom color options
Functionality
VoIP, Firewall, QoS, VPN, SDK available
