Home /Products/Networking Switch/Customized SG105 5-port Gigabit Desktop Switch The Ultimate Networking Solution for Fast and Stable Wi-Fi 802.11 ax Network

Customized SG105 5-port Gigabit Desktop Switch The Ultimate Networking Solution for Fast and Stable Wi-Fi 802.11 ax Network

2 pieces
MOQ
CN¥50.58/pieces >=2 pieces
Price
Customized SG105 5-port Gigabit Desktop Switch The Ultimate Networking Solution for Fast and Stable Wi-Fi 802.11 ax Network
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Lan Data Rate: 1000Mbps
With Modem Function: NO
Standards And Protocols: WiFi 802.11 Ax
Wi-fi Supported Frequency: 2.4G & 5G
Supports Wds: No
Supports Wps: Yes
Wi-fi Transmission Standard: WiFi 802.11 Ax
Wired Transfer Rate: 1000Mbps
2.4g Wi-fi Transmission Rate: 300 Mbps
Encryption Type: WPA-PSK
Products Status: New
Type: Wireless
Application: MINI WIFI
Function: Voip, FireWall, QoS, VPN, SDK Available
Lan Ports: 3
Brand Name: /
Place Of Origin: Shanghai, China
5g Wi-fi Transmission Rate: 1000Mbps
Product Name: Routers
Size: Customized Size
Color: Customizable
Highlight:

qos network switch

,

qos networking switch

,

1000mbps network switch
Basic Infomation
Payment & Shipping Terms
Product Description
Customized SG105 5-port Gigabit Desktop Switch

The ultimate networking solution for fast and stable WiFi 802.11ax network connectivity in professional environments.

High-Speed Performance
1000Mbps wired transfer rate with WiFi 802.11ax support
Flexible Connectivity
5 Gigabit Ethernet ports with Auto MDI/MDIX
Advanced Security
WPA-PSK encryption and ESD protection
Compact Design
93.0mm×66.0mm×23.0mm dimensions for space-saving deployment
Product Specifications
Attribute Value
Max LAN Data Rate 1000Mbps
WiFi Standards 802.11 ax (2.4G & 5G)
Encryption WPA-PSK
LAN Ports 5
Place of Origin Shanghai, China
Dimensions 93.0mm×66.0mm×23.0mm
Material Plastic
Certifications CE, FCC, RoHS
Technical Details
Hardware Specifications
  • Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
  • LED Indicators: 1 Power, 5 Link/Act
  • Interfaces: 5×10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
  • Transmission media: Recommended CAT5/5e UTP or better
  • Switch capacity: 10Gbps
  • Packet forwarding rate: 7.44Mpps
Power & Environment
  • Input: 100-240V AC 50/60Hz
  • Output: 5.0V 0.6A (External Power Adapter)
  • Power consumption: Max <1.7W
  • Operating temperature: 0°C - 45℃
  • Storage temperature: -40°C - 70°C

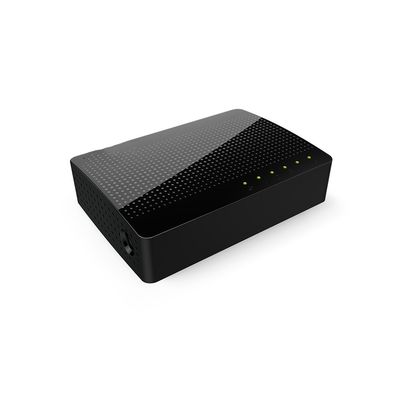

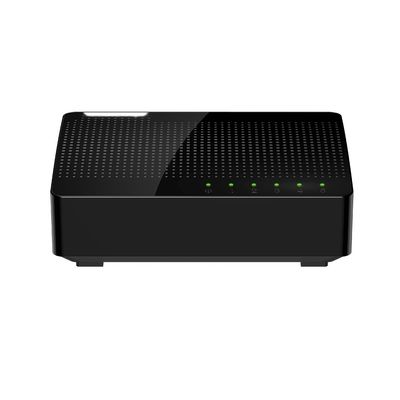

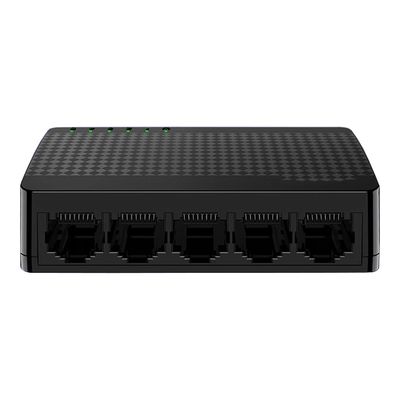

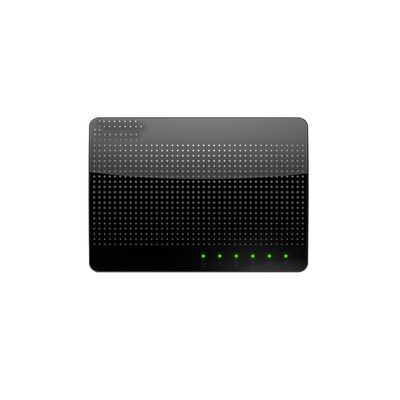

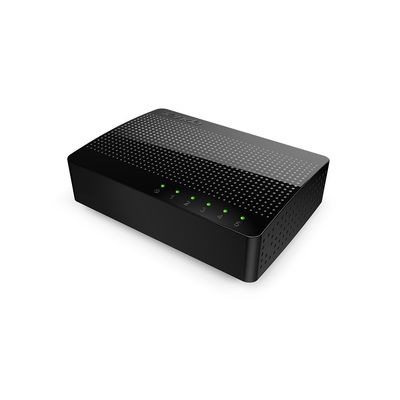

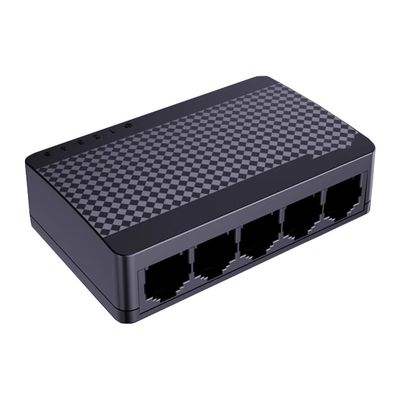

Product Images
Customized SG105 5-port Gigabit Desktop Switch The Ultimate Networking Solution for Fast and Stable Wi-Fi 802.11 ax Network 0 Customized SG105 5-port Gigabit Desktop Switch The Ultimate Networking Solution for Fast and Stable Wi-Fi 802.11 ax Network 1 Customized SG105 5-port Gigabit Desktop Switch The Ultimate Networking Solution for Fast and Stable Wi-Fi 802.11 ax Network 2
Additional Features
  • Plug-and-play operation
  • Auto-Learning and Auto-Aging MAC address table (2K capacity)
  • Store-and-forward forwarding mode
  • Supports desktop and wall mounting
  • Compact and lightweight design for flexible deployment
