Home /Products/Networking Switch/Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports

Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports

CN¥2,478.32/pieces 1-1 pieces
Price
Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock
Ports: 24
Transmission Rate: 10/100/1000Mbps
Function: LACP, POE, QoS, SNMP
Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: /
Brand Name: /
Model Number: S5735-L24P4S-A1
Place Of Origin: Shanghai, China
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

poe network switch

,

qos network switch

,

poe network ethernet switch
Basic Infomation
Payment & Shipping Terms
Product Description
CloudEngine S5735-L24P4S-A1 Network Switch
Professional-grade 24-port network switch with Full-Duplex/Half-Duplex communication modes, Power over Ethernet (PoE) support, and advanced networking features including LACP, QoS, and SNMP.

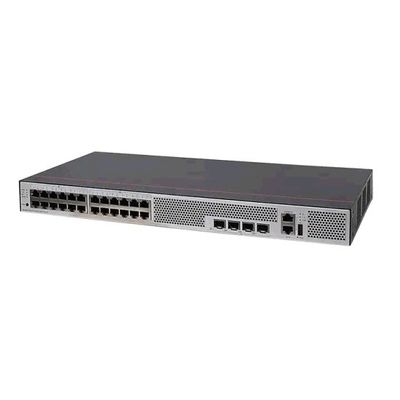

Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports 0
Key Features
  • 24-port configuration with 10/100/1000Mbps transmission rates
  • Supports both Full-Duplex and Half-Duplex communication modes
  • Power over Ethernet (PoE) capability
  • Advanced networking features: LACP, QoS, SNMP
  • Customizable size and color options
  • Compact 1U rack-mountable design
  • Built-in AC power supply with wide voltage range

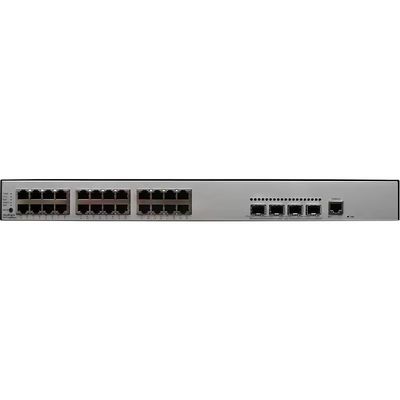

Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports 1
Technical Specifications
Model Number:
S5735-L24P4S-A1
Ports:
24
Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Memory:
512 MB
Flash Memory:
512 MB
Power Supply:
AC built-in (100-240V AC, 50/60Hz)
Dimensions:
90.0 mm x 550.0 mm x 360.0 mm (1U height)
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Humidity:
5% to 95%, noncondensing

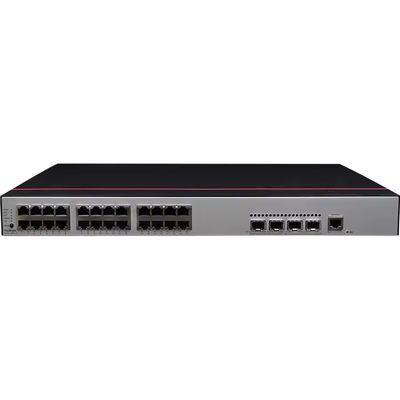

Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports 2
Power & Performance
Typical Power Consumption 41.7 W
Maximum Power Consumption (Non-PoE) 53.2 W
Maximum Power Consumption (100% PoE) 433.2 W (PoE: 380 W)
Typical Heat Dissipation 142.29 BTU/hour
MTBF 55.72 years
Noise Level 50 dB(A) (acoustic power), 38.2 dB(A) (acoustic pressure)

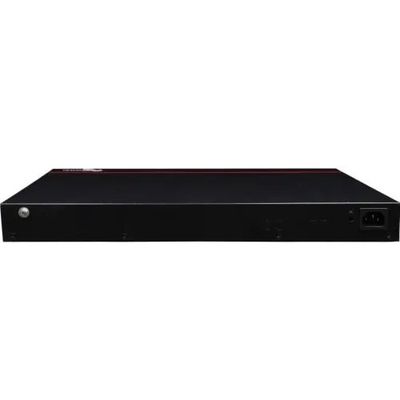

Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports 3
Additional Features
  • Built-in fans with intelligent speed adjustment
  • Airflow: intake from left and front, exhaust from right
  • Service port surge protection: ±7 kV common mode
  • Power supply surge protection: ±6 kV differential and common mode
  • RJ45 console port
  • High availability: >0.99999
Customized CloudEngine S5 735-L2 4P4S-A1 Network Switch with Full-Duplex Half-Duplex Communication Mode and 24 Ports 4
