Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≥ 48

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Place Of Origin: Shanghai, China

Size: Customized Size

Color: Customizable

Suitable For: Workstation, Laptop, Desktop

Highlight:

1000mbps network switch

1000mbps networking switch

10ge network switch

Basic Infomation

Payment & Shipping Terms

Gallery

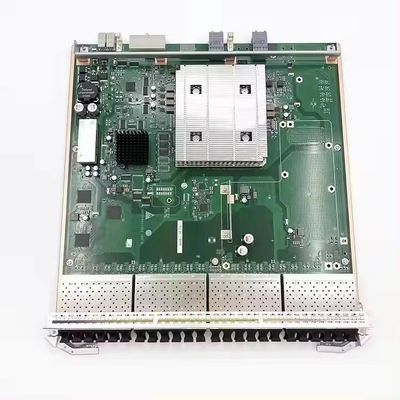

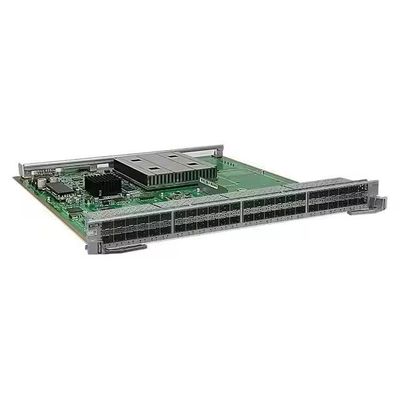

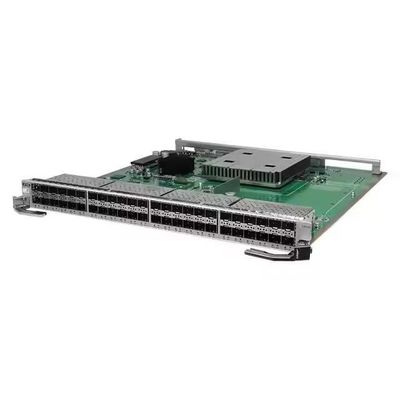

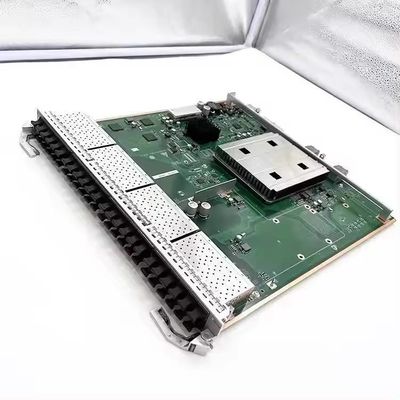

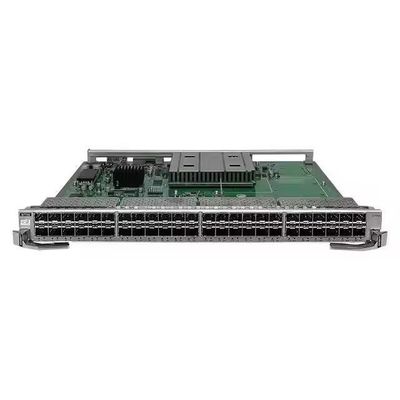

10/100/1000Mbps Transmission Rate S7700 Series 48-Port 10GE SFP Interface Card X6S SFP LSS7X48SX6S0 Advanced Line Card

Product Description

10/100/1000Mbps Transmission Rate S7700 Series 48-Port 10GE SFP Interface Card X6S SFP LSS7X48SX6S0 Advanced Line Card

Product Overview

High-performance 48-port 10GE SFP+ interface card designed for S7700 series switches, offering advanced networking capabilities with support for 10/100/1000Mbps transmission rates.

Key Specifications

Model: LSS7X48SX6S0

Part Numbers: 03033ATA, 03033ATA-001, 03033ATA-002

Interface Type: 48-port 10GE SFP+ (X6S, SFP+)

Transmission Rate: 10/100/1000Mbps

Network Protocol: IP

Technical Features

Provides forty-eight 1000M/10G BASE-X ports for high-speed data transmission
Distributed forwarding using a distributed data plane architecture
Hot swappable design for easy maintenance and upgrades
Supports LACP, POE, QoS, and SNMP functionalities
Full-Duplex & Half-Duplex communication modes
Compliance with IEEE802.3z standards

Compatibility

Supported Switch Models	Compatible Slots	Software Version Requirements
S7703, S7703 PoE	Slots 01 to 03	V200R013C02+ (S7703) V200R019C00+ (S7703 PoE)
S7706, S7706 PoE	Slots 01 to 06	V200R019C00+
S7710, S7712	Slots 01 to 12	V200R019C00+

Physical Specifications

Dimensions (H × W × D)	Weight	Power Consumption
35.1 mm × 397.2 mm × 430.4 mm	3.2 kg	Maximum 192 W

Indicator Functions

Indicator	Color	Status Meaning
ACT	Yellow	Blinking during data transmission/reception
LINK	Green	Steady on when link is established
RUN/ALM	Green	Powered on (steady), software running (slow blink), starting (fast blink)
