Home /Products/Networking Switch/Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication

Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication

CN¥13,005.72/pieces 1-1 pieces
Price
Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock
Ports: 24
Transmission Rate: 10/100/1000Mbps
Function: LACP, POE, QoS, SNMP
Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: /
Brand Name: /
Model Number: EX4300-24P
Place Of Origin: Shanghai, China
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

24p network switch

,

24p network ethernet switch

,

poe network switch
Basic Infomation
Payment & Shipping Terms
Product Description
EX4300-24P Network Switch - Enterprise-class PoE Internet Equipment
Key Features
Ports:
24
Transmission Rate:
10/100/1000Mbps
Functions:
LACP, POE, QoS, SNMP
Communication Mode:
Full-Duplex & Half-Duplex
Model Number:
EX4300-24P
Place of Origin:
Shanghai, China
Customization:
Size and color customizable
Technical Specifications
Form Factor Fixed platform/Virtual Chassis configuration (up to 10 switches)
Dimensions (W × H × D) 17.4 × 1.7 × 16.4 in (44.2 × 4.3 × 41.7 cm) - 1 rack unit
Backplane Speed 320 Gbps (Virtual Chassis)
Data Rate 448 Gbps
Throughput 333 Mpps (wire speed)
40GBASE QSFP+ Port Density 4 per switch (up to 20 in Virtual Chassis configuration)
Resiliency Features Hot-swappable redundant power supply, field-replaceable fans, GRES in Virtual Chassis
Operating System Junos OS
Traffic Monitoring sFlow
QoS Queues per Port 12
MAC Address Capacity 64,000
Jumbo Frame Support Up to 9216 bytes
VLAN Capacity 4093

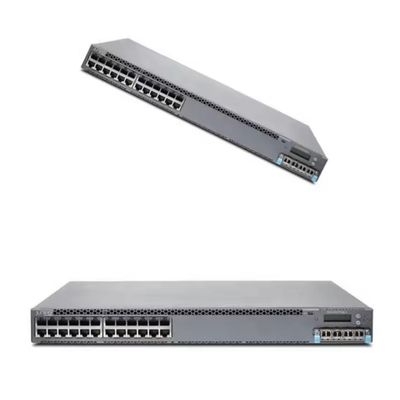

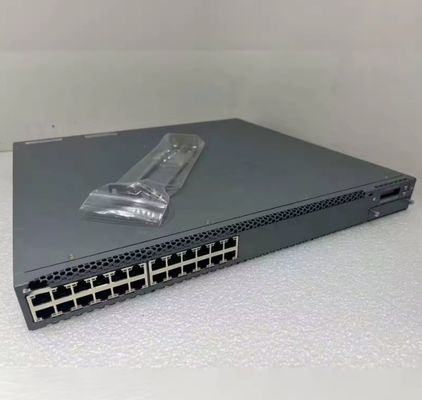

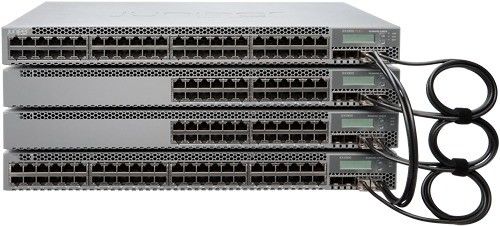

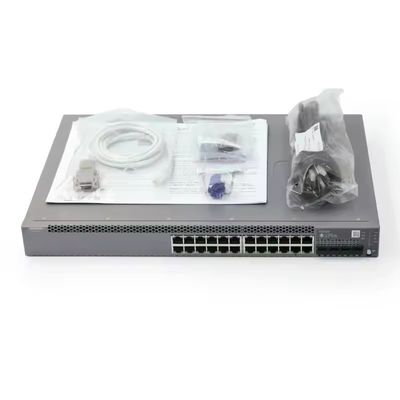

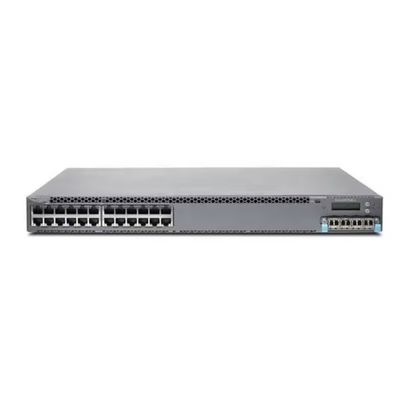

Product Images
Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication 0 Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication 1 Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication 2 Customized EX4300-24P Network Switch Enterprise-class Poe Internet Equipment with Full-Duplex Half-Duplex Communication 3
Enterprise Networking Solution

The EX4300-24P is a high-performance, enterprise-class network switch with Power over Ethernet (PoE) capability. Its customizable size and color options make it suitable for various deployment scenarios, from workstations to data centers. The switch supports advanced features including LACP for link aggregation, QoS for traffic prioritization, and SNMP for network management.

Additional Specifications
IPv4 Routing Capacity 32,000 unicast / 8,000 multicast routes
IPv6 Routing Capacity 18,000 unicast / 4,000 multicast routes
ARP Entry Capacity 64,000
Suitable For Workstations, laptops, desktops, and enterprise network infrastructure
