Features

Specifications

Private Mold: NO

Products Status: Stock

Ports: ≥ 48

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: /

Brand Name: /

Model Number: IE-3200-8P2S-E

Place Of Origin: Shanghai, China

Size: Customized Size

Color: Customizable

Suitable For: Workstation, Laptop, Desktop

Highlight:

Managed Network Switch

PoE Network Switch

Basic Infomation

Payment & Shipping Terms

Gallery

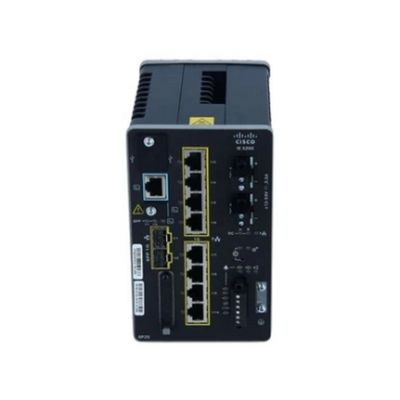

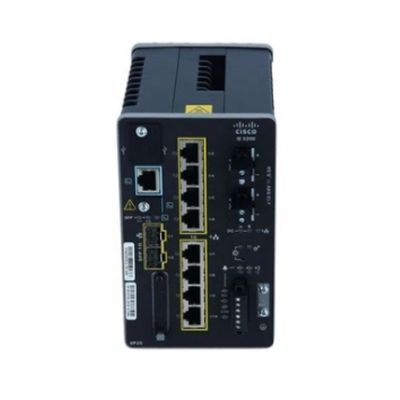

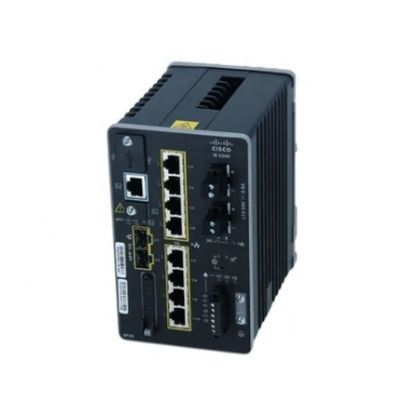

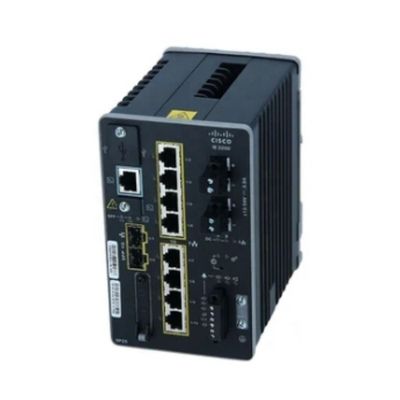

New Original IE-3200-8P2S-E Network Switch Managed 8 X 10/100/1000 (PoE+) + 2 X Gigabit SFP DIN Rail Mountable PoE

Product Description

New Original IE-3200-8P2S-E Network Switch Managed 8 X 10/100/1000 (PoE+) + 2 X Gigabit SFP DIN Rail Mountable PoE

Product Attributes

Technical Specifications

DRAM	2 GB
Flash Memory	1.5 GB
PoE Power Budget	240W
Removable Storage	USB (Optional), SD card (Optional)
Alarms	2 alarms in, 1 alarm out
Console Ports	1 RS-232 (via RJ-45), 1 USB Mini Type B
Power Inputs	Dual DC power inputs
Number of Queues	8
Forwarding Rate	Line rate for all ports and all packet sizes
Unicast MAC Addresses	8000
Jumbo Frames	8996 bytes
No. of VLANs	256
Internet Group Management Protocol (IGMP) Multicast Groups	1000
Spanning Tree Protocol (STP) Instances	128
Access Control Entries (PACL/VACL/RACL)	3000
SD Card Capacity (Optional)	4 GB
Input Voltage Range	Redundant DC input voltage: 9.6 to 60VDC 48VDC is required for PoE and 54VDC is required for PoE+
Maximum Input Current	5.5A
Power Consumption	32W
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours)
