Home /Products/Network Storage/for Synology DiskStation DS1522+ 3.5" SATA HDD

for Synology DiskStation DS1522+ 3.5" SATA HDD

CN¥7,272.70/pieces 1-199 pieces

Price

for Synology DiskStation DS1522+ 3.5" SATA HDD

Features Gallery Product Description Request A Quote

Features

Specifications

Private Mold: Yes

Products Status: Stock

Type: Tower

Processor Type: Server Storage

Brand Name: For Synology

Model Number: DS1522+

Place Of Origin: Shanghai, China

Model: DS1522+

Warranty: 1 Year

MOQ: 1 Piece

Highlight:

synology network storage

,

synology network attached storage

,

diskstation network storage

Basic Infomation

Payment & Shipping Terms

Gallery

for Synology DiskStation DS1522+ 3.5" SATA HDD

Product Description

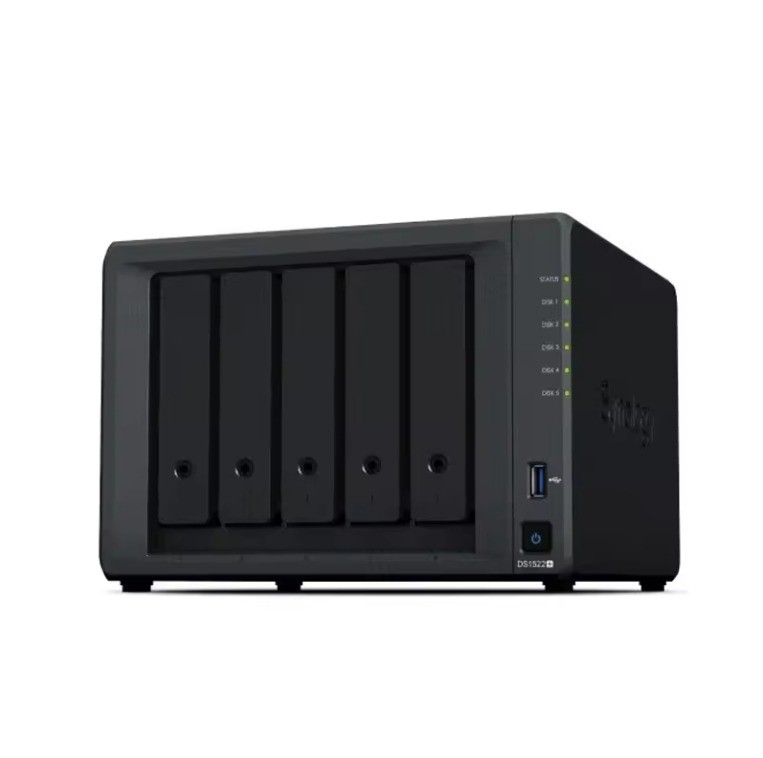

Synology DiskStation DS1522+ 3.5" SATA HDD

Product Specifications

Attribute	Value
Private Mold	Yes
Availability	In Stock
Type	Tower
Processor Type	Server Storage
Brand	for Synology
Model Number	DS1522+
Origin	Shanghai, China
Warranty	1 Year
Minimum Order Quantity	1 Piece

Network Attached Storage Overview

Model: DS1522+
Type: Network Attached Storage (NAS) Server
Manufacturer: Synology Inc.

Hardware Specifications

Processor: AMD Ryzen R1600, 2-core 2.6 GHz (base) / 3.1 GHz (burst), 64-bit with AES-NI encryption
Memory: 8 GB DDR4 ECC SODIMM (expandable to 32 GB)
Drive Bays: 5 (expandable to 15 with DX517 units), supports 3.5"/2.5" SATA drives
M.2 Slots: 2 NVMe 2280 for cache/storage
Dimensions: 166 × 230 × 223 mm (6.5 × 9.1 × 8.8 in)
Weight: 2.7 kg (5.95 lbs)
Cooling: Dual 92mm fans with multiple speed modes

Network & Connectivity

Ethernet: 4 × 1GbE RJ-45 ports with link aggregation
Expansion: Supports 10GbE module (E10G22-T1-Mini)
eSATA: 2 ports
USB: 2 × USB 3.2 Gen 1 ports
Protocols: Comprehensive support including SMB, NFS, iSCSI, HTTP/S, FTP

Performance Features

Speed: Up to 736/796 MB/s read/write with 10GbE
File Systems: BTRFS, EXT4, FAT, HFS+, NTFS, EXFAT
RAID Support: 0, 1, 5, 6, 10, JBOD with online migration

Environmental Specifications

Operating Temp: 0 - 40 °C (32 - 104 °F)
Humidity: 5 - 95% RH
Storage Temp: -20 - 60 °C (-4 - 140 °F)

Power Requirements

Typical Consumption: 52.06 W
Standby Consumption: 16.71 W
Input Voltage: 100 - 240 V AC, 50 - 60 Hz
PSU: External 120 W power supply

Software & Management

OS: DiskStation Manager (DSM) with advanced features
Management: Web-based with SNMP, ACL, multilingual support
User Capacity: Supports up to 2048 users
Noise Level: 22.9 dB

for Synology DiskStation DS1522+ 3.5" SATA HDD 0

for Synology DiskStation DS1522+ 3.5" SATA HDD 1

for Synology DiskStation DS1522+ 3.5" SATA HDD 2

for Synology DiskStation DS1522+ 3.5" SATA HDD 3

for Synology DiskStation DS1522+ 3.5" SATA HDD 4

for Synology DiskStation DS1522+ 3.5" SATA HDD 5

for Synology DiskStation DS1522+ 3.5" SATA HDD 6

Tag:

enterprise nas storage

nas data storage

Networking Storage
