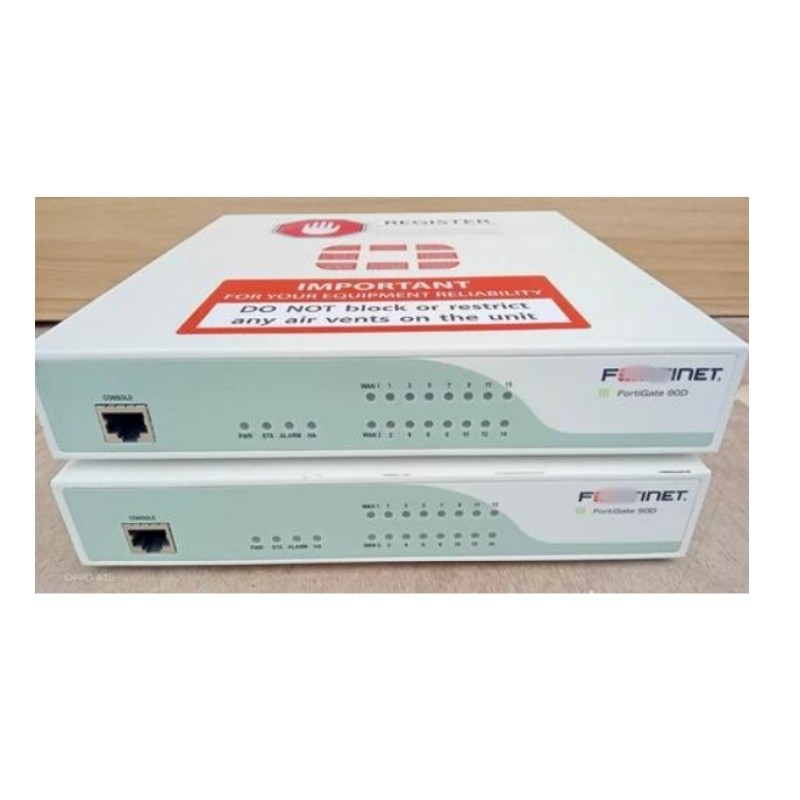

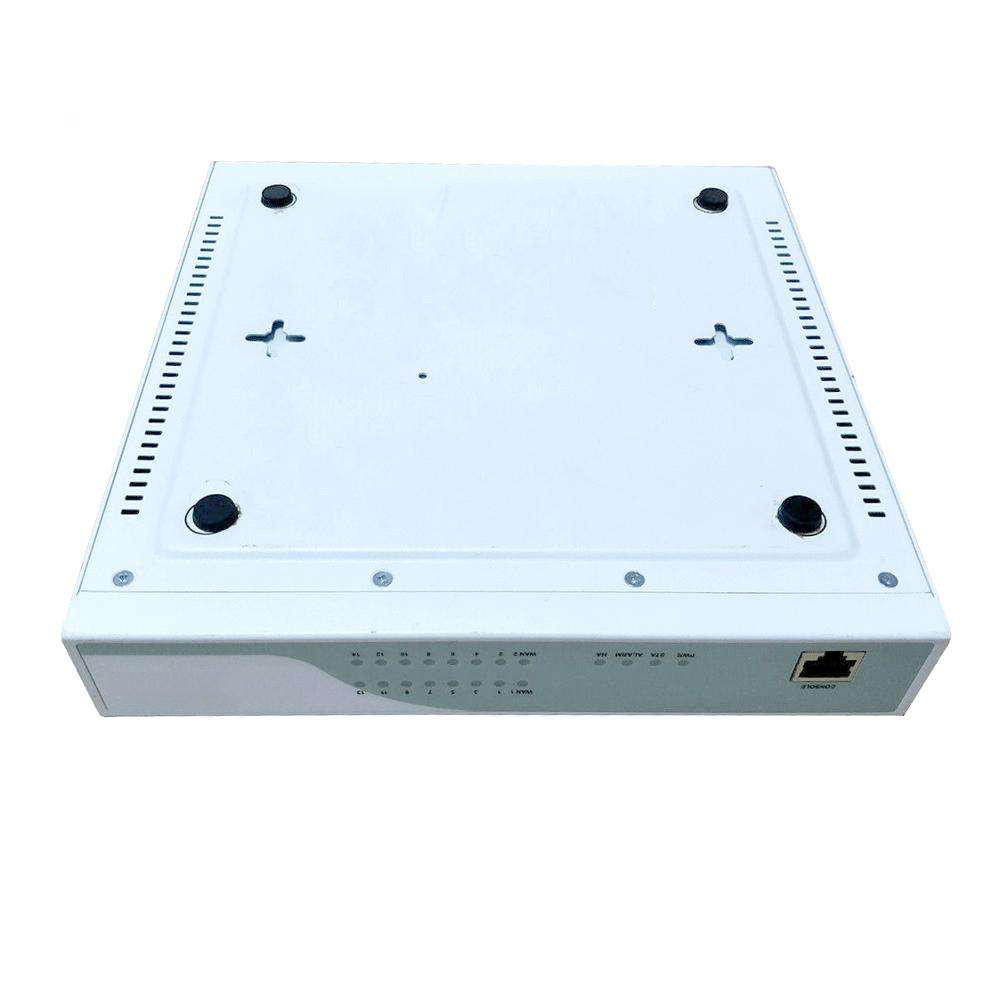

New Original FortiGate-90D 16xGE-RJ45 Security Appliance Firewall FG-90D

Product Description

New Original FortiGate-90D 16xGE-RJ45 Security Appliance Firewall FG-90D

Product Specifications

Attribute	Value
Product Status	Stock
Type	Wired & Wireless
VPN Support	Yes
Model Number	FortiGate-90D
Place of Origin	Shanghai, China
Size	44233223mm
Color	Customizable
MOQ	1PCS
Warranty	1 year
Lead Time	1-3 Working Days
Package	Original Packaging

Technical Details

General Information

Device Type: Enterprise-level Firewall
Model: FortiGate-90D

Performance Specifications

Throughput: 3.5 Gbps (for 1518-byte, 512-byte, and 64-byte packet sizes)
Firewall Throughput: 5.3 Mpps
VPN Throughput: 1 Gbps (IPsec), 35 Mbps (SSL)
IPS Throughput: 275 Mbps
Antivirus Throughput: 65 Mbps, 35 Mbps (proxy)
Concurrent Connections: 2 Million
New Sessions per Second: 4000

User and Policy Specifications

User Limit: 200
Firewall Policies: 5000
Concurrent SSL VPN Users: 200
Virtual Domains: 10

Network Interfaces

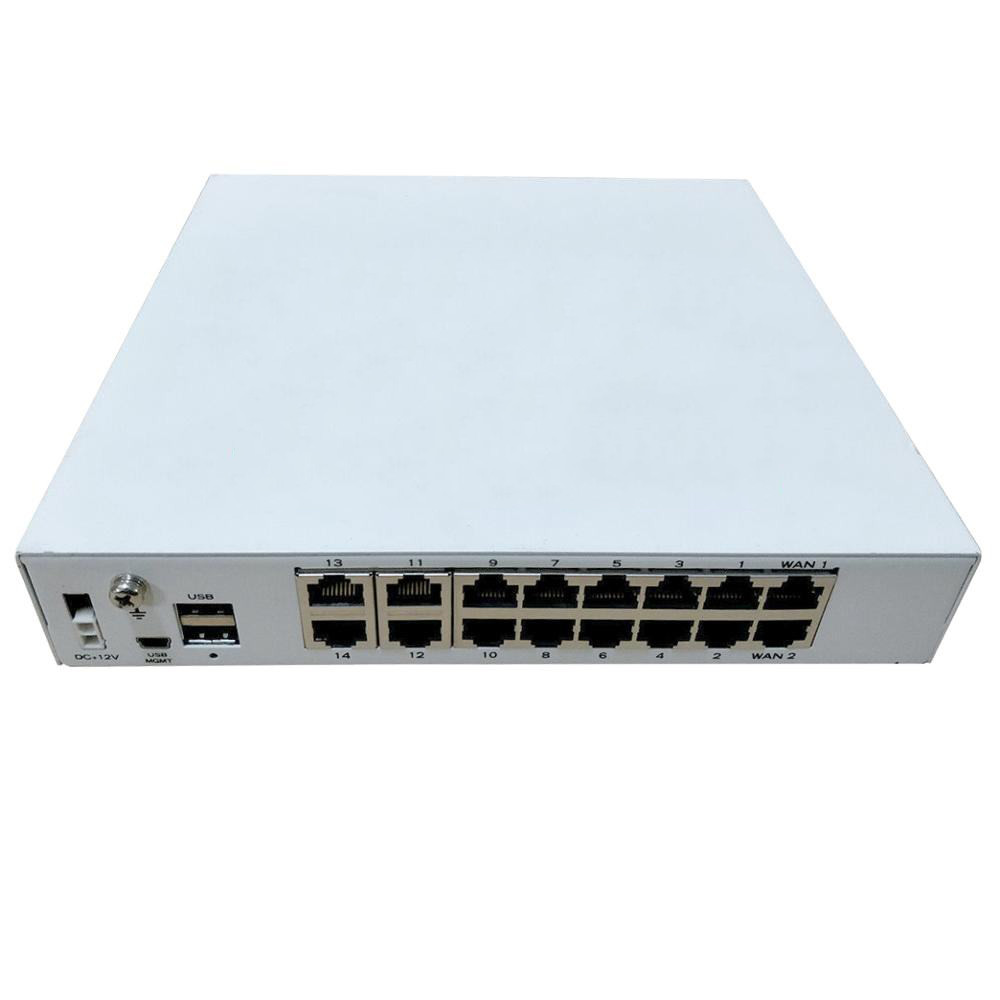

Ports: 1 Console port, 1 USB management port, 2 USB ports, 14 GE RJ45 switch ports, 2 GE RJ45 WAN ports

Hardware Specifications

Processor: Fortinet FortiSOC 2 (ARM v4l) @ 900 MHz
Memory: 2 GB (DDR3L) SDRAM
Storage: 8 GB (NAND) flash, 32 GB (SSD)

Physical Characteristics

Dimensions: 4.4 cm (height) × 23.3 cm (width) × 22.3 cm (depth)
Weight: 1.6 kg

Power Specifications

Power Supply: AC 100-240V, 1.5-0.75A, 18.2-21.8W

Environmental Parameters

Operating Temperature: 0°C - 40°C
Storage Temperature: -35°C - 70°C
Humidity: 20% - 90% (non-condensing)

Compliance and Certification

Security Standards: FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN certified

Product Images
