FG-60F FortiGate-60F Fortinet Firewall Security Appliance Firewall

The FG-60F FortiGate-60F is a high-performance security appliance firewall from Fortinet, offering comprehensive network protection with advanced security features and flexible deployment options.

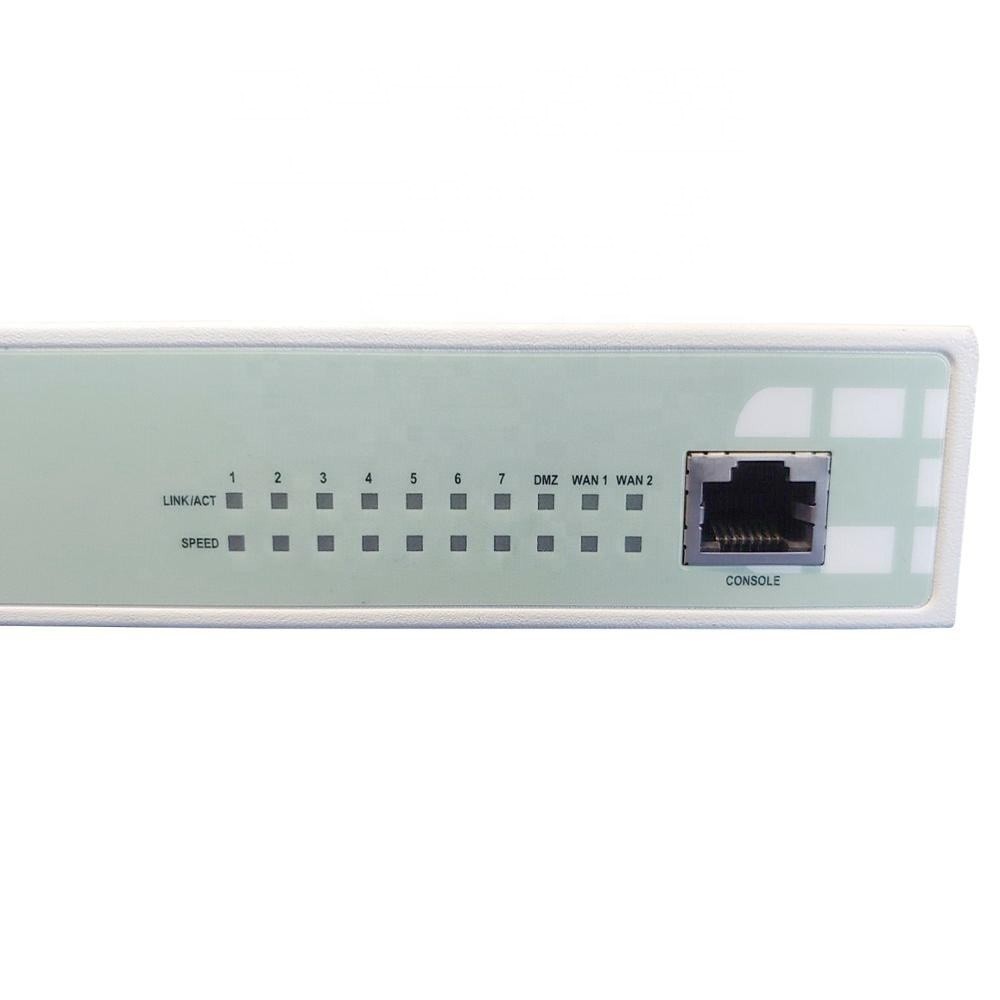

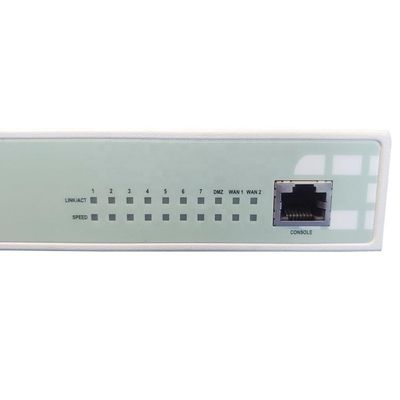

• Port Configuration:
  • 2 GE RJ45 WAN Ports
  • 1 GE RJ45 DMZ Port
  • 2 GE RJ45 FortiLink Ports
  • 5 GE RJ45 Internal Ports
  • 1 USB Port
  • 1 Console (RJ45) Port
• Form Factor: Desktop / Wall-mounted / 1U Rack-mounted
• Dimensions: 3.85 x 21.6 x 16 cm (H x W x L)
• Weight: 1.01 kg
• Power Specifications:
  • Input: AC 100-240V, 50-60Hz
  • Maximum Current: 115VAC/0.2A, 230VAC/0.1A
  • Power Consumption: 17.0W (Average), 18.5W (Maximum)
  • Heat Dissipation: 63.1 BTU/hr

• Throughput: 10/10/6 Gbps (1518/512/64 Byte UDP Packets)
• Latency: 4 μs (64 Byte UDP Packets)
• Throughput: 9 Mpps (Packets per Second)
• Concurrent Sessions: 700,000 (TCP)
• New Sessions/Second: 35,000 (TCP)
• Firewall Policies: 5,000

• IPsec VPN Throughput: 16.5 Gbps (512 Byte)
• Gateway-to-Gateway Tunnels: 200
• Client-to-Gateway Tunnels: 500
• SSL-VPN Throughput: 900 Mbps
• Concurrent SSL-VPN Users: 200 (Recommended Maximum)

• SSL Inspection Throughput: 3750 Mbps (IPS, Avg. https)
• SSL Inspection CPS: 3400 (IPS, Avg. https)
• SSL Inspection Concurrent Sessions: 355,000 (IPS, Avg. https)
• Application Control Throughput: 21.8 Gbps (http64k)

• Virtual Domains: 10 (Default/Maximum)
• Maximum FortiSwitches Supported: 16
• Maximum FortiAPs: 30 Total (10 Tunnel Mode)
• Maximum FortiTokens: 500
• Registered FortiClient Maximum: 200
• High Availability: Active/Active, Active/Passive, Clustering
• Operating Environment:
  • Temperature: 0-40°C (Operating), -35-70°C (Storage)
  • Humidity: 10-90% non-condensing
• Certifications: FCC, C-Tick, VCCI, CE, UL/cUL, CB, ICSA Labs (Firewall, IPsec, IPS, Antivirus, SSL-VPN)
