Indoor Wireless AP Wi-Fi 6 wall plate access point 5761S-10W of superior quality

CN¥2,872.72/units 1-49 units
Price
Indoor Wireless AP Wi-Fi 6 wall plate access point 5761S-10W of superior quality
Features Gallery Product Description Request A Quote
Features
Specifications
Chipset: Access Point
Application: Access Point
Highlight:

wireless point to point bridge
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: 5761S-10W
Payment & Shipping Terms
Product Description
Indoor Wireless AP Wi-Fi 6 Wall Plate Access Point 5761S-10W
Product Attributes
Chipset Access point
Application Access point
Product Description

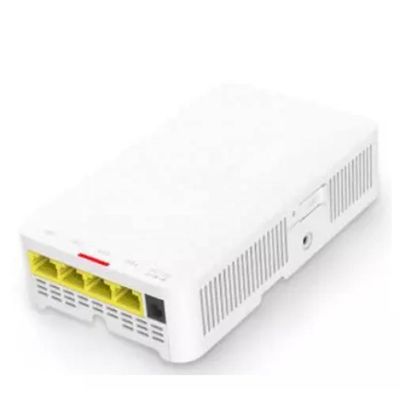

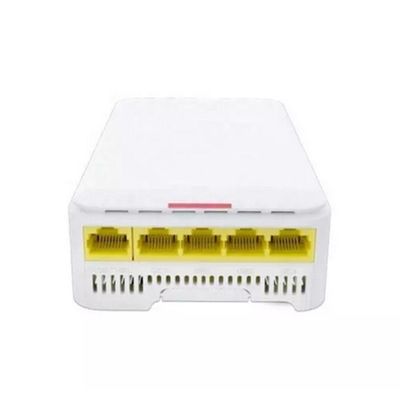

Front view of 5761S-10W wall plate access point Side view of 5761S-10W access point Top view of 5761S-10W access point Installation view of 5761S-10W access point
Specifications
Dimensions (diameter × height)
160mm x 86mm x 34mm
Power input
DC: 12V±10%
PoE power supply: meet 802.3af/at Ethernet power supply standard
Maximum power consumption
12.4W
Note: The actual maximum power consumption varies according to the laws and regulations of different countries and regions.
Maximum number of users
≤512
Note: There are differences in the actual number of users in different use environments.
Working temperature
0℃ ~ +40℃
Antenna type
Built-in dual-frequency combined antenna
MIMO: spatial stream
2.4GHz: 2×2:2, 5GHz: 2×2:2
Wireless protocol
802.11a/b/g/n/ac/ac wave2/ax
Maximum rate
1.77Gbps
Technical diagram of 5761S-10W access point Close-up of 5761S-10W ports 5761S-10W access point in operation 5761S-10W access point LED indicators 5761S-10W access point side view 5761S-10W access point installation diagram 5761S-10W access point packaging
Tag:

wireless ap antenna

wifi bridge ap

Indoor Access Point
