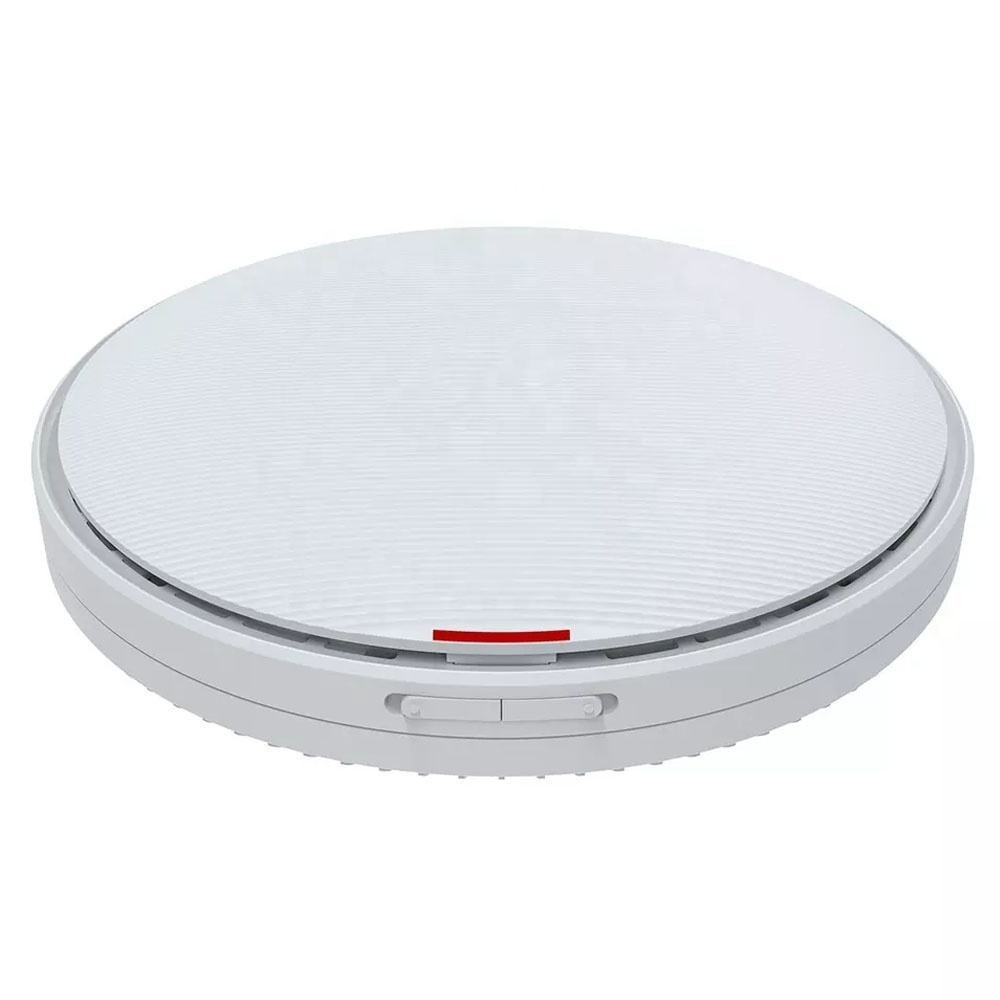

Name: 5G Wifi 6 Wireless AP AirEngine 5760-51 Indoor Wireless Access Point
Brand: Shanghai Apying Technology Co., Ltd.
SKU: AirEngine 5760-51
Price: 1.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Chipset: Access Point

Application: Access Point

Highlight:

5g wireless ap bridge

5g point to point bridge

wireless point to point bridge

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: /

Model Number: AirEngine 5760-51

Payment & Shipping Terms

Gallery

5G Wifi 6 Wireless AP AirEngine 5760-51 Indoor Wireless Access Point

Product Description

5G WiFi 6 Wireless AP AirEngine 5760-51 Indoor Wireless Access Point

Product Overview

Key Attributes

Chipset	Access Point
Application	Access Point

Technical Specifications

Dimensions (Diameter x Height)	220 mm x 50 mm
Power Input	DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users	≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment.

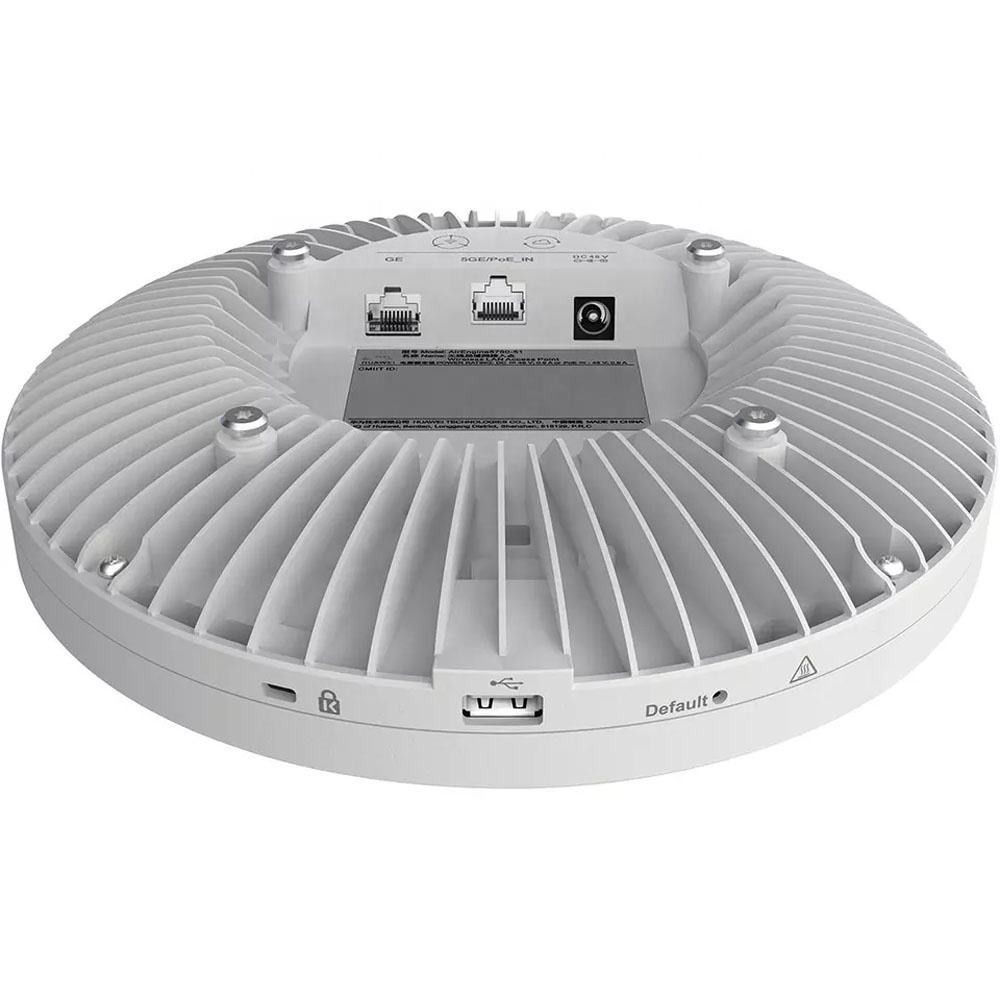

Port	1 x 5 GE and 1 x GE electrical

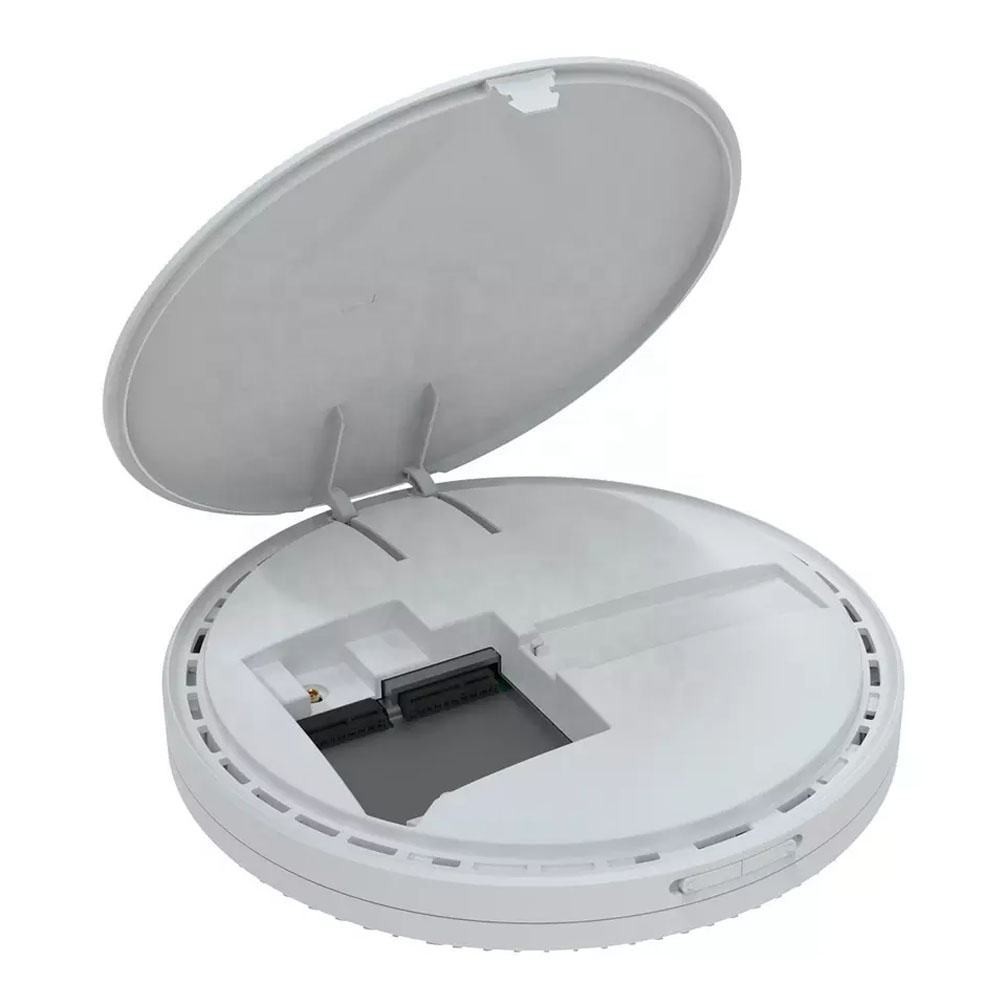

IoT	Built-in IoT slots
Operating Temperature	-10°C to 50°C
Antenna Type	Built-in Smart Antennas
MIMO: Spatial Streams	Basic capability: 2.4 GHz: 2x2:2; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2/ax
Maximum Data Rate	Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s
