Name: access point AP8082DN 802.11ac Wave 2 outdoor Access Points
Brand: Shanghai Apying Technology Co., Ltd.
SKU: AP8082DN
Price: 2.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Chipset: Access Point

Application: Access Point

Highlight:

outdoor wireless ap bridge

outdoor point to point bridge

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: /

Model Number: AP8082DN

Payment & Shipping Terms

Gallery

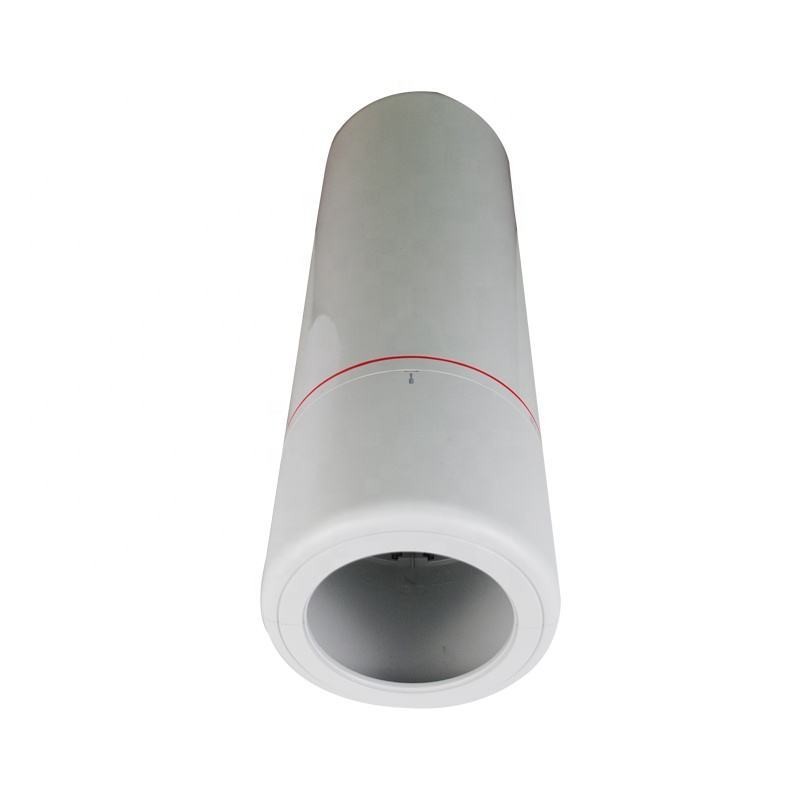

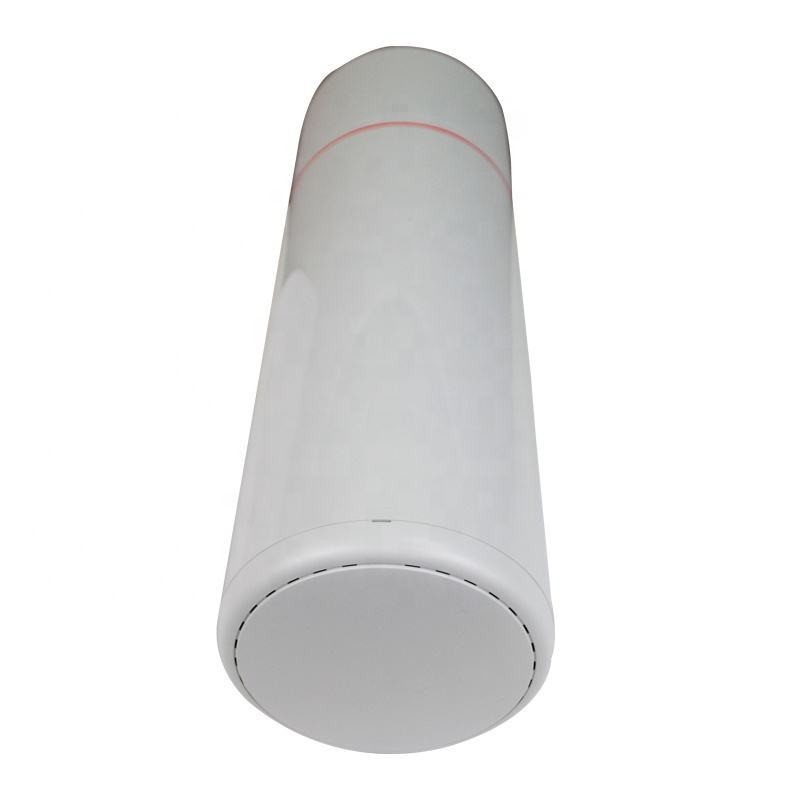

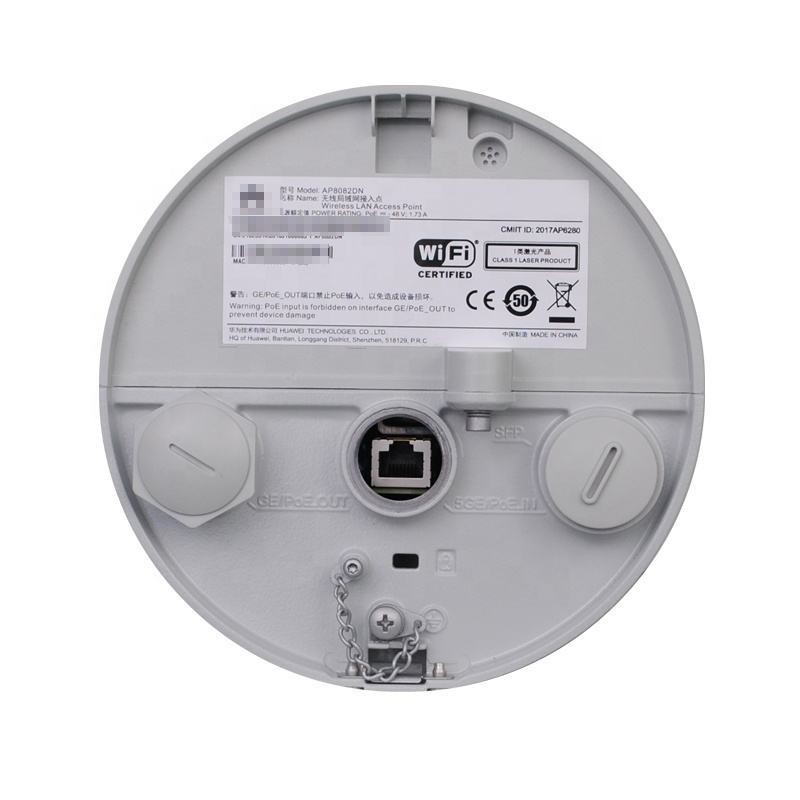

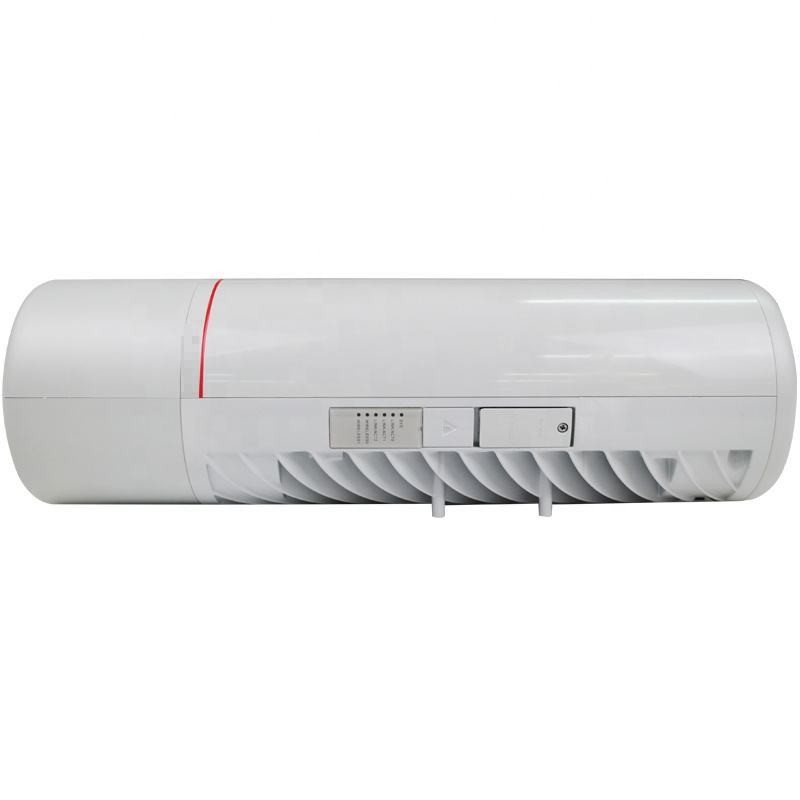

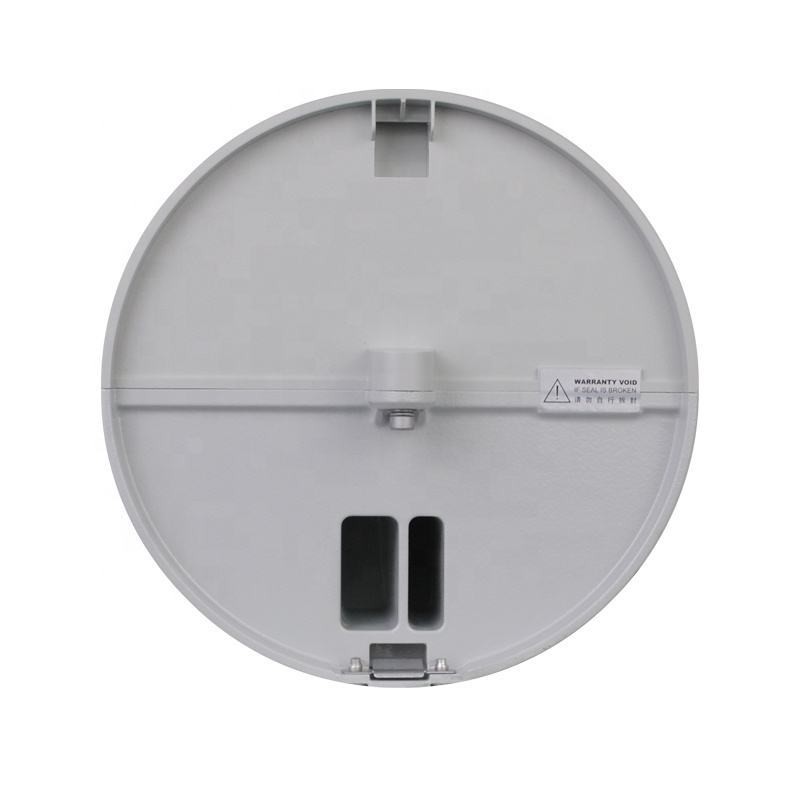

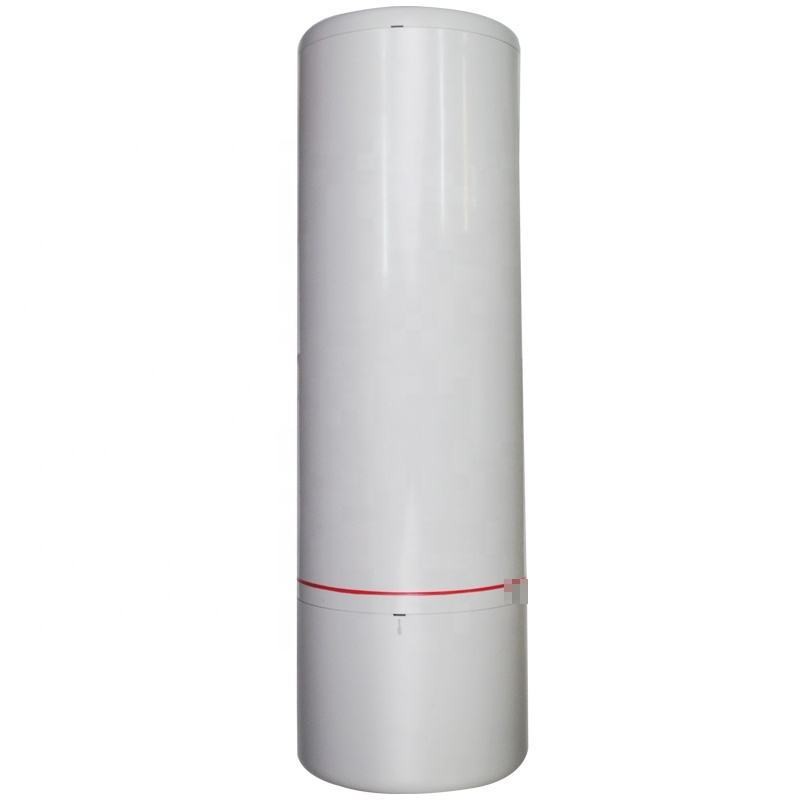

access point AP8082DN 802.11ac Wave 2 outdoor Access Points

Product Description

AP8082DN 802.11ac Wave 2 Outdoor Access Point

Product Overview

High-performance outdoor access point featuring 802.11ac Wave 2 technology for reliable wireless connectivity in demanding environments.

Key Attributes

Chipset	Access Point
Application	Outdoor Wireless Networking

Technical Specifications

Dimensions (Length x Diameter)	387 mm x φ165 mm
Power Input	PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input
Maximum Power Consumption	802.3bt power supply: 45W (excluding the output power of the PoE OUT port) 802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive) The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, the radio power is reduced, and the 2.4 GHz radio frequency works in 2 x 4 MIMO mode
Operating Temperature	-40°C to 65°C
Antenna Type	Built-in directional antennas (horizontal 60°, vertical 30°)
Maximum Number of Concurrent Users	≤ 512
Maximum Transmit Power	2.4G: 29 dBm (combined power) 5G: 28 dBm (combined power) The actual transmit power depends on local laws and regulations
MIMO: Spatial Streams	4 x 4:4
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2
Maximum Rate	2.53 Gbit/s
