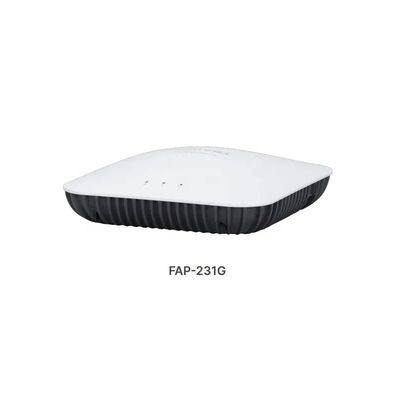

New Original Fortinet Security Indoor Wireless Access Point AP FAP-231G

Product Description

New Original Fortinet Security Indoor Wireless Access Point AP FAP-231G

Product Specifications

Technical Features

Model Number	FAP-231G
Radio 1 Capabilities	Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service
Radio 2 Capabilities	Frequency band: 5.0GHz Channel width: 20/40/80/80+80MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service
Radio 3 Capabilities	Frequency band: 2.4GHz, 5.0GHz, and 6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service and Scanning
Maximum Data Rate	Radio 1: up to 574 Mbps Radio 2: up to 1201 Mbps Radio 3: Up to 2401 Mbps
Bluetooth Low Energy Radio	Bluetooth scanning and iBeacon advertisement @10 dBm max TX power
Interfaces	1 100/1000/2500 Base-T RJ45 1 10/100/1000 Base-T RJ45 1x Type 3.0 USB 1 RS-232 RJ45 Serial Port
Power over Ethernet (PoE)	1 x 802.3at PoE default
Simultaneous SSIDs	Up to 24
Antenna Type	AirEngine 6761-21: Built-in Dynamic-Zoom Smart Antennas AirEngine 6761-21E: External antennas
MIMO:Spatial Streams	2.4 GHz: 4 x 4:4 5 GHz: 4 x 4:4
Radio Protocols	802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate	3.55 Gbit/s
