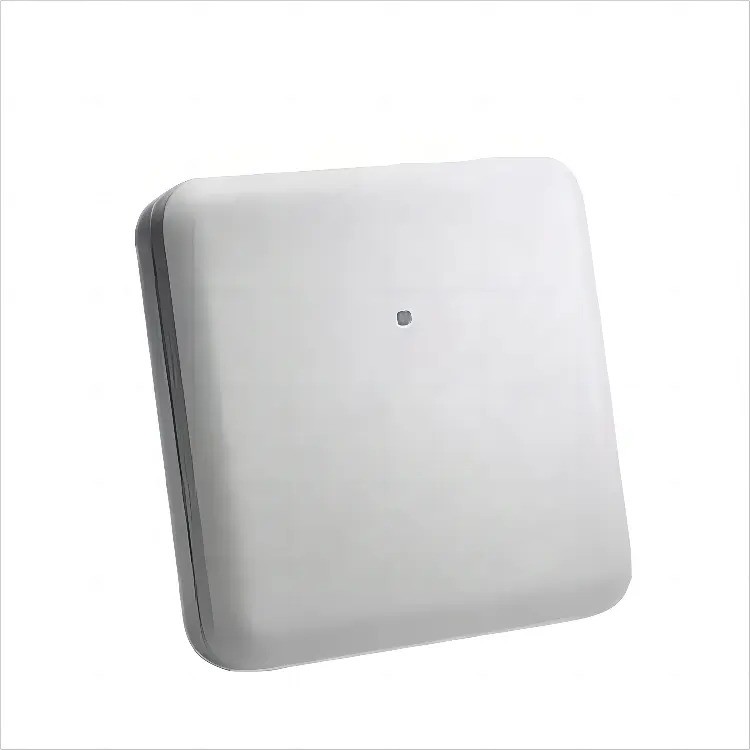

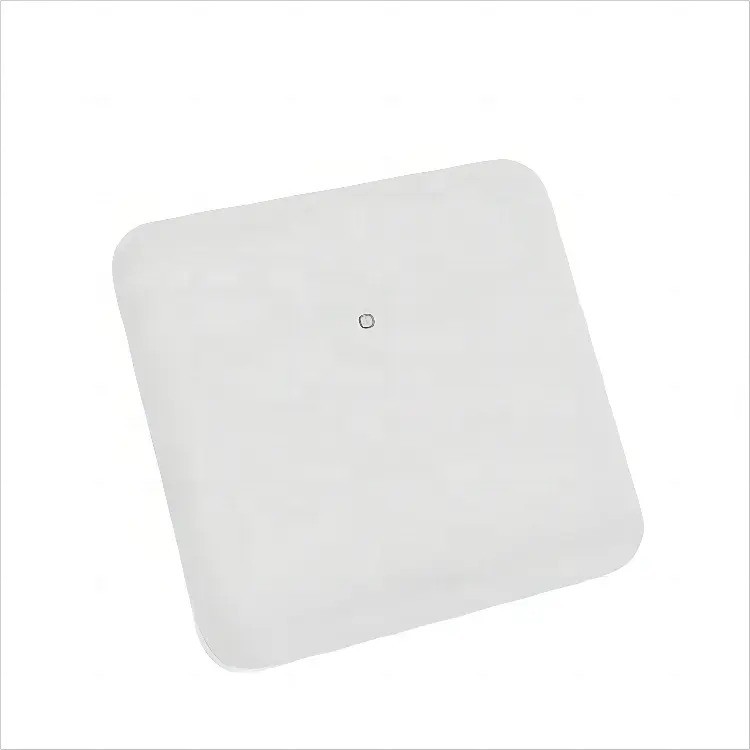

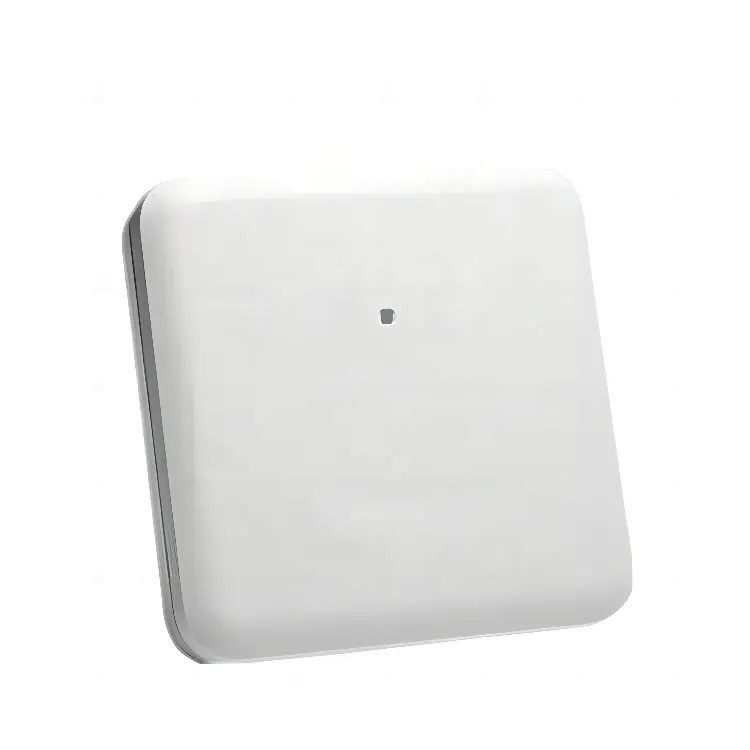

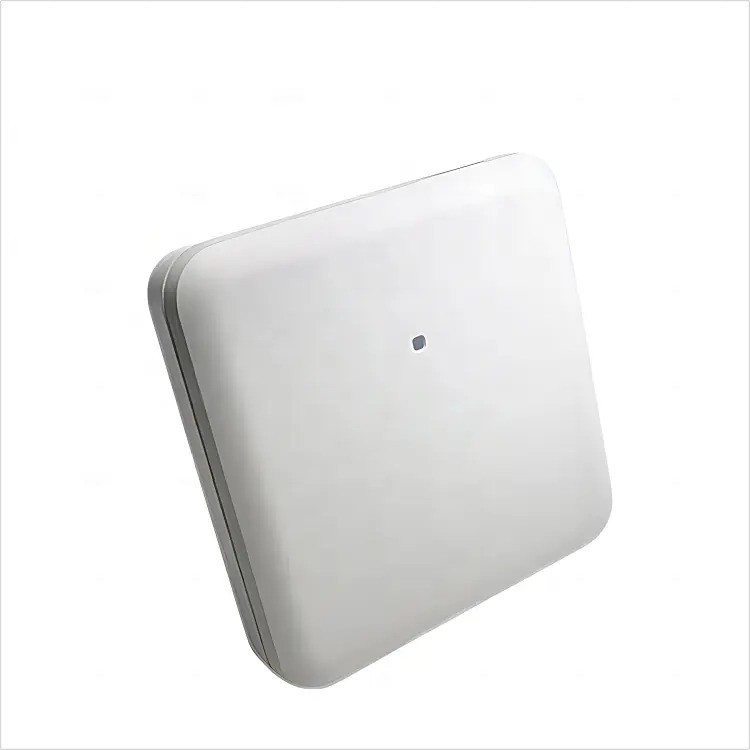

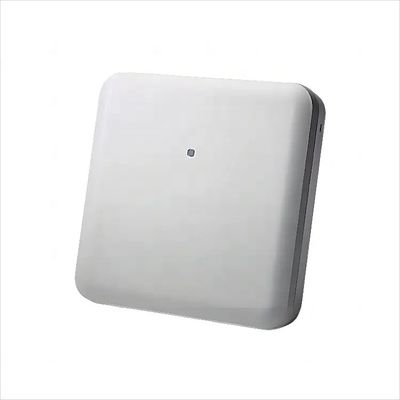

Customized High Performance Wireless Access Point AP AIR-AP3802E-H-K9

Product Description

Customized High Performance Wireless Access Point AP AIR-AP3802E-H-K9

Product Overview

Technical Specifications

Product Code	AIR-AP3802E-H-K9
Antennas	External Antennas
Permit Antenna Gains	Up to 6 dBi
Interfaces	2 Ethernet ports 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) CAT 5e cabling Higher-quality 10GBASE-T (CAT 6/6a) cabling 100/1000BASE-T autosensing (RJ-45 - AUX port) Management console port (RJ-45)
Features	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Regulatory Domain	H (H regulatory domain): 2.412 to 2.472 GHz; 13 channels 5.150 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels
System	1024 MB DRAM 256 MB flash
Dimensions (W × L × H)	8.66 × 8.68 × 2.62 in. (22 × 22 × 6.7 cm)
Net Weight	4.6 lb (2.09 kg)
Power Supply	PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption	9W
Max TX Power	22 dBm
BSSID	Up to Four per Radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Pole (Pole Kit Included)
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
