Customized C9120AXI-E 9120AX Series Access Point Wi Fi 6 Wireless Access Point AP

Product Description

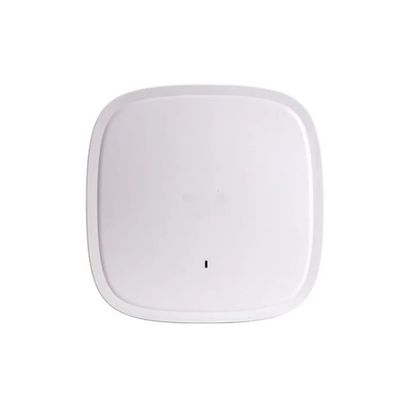

Customized C9120AXI-E 9120AX Series Access Point Wi-Fi 6 Wireless Access Point AP

Product Attributes

Attribute	Value
Private Mold	NO
Products Status	Stock, Used
Brand Name	/
Place of Origin	Shanghai, China
Product Name	C9120AXI-E
Size	Customized Size
Color	Customizable

Technical Specifications

Model Number	C9120AXI-E
Description	Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain
Software	Unified Wireless Network Software Release 8.9.x or later IOS ® XE Software Release 16.11 with AP Device Pack, or later
Supported Wireless LAN Controllers	Catalyst 9800 Series Wireless Controllers 3500, 5520, and 8540 Series Wireless Controllers and Virtual Wireless Controller
802.11n Version 2.0 Capabilities	4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps Packet aggregation: A-MPDU, A-MSDU 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
802.11ac Features	4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps Packet aggregation: A-MPDU, A-MSDU 802.11 DFS CSD support
802.11ax Features	4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps Packet aggregation: A-MPDU, A-MSDU 802.11 DFS CSD support
Integrated Antenna	Flexible radio (2.4GHz or 5GHz) 2.4 GHz: 4 dBi peak gain, omnidirectional 5 GHz: 5 dBi peak gain, omnidirectional Dedicated 5GHz radio: 4 dBi peak gain, omnidirectional
Power Method	802.3af PoE
Power Supply	PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption	9W
Max TX Power	22 dBm
BSSID	Up to Four per Radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Pole (Pole Kit Included)
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
