Home /Products/Network Module/Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi

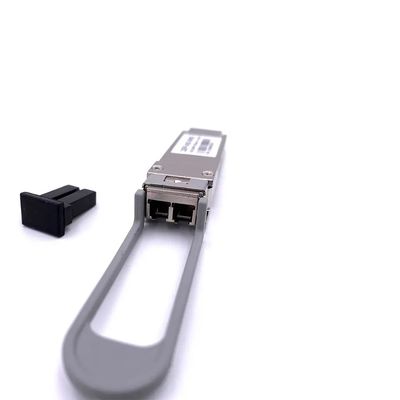

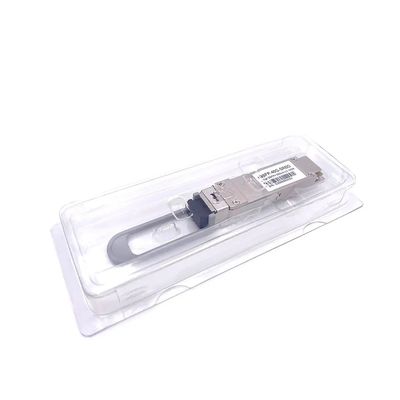

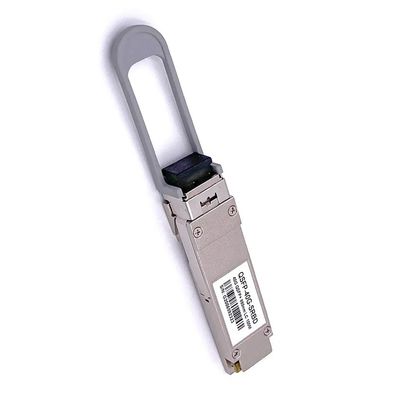

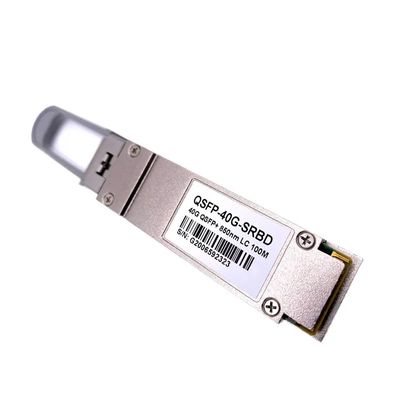

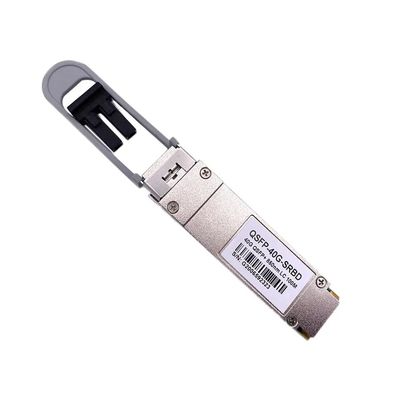

Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi

CN¥180.51/pieces 1-99 pieces
Price
Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock, Used
Brand Name: /
Place Of Origin: Shanghai, China
Product Name: Qsfp-40g-sr-bd
Size: Customized Size
Color: Customizable
Highlight:

private mold network module

,

private mold transceiver module
Basic Infomation
Payment & Shipping Terms
Product Description
Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi
Product Attributes
Private Mold NO
Products Status Stock, Used
Brand Name /
Place of Origin Shanghai, China
Product Name Qsfp-40g-sr-bd
Size Customized Size
Color Customizable
Product Description

The QSFP-40G-SR-BD is a high-performance 40GBASE-SR Bi-Directional QSFP Module designed for duplex multimode fiber applications. This customizable transceiver offers reliable data transmission with flexible configuration options.

Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 0 Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 1 Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 2 Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 3 Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 4 Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 5 Customizable QSFP Transceiver Module 40Gbase-Bidi LC Multi-mode Private Mold NO Customizable 40Gbase-Bidi 6
Technical Specifications
Product Code QSFP-40G-SR-BD=
Description 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF
Dimensions 13.5 x 18.4 x 72.4 mm
Wavelength (nm) 832 - 918
Cable Type MMF
Core Size (microns) 50.0
Modal Bandwidth (MHz-km) 500 (OM2), 2000 (OM3), 4700 (OM4)
Cable Distance 30m, 100m, 150m
Power Consumption (W) 3.5
Pull Tab Color Gray
Condition New
Model CVR-4SFP10G-QSFP=
Tested Ambient Temperature -40°C to 70°C
Time of Delivery Within 3 working days
Package 10pc/anti-static box
Key Features
  • Bi-directional 40G QSFP+ transceiver for duplex multimode fiber
  • Customizable size and color options available
  • Supports data rates up to 40Gbps
  • Low power consumption (3.5W typical)
  • Wide operating temperature range (-40°C to 70°C)
  • Compatible with standard QSFP+ ports
  • Compact form factor (13.5 x 18.4 x 72.4 mm)
  • Packaged in anti-static boxes (10 pieces per box)
