802.3at 150W Power Supply Module AIR PWRINJ6 Injector For Aironet Access Points

2 pieces
MOQ
CN¥872.73/pieces 2-19 pieces
Price
802.3at 150W Power Supply Module AIR PWRINJ6 Injector For Aironet Access Points
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: NO
Products Status: Stock
Application: Desktop, Server
Rating Power: < 150W
Interface Type: 20 + 4Pin
Brand Name: /
Place Of Origin: Beijing, China
Product Name: Power Supply
Condition: 100% Original
Warranty: 1 Year
MOQ: 1 Piece
Application: Server, Desktop
Shipping: DHL/UPS/FEDEX
Lead Time: 3~7 Days
Highlight:

802.3at Power Supply Module

,

150W Power Supply Module

,

AIR PWRINJ6
Basic Infomation
Model Number: AIR-PWRINJ6
Payment & Shipping Terms
Product Description
802.3at 150W Power Supply Module AIR PWRINJ6 Injector For Aironet Access Points
Product Attributes
Attribute Value
Private Mold NO
Products Status Stock
Application Desktop, Server
Rating Power < 150W
Interface Type 20 + 4Pin
Place of Origin Beijing, China
Product Name Power Supply
Condition 100% Original
Warranty 1 year
MOQ 1 Piece
Shipping DHL/UPS/FEDEX
Lead Time 3~7 Days
Product Description

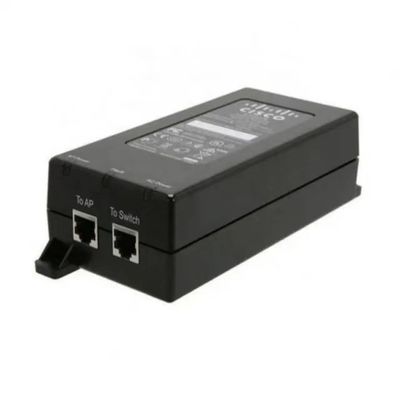

New Original AIR-PWRINJ6 Power Injector (802.3at) for Aironet Access Points

802.3at 150W Power Supply Module AIR PWRINJ6 Injector For Aironet Access Points 0 802.3at 150W Power Supply Module AIR PWRINJ6 Injector For Aironet Access Points 1
Specifications
Dimensions (W, H, L) 65 mm x 36 mm x 140 mm
Data Rates 10/100/100 Mbps
PoE Output Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
Output Power Voltage: 55V DC
User Port Power 30 Watts
Input Power Requirements AC Input Voltage: 100 to 240V AC
AC Input Current: 0.67 A @ 100 - 240 V AC
AC Frequency: 50 to 60 Hz
Weight Model 1: 0.44 lbs (200 g)
Model 2: 0.47 lbs (215 g)
Connectors Shielded RJ-45, EIA 568A and 568B
Environmental Conditions Operating Ambient Temperature:
-4ºF to 104ºF (-20ºC to 40ºC) at 30 W
-4ºF to 122ºF (-20ºC to 50ºC) at 25 W
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC)
Reliability MTBF: 100,000 hrs @ 25ºC
Thermal Rating 20 BTU/Hr @ 240 V AC
Regulatory Compliance IEEE 802.3 at (PoE), China RoHS Compliant,
WEEE Compliant, CE Compliant
Electromagnetic Emission and Immunity FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity)
VCCI
Safety UL 60950-1
IEC/EN 60950-1
Stacking restrictions: Do not stack. Do not bundle the power injector and AC power.
