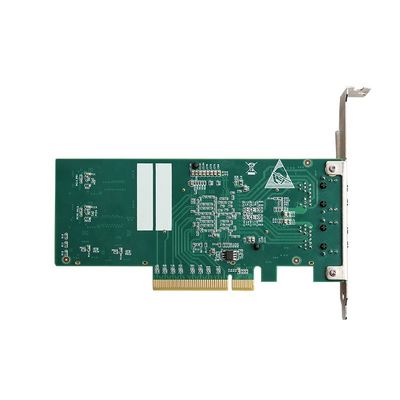

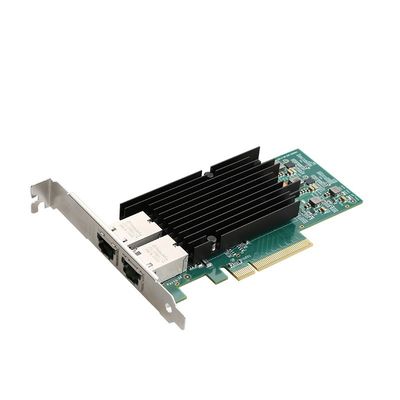

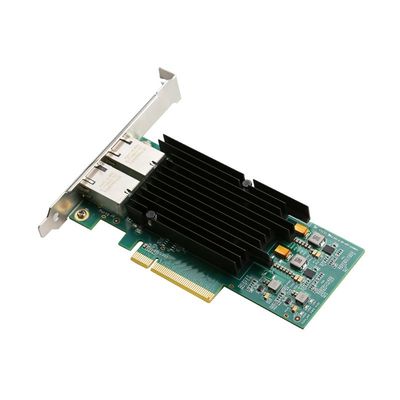

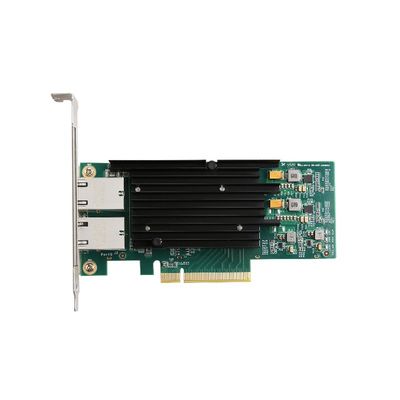

5G 1G 2 Port RJ45 Lan Card Multiple Network Speeds Sever 10Gbps Lan Card QOS

Product Description

5G 1G 2 Port RJ45 LAN Card - Multiple Network Speeds Server 10Gbps LAN Card with QOS

Product Overview

High-performance dual-port RJ45 LAN card supporting multiple network speeds (10Gbps/1Gbps/100Mbps) with Quality of Service (QOS) features for server and workstation applications.

Key Attributes

Private Mold	Yes
Availability	In Stock
Type	Wireless
Kind	External
Transmission Rate	10/100Mbps
Interface Type	USB3.0
Model Number	Network Cards
Origin	Shanghai, China
Size	Customized
Color	Customizable
Compatibility	Workstation, Laptop, Desktop

Technical Specifications

Hardware Bus Type	PCI Express 2.1 (8.0 GT/s)
Bus Width	x8 lane PCI Express, operable in x8 and x16 slots
Card Type	Standard/Low Profile
Chipset	Intel X540-AT2
Industry Standards	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Interface	2x RJ45
Power Consumption	10Gbps – 12.5W
System Requirements	PCI Express enabled computer with available PCI Express x8 slot Gen 2.0 or higher (x16)
OS Compatibility	Windows 7/8.x/10, Windows Server 2008 R2/2012/2016/2019, Linux 2.6.x to 4.x
Dimensions	120mm (H) × 158mm (L) × 22mm (W)
Weight	130g
LED Indicators	Link Speed LED (Green: 10Gbps; Amber: 1Gbps; Off: 100Mbps), Link/Act (Green)
Operating Temperature	5°C to 55°C (41°F to 131°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Humidity	20~80% RH
