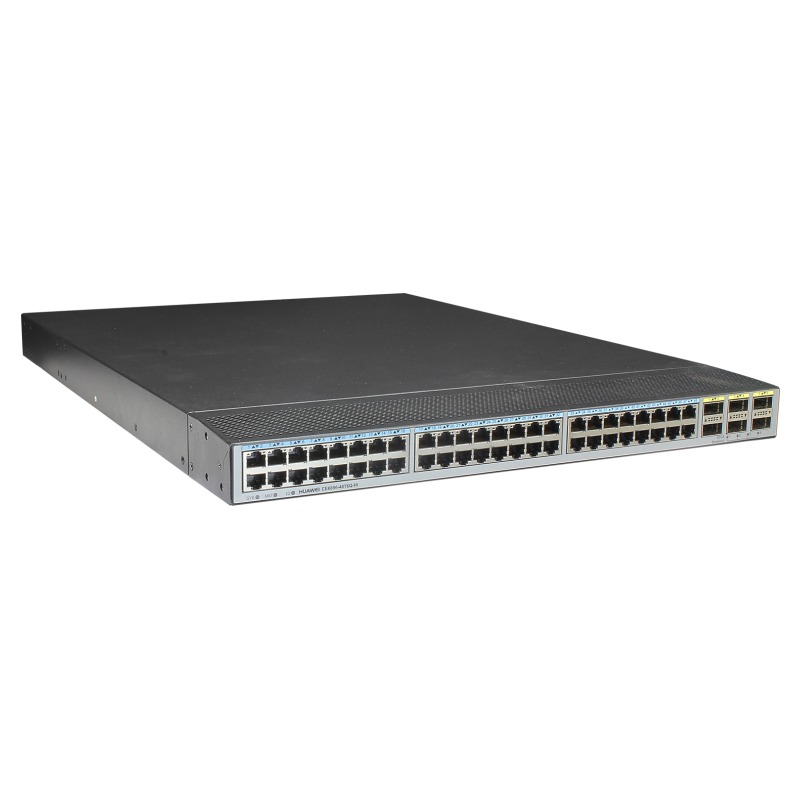

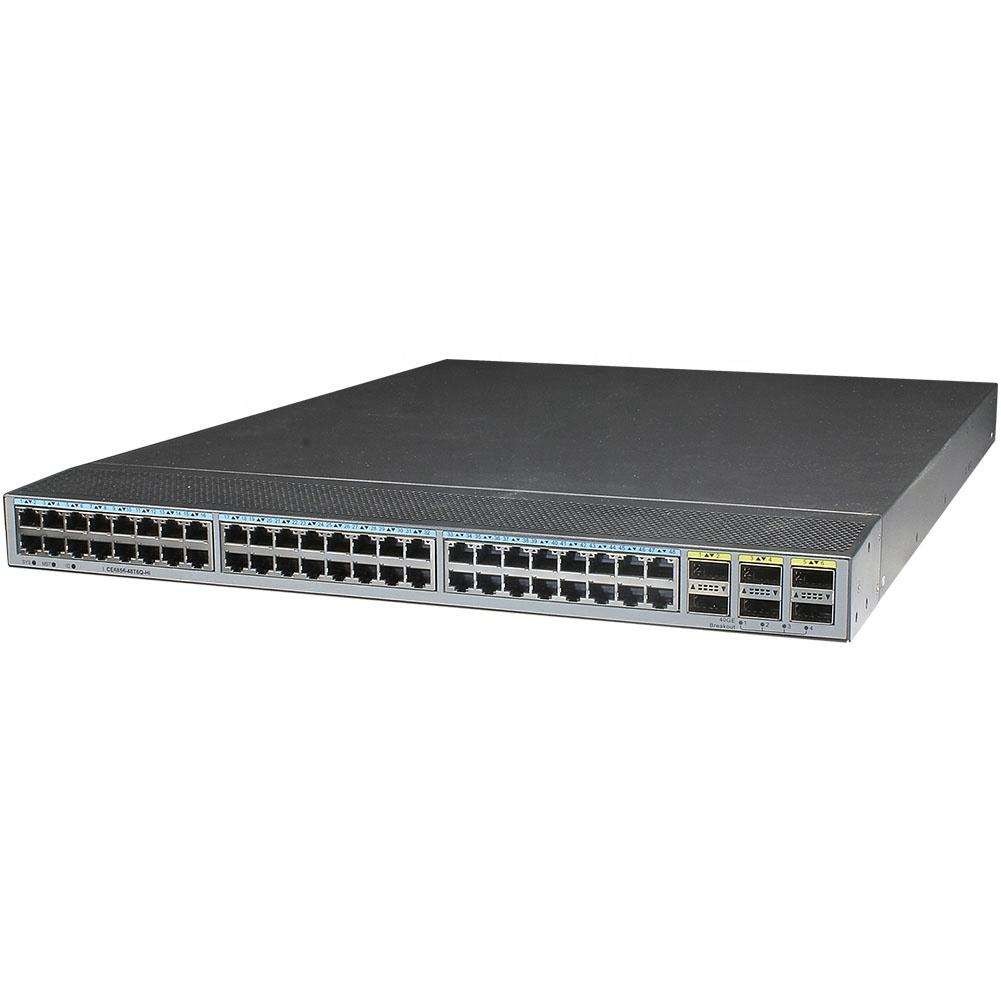

CE6800 Series CE6856-48T6Q-HI 48 10 Gigabit Optical Ports 6 40G Ports Data Center Network Switch
The CloudEngine 6850 (CE6850) series switches are next-generation 10G Ethernet switches designed for data centers and high-end campus networks, delivering high-performance, high-density 10GE ports with low latency. Featuring an advanced hardware architecture with 40GE uplink ports and industry-leading 10GE access port density, these switches utilize the VRP8 software platform to provide comprehensive data center service features and superior stacking capability. The airflow direction (front-to-back or back-to-front) is configurable for flexible deployment.
Key Features
- High-density 10GE access for scalable cloud computing networks
- Can serve as aggregation or core switches for enterprise campus networks
- Works seamlessly with CE12800 switches to build elastic, virtualized fabrics
- Advanced hardware architecture with configurable airflow
- VRP8 software platform with extensive data center features
Technical Specifications
General Information
Product Model: CE6856-48T6Q-HI
Product Series: CloudEngine 6800 Series
Ports
10GBASE-T Ethernet Electrical Ports: 48 ports, RJ45 connector, compliant with IEEE 802.3an/az standards, 100/1000M/10G auto-sensing, full-duplex, 100m max distance
40GE QSFP+ Ethernet Optical Ports: 6 ports, LC/MPO connector, IEEE 802.3ba compliant, full-duplex
ETH Management Interfaces: 2 combo ports, GE optical interface supports FE SFP/eSFP
Console Interface: RJ45 connector, RS232 compliant, 9600-115200 bit/s UART
Performance
Processor: 1.2 GHz quad-core
DRAM Memory: 4 GB
NOR Flash: 16 MB
NAND Flash: 1 GB
Power
Power Source: AC/DC/High-Voltage DC
AC Input: 100-240V AC (90-290V range), 50/60Hz
DC Input: -48V to -60V DC (-38.4V to -72V range)
High-Voltage DC Input: 240V/380V DC options
Power Consumption: 219W typical, 346W maximum
Heat Dissipation: 747 Btu/hr typical, 1181 Btu/hr maximum
Environmental
Operating Temperature: 0°C to 40°C (32°F to 104°F) at 0-1800m altitude
Storage Temperature: -40°C to +70°C (-40°F to +158°F)
Humidity: 5% to 95% non-condensing
Altitude: Up to 5000m (16404 ft.)
Noise: <53 dBA at 27°C
Reliability
Surge Protection: 2kV (Ethernet), 4kV (power modules)
Airflow: Configurable front-to-back or back-to-front
Redundancy: 1+1 power module backup, 3+1 fan backup
Hot Swap: All power and fan modules
MTBF: 54.48
MTTR: 1.81
