Home /Products/Network Router/Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps

Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps

2 pieces
MOQ
CN¥1,032.73/pieces >=2 pieces
Price
Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Lan Data Rate: 1000Mbps
With Modem Function: Yes
Standards And Protocols: Wi-Fi 802.11g
Wi-fi Supported Frequency: 2.4G & 5G
Supports Wds: Yes
Supports Wps: Yes
Wi-fi Transmission Standard: 802.11b
Wired Transfer Rate: 10/100/1000Mbps
2.4g Wi-fi Transmission Rate: 600Mbps
Encryption Type: WPA2-PSK, WPA2, WPA3, WPA2-Enterprise, WPA-PSK, WPA, WEP, WPA-Enterprise, WPA2-Personal, WPA-Personal, WPA3-Personal
Private Mold: NO
Products Status: New
Type: Wireless
Application: Home
Function: Voip, SDK Available, FireWall, VPN
Lan Ports: 16
Wan Ports: 1 X10/100/1000Mbps
Brand Name: /
Place Of Origin: Shanghai, China
5g Wi-fi Transmission Rate: 1000Mbps
Product Name: Routers
MOQ: 1PCS
Warranty: 1year
Lead Time: 1-3 Working Days
Package: Original Packaging
Highlight:

Small Network Router

,

Industrial 4G Cellular Router 1000Mbps

,

USR-G805
Basic Infomation
Payment & Shipping Terms
Product Description
USR-G805 Industrial 4G Cellular Router - 1000Mbps
Key Features
  • Dual-band Wi-Fi (2.4G & 5G) with 1000Mbps transmission rate
  • 16 LAN ports + 1 WAN port (10/100/1000Mbps)
  • Industrial-grade metal housing with IP30 protection
  • Wide operating temperature range (-20℃ to 70℃)

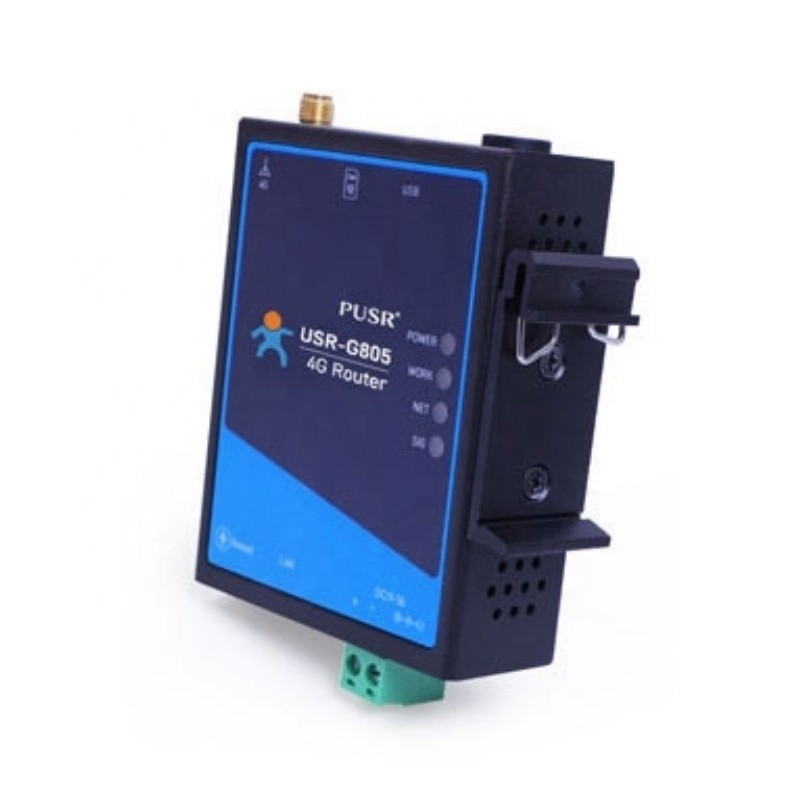

  • Multiple mounting options: Panel, DIN-Rail, or desktop
  • Advanced security with WPA3, WPA2-Enterprise encryption
  • 4G cellular connectivity with SIM card slot
Technical Specifications
Attribute Value
Max LAN Data Rate 1000Mbps
Wi-Fi Standards 802.11b/g/n/ac
Frequency Bands 2.4GHz & 5GHz
Encryption Types WEP, WPA, WPA2, WPA3 (Personal/Enterprise)
LAN Ports 16
WAN Port 1 × 10/100/1000Mbps
Power Input DC 9-36V
Operating Temperature -20℃ to 70℃

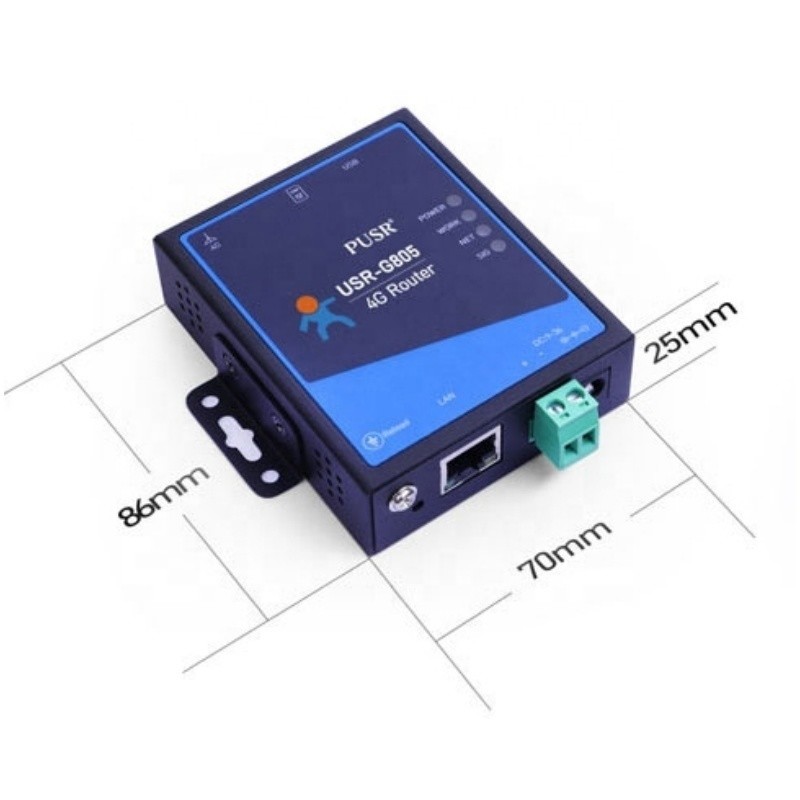

Dimensions 86 × 70 × 25 mm
Warranty 1 Year
Detailed Interface Specifications
Cellular Interface: 1 × SMA-K Antenna
SIM Card: 1 × Standard 2FF SIM (drawer-type slot)
Ethernet: 1 × LAN (10/100 Mbps, IEEE 802.3 compliant)
Power Connector: DC 5.5×2.1mm or 2 PIN terminal block
USB: Firmware upgrading
Indicator Lights
POWER: Always on when powered
WORK: Blinks during operation
NET: 2G(red), 3G(blue), 4G(purple)
SIG: Signal strength (red=weak, blue=medium, purple=strong)
Product Images
Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 0 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 1 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 2 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 3 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 4 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 5 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 6 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 7 Small Network Router USR-G805 Industrial 4G Cellular Router 1000Mbps 8
Ordering Information
MOQ: 1 Piece
Lead Time: 1-3 Working Days
Package: Original Packaging
Origin: Shanghai, China
