Home /Products/Server and Workstation/Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays

Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays

2 pieces
MOQ
CN¥23,104.64/pieces >=2 pieces
Price
Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays
Features Gallery Product Description Request A Quote
Features
Specifications
Private Mold: Yes
Products Status: Stock
Type: Rack
Processor Main Frequency: Servers
Processor Type: Servers
Brand Name: /
Model Number: R760XS
Place Of Origin: Shanghai, China
Product Name: Servers
Size: Customized Size
Color: Customizable
MOQ: 1PCS
Warranty: 1year
Lead Time: 1-3 Working Days
Package: Original Packaging
Highlight:

poweredge drives server

,

poweredge server and workstation

,

2u drives server
Basic Infomation
Payment & Shipping Terms
Product Description
PowerEdge R760 Rack Server - Customizable 2U Chassis
Product Attributes
Private Mold Yes
Availability In Stock
Type Rack Server
Model Number R760XS
Origin Shanghai, China
Size Customizable
Color Customizable
MOQ 1PCS
Warranty 1 Year
Lead Time 1-3 Working Days
Package Original Packaging
Technical Specifications
Processor
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory
  • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
  • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
  • Supports registered ECC DDR4 DIMMs only
Storage Controllers
  • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N
  • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
  • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB
  • External PERC (RAID): PERC H840, HBA355E
Drive Bays
Front bays:
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
  • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB
Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power Supplies
  • 800 W Platinum AC/240 mixed mode
  • 1100 W Titanium AC/240 mixed mode
  • 1400 W Platinum AC/240 mixed mode
  • 2400 W Platinum AC/240 mixed mode
Cooling System
  • Air cooling standard, optional processor liquid cooling
  • Standard fan/High performance SLVR fan/High performance GOLD fan
  • Up to six hot plug fans
Dimensions
  • Height: 86.8 mm (3.41 inches)
  • Width: 482 mm (18.97 inches)
  • Depth: 758.3 mm (29.85 inches) - without bezel
  • Depth: 772.14 mm (30.39 inches) - with bezel
Embedded Management
  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • Quick Sync 2 wireless module
Connectivity
Front Ports:
  • 1 x Dedicated iDRAC Direct micro-USB
  • 1 x USB 2.0
  • 1 x VGA
Rear Ports:
  • 1 x USB 2.0
  • 1 x Serial (optional)
  • 1 x USB 3.0
  • 2 x RJ-45
  • 1 x VGA
Internal Ports:
  • 1 x USB 3.0

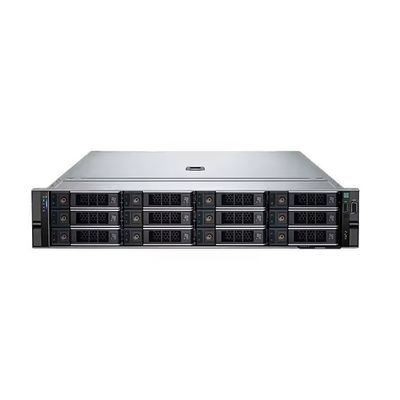

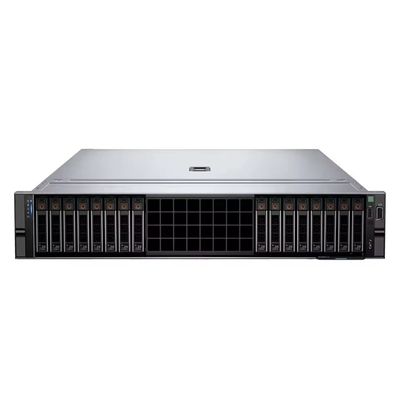

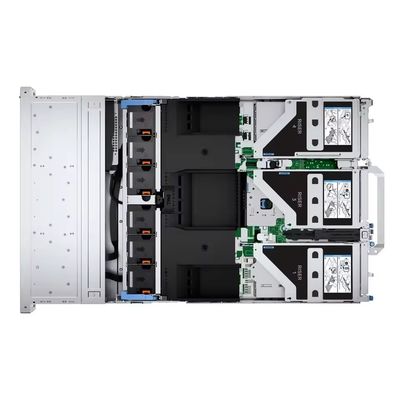

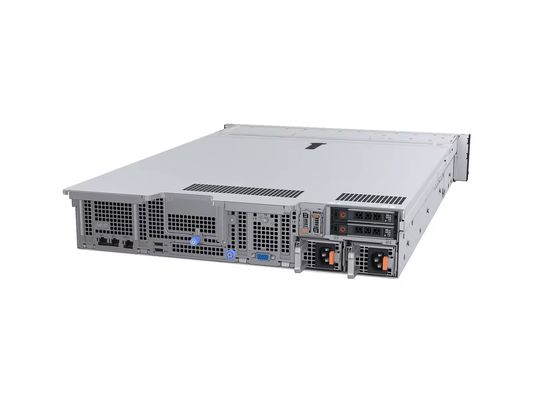

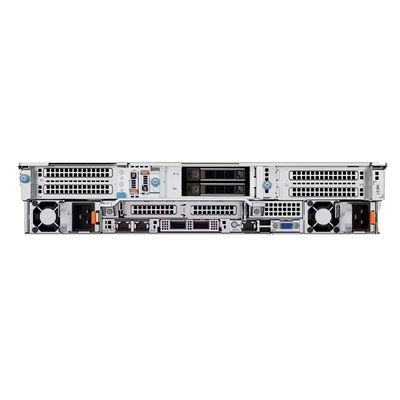

Product Images
Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 0 Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 1 Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 2 Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 3 Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 4 Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 5 Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays 6
Additional Information
Form Factor
2U rack server
Bezel Options
Optional LCD bezel or security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
GPU Options
  • Up to two double-width 300 W
  • Or four single-width 150 W
  • Or six single-width 75 W accelerators
PCIe Expansion
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
