| Private Mold | Yes |
| Products Status | Stock |
| Type | Rack |
| Processor Main Frequency | Servers |
| Processor Type | Servers |
| Model Number | SQ9U10 |
| Place of Origin | Shanghai, China |
| MOQ | 1PCS |
| Warranty | 1 year |
| Lead Time | 1-3 Working Days |
| Package | Original Packaging |

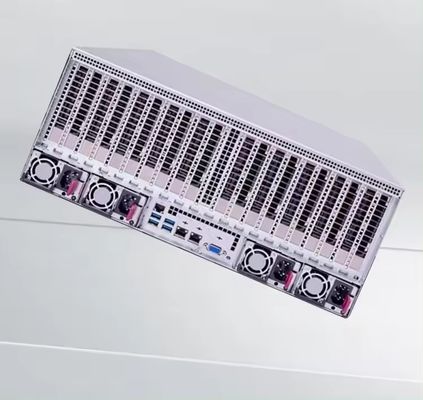

| Product Name | SQ9U10 Server |
| CPU | Supports Intel Xeon Scalable 3rd Generation CPUs with LGA4189 socket, max. support for 270W, 40 cores |
| RAM | Max. support for 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Max. support for 4TB Intel Optane Persistent Memory 200 series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMM B2 and P2-DIMM B2 reserved for Intel Optane Persistent Memory) |
| Hard Disk | Supports 8 x 3.5" SATA/SAS hard drive bays |
| Network | Intel 1350 network chip - Supports 2 x 1000M/100M/10Mbps self-adaptive network ports |
| BMC Management | Supports 1 x 1000M/100M/10Mbps BMC remote management network port |
| Serial Port & USB | 1 x standard RS232 DB9 interface; 6 x USB 3.0 interfaces (2 front, 4 rear) |
| Display Output | 1 x VGA output AST2600 |

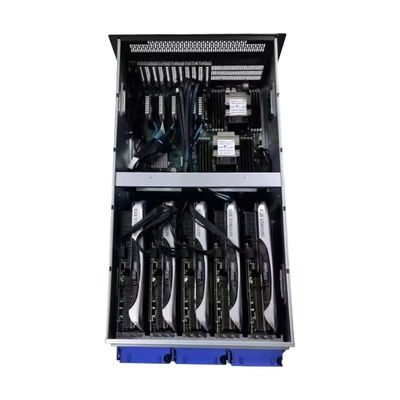

| PCIe | 10 x PCIe 4.0 x8 slots with 85mm spacing (supports 10 x 4090 thick cards); 2 x PCIe 4.0 x8 slots |

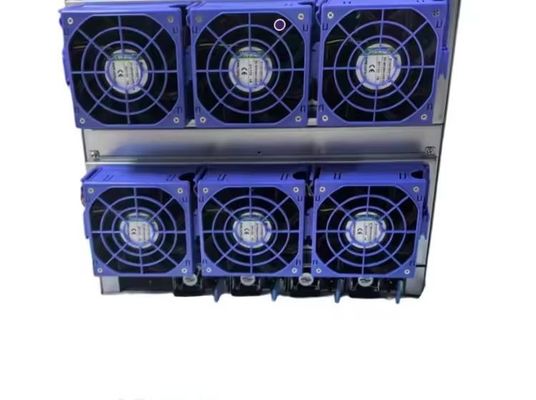

| Power Input | 4 x 2400W CRPS power supplies |
| Dimensions | 944mm × 495mm × 443.7mm |
| Weight | Gross weight: 46.9 kg |
