Features

Specifications

Private Mold: NO

Products Status: Stock

Type: Rack

Processor Main Frequency: Servers

Processor Type: Servers

Brand Name: /

Place Of Origin: Shanghai, China

Product Name: Servers

MOQ: 1PCS

Warranty: 1year

Lead Time: 1-3 Working Days

Package: Original Packaging

Highlight:

4u ai server

4u drives server

Basic Infomation

Payment & Shipping Terms

Gallery

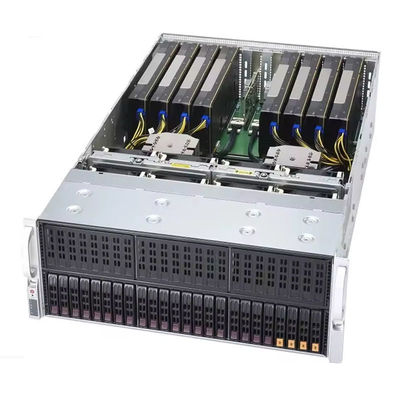

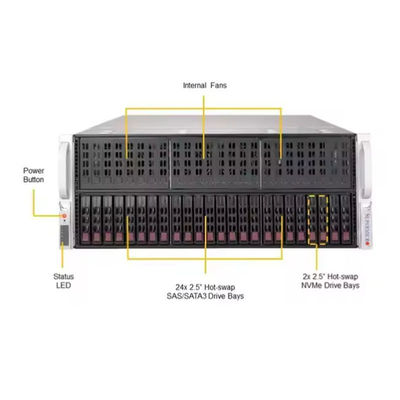

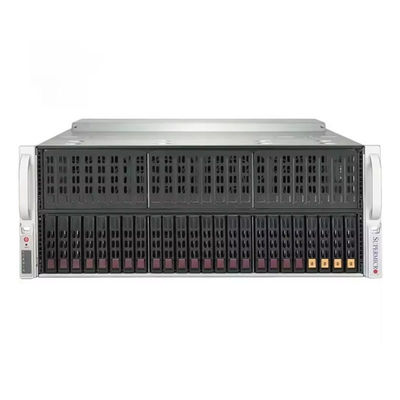

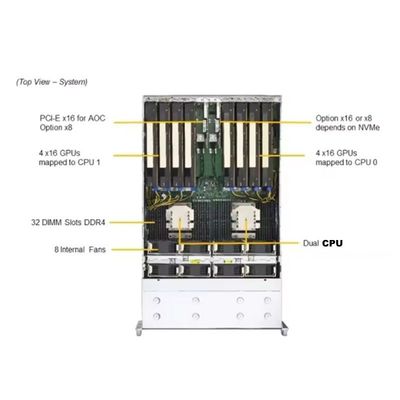

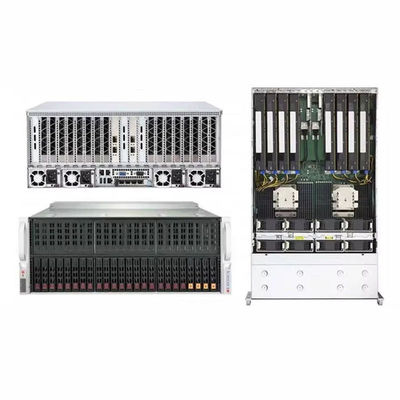

Tel Xeon E5 Portable 4U GPU AI Server Case with Dual CPU Motherboard and 8 GPU Slots Heavy-Duty Construction

Product Description

Tel Xeon E5 Portable 4U GPU AI Server Case with Dual CPU Motherboard and 8 GPU Slots Heavy-Duty Construction

Product Attributes

Product Description

Technical Specifications

Product Name	C612-8U SERVER
Hard Drive	Intel RSTe Support software RAID 0, 1, 10 & 5
NIC	2*Intel 1210-AT2 1GbE LAN
CPU	Supports 2*Intel Xeon E5 CPUs (LGA 2011-3), with options for E5-2600 v3/v4 configurations
RAM	Single node supports up to 1TB DDR4-2400MHz memory
Power Supply	Equipped with 1600W 1+1 redundant Platinum efficiency power supplies. Up to 96% Power Supply Efficiency
Dimensions	685mm482.6mm177.8mm (Length * Width * Height)
Weight	Net Weight: 19 kg, Gross Weight: 22 kg
Motherboard Model	LY-X10D2C
Chipset	PCH C612
Memory Slots	Supports 8 DDR4 DIMM slots
USB	2USB 3.0 ports, 2USB 2.0 ports
Power Supply Voltage	Input Voltage: 100-245V 47Hz-63Hz; Output Voltage: +12V_SB, +12V
Number of fans	3*12038 Temperature-Controlled Fans
Network	2Intel 1210-AT 1 Gigabit Ethernet Controller 1Independent Management Network Port with Realtek RTL8211E PHY

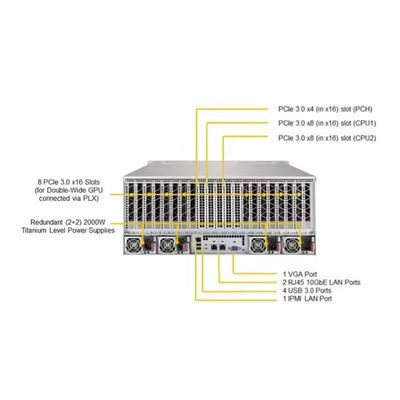

PCI-E	Supports 6PCI-E expansions, including: 4PCIE3.0x16 slots (55mm spacing, wider than double-width) 1PCIE3.0x8 (single-width in X16 slot) 1PCIE3.0x8 (in X8 slot)
Optional GPU Support	Including H200, H100, A100, A800, P100, P40, L40, RTX 4090, RTX 4080, RTX 3090, RTX 3080, and GTX 2080 Ti among other specifications

Key Features

Additional Information
