Frequency Servers 4 Gpu Cards and Dual Cpu in Original 4U Design for Optimal Efficiency

Product Description

Frequency Servers 4 GPU Cards and Dual CPU in Original 4U Design for Optimal Efficiency

Product Attributes

Private Mold	NO
Products Status	Stock
Type	Rack
Processor Main Frequency	Servers
Processor Type	Servers
Brand Name	/
Place of Origin	Shanghai, China
Product Name	Servers
MOQ	1PCS
Warranty	1year
Lead Time	1-3 Working Days
Package	Original Packaging

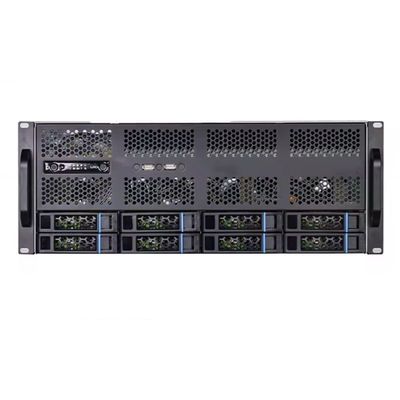

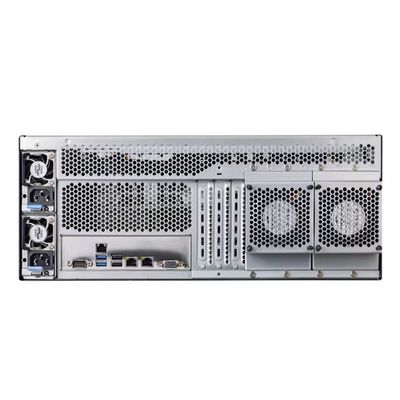

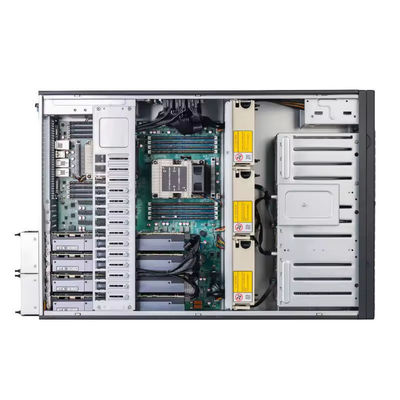

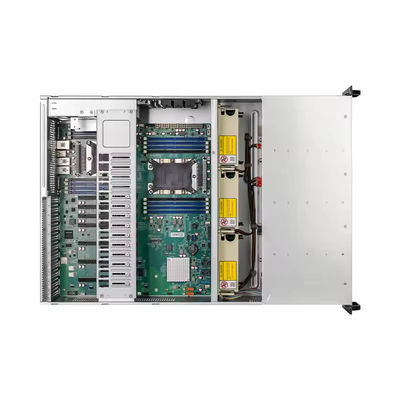

Product Images

Technical Specifications

Product Name: LY-X11D2A SERVER

CPU: Supports two Intel Xeon Scalable first and second generation CPUs with LGA3647 socket. Maximum support for 205W per CPU. Maximum support for 28 cores per CPU.

RAM: DDR4 ECC REGS 16G 2666*4

Motherboard: LY-X11D2A supports 4x dual-width GPUs

Power Supply: 2200W (1+1) redundant power supply

Southbridge: C621 chipset

BMC: ASPEED AST2500

Audio Chip: ALC897

Network Chip: 1210-AT*2

Supported Memory: Support for 16 memory slots. Up to 2TB Intel Optane Persistent Memory 200 Series, DDR4-2666MHz. Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz. Up to 4TB 3DS ECC RDIMM DDR4-2933MHz. Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).

Supported Memory Frequencies: 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM(3DS), RDIMM (3DS)

Single Memory Stick Capacity: LRDIMM: 128GB, 256GB. RDIMM: 64GB, 128GB

PCIe: 6 x PCIe 3.0 x16, 1 x PCIe 3.0 x4 (in x8 slot). 1 x M.2 Interface: PCIe 3.0 x4 Form Factor: 22110, 2280 Key: M-Key. 1 x COM pin header (2.54mm pitch 9pin)

Motherboard Interface: 2 x 8087 interfaces support 8 x SATA3.0. 2 x SATA3.0 interfaces. 1 x USB3.0 header, supporting two USB3.0. 1 x USB2.0 header, supporting two USB2.0. 1 x HD AUDIO Header

I/O: 1 x VGA DB15. 2 x 1000M/100M/10M bps auto-negotiation network ports. 2 x USB3.0 + remote management network port. 1 x COM DB9 interface

Temperature: Operating: 0 to 60°C. Storage: -20 to 75°C

Humidity: 5 to 95% RH (non-condensing)

Additional Images
