Product Name | SYS-6029TR-DTR server |
Motherboard chip | C621 chipset |
Number of memory slots | 8 Pieces |
Maximum memory capacity | 2TB |
Memory type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
Expansion slots | 2 PCI-E 3.0 x8 (FH/HL) or 1 PCI-E 3.0 x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL) + 1 PCI-E 3.0 x4 (LP) |
USB interface | Total 2 USB 3.0 ports (rear) |
External ports | 6 SATA3 (6Gbps) ports, 2 RJ45 Gigabit Ethernet, 1 RJ45 IPMI LAN, 1 VGA port, Serial port, 1 COM port, TPM 2.0 headers |
Power supply | Up to 1200W redundant power supply, titanium grade (96%) |
Chassis type | 2U Rackmount |
Dimensions | 438 × 88 × 724mm |
Weight | Net: 19.1 kg / Gross: 27.71 kg |
Operating temperature | 10°C - 35°C (50°F - 95°F) |
Operating humidity | 8%-90% (non-condensing) |

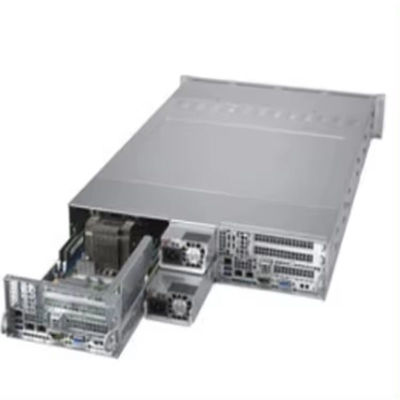

The Supermicro SYS-6029TR-DTR is a high-performance 2U rackmount server designed for enterprises requiring uniform appearance with flexible configuration options. Its ingenious system design delivers exceptional efficiency, reliability, intelligence, and scalability in a compact 2U form factor.
Key advantages include:
Ideal for video conferencing systems, collaborative communication platforms, and other enterprise applications requiring reliable computing power with customizable configurations. The server excels in environments demanding uniform appearance across multiple units while maintaining the flexibility to tailor each system to specific workload requirements.
