Features

Specifications

Private Mold: Yes

Products Status: Stock

Type: Rack

Processor Main Frequency: Servers

Processor Type: Servers

Brand Name: /

Place Of Origin: Shanghai, China

Product Name: Servers

Size: Customized Size

Color: Customizable

MOQ: 1PCS

Warranty: 1year

Lead Time: 1-3 Working Days

Package: Original Packaging

Highlight:

Ssd Mini Pc

gaming Mini PC

Micro Computadoras

Basic Infomation

Payment & Shipping Terms

Gallery

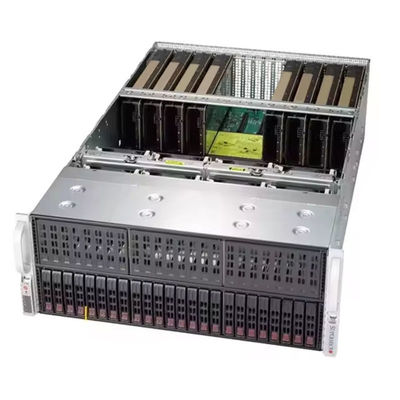

Customized Size 4029GP-TRT SYS-4029GP-TRT 8GPU 10GPU Server C622 Chipset 4029GP Trt2 GPU Barebone System

Product Description

Customized Size 4029GP-TRT SYS-4029GP-TRT 8GPU 10GPU Server C622 Chipset 4029GP Trt2 GPU Barebone System

Product Attributes

Private Mold	Yes
Products Status	Stock
Type	Rack
Processor Main Frequency	Servers
Processor Type	Servers
Place of Origin	Shanghai, China
Product Name	Servers
Size	Customized Size
Color	Customizable
MOQ	1PCS
Warranty	1year
Lead Time	1-3 Working Days
Package	Original Packaging

Product Description

Technical Specifications

System Configuration

Product Name	4029GP TRT2 Server
CPU	2nd Gen Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s, Support CPU TDP 70-205W
Memory Type	2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Cores	Up to 28 Cores
Supported GPUs	10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA V100, P40, T4, Quadro, RTX
Memory Capacity	24 DIMM slots up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM
Chipset	C622 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
LAN	2 RJ45 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port
Fans	8 Hot-swap 92mm cooling fans
Dimension	73.5 x 40 x 265 mm
Total Output Power	1000W: 100-120Vac, 1800W: 200-220Vac, 1980W: 220-230Vac, 2000W: 230-240Vac, 2000W: 200-240Vac (UL/CUL only)
Software	Intel Node Manager, IPMI 2.0 KVM with dedicated LAN, SSM, SPM, SUM, SuperDoctor 5, Watchdog
Form	4U Rackmountable Rackmount Kit (MCP-290-00057-0N)

Key Features

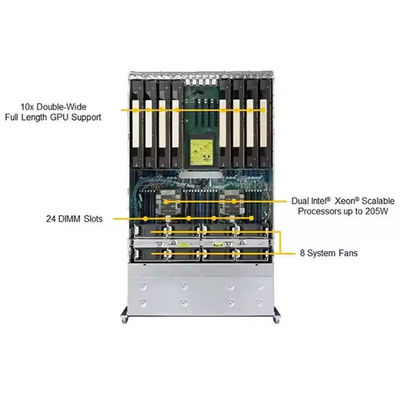

Single Root System for excellent GPU peer-to-peer communication with sufficient CPU to GPU throughput
Dual Socket P (LGA3647) support 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM

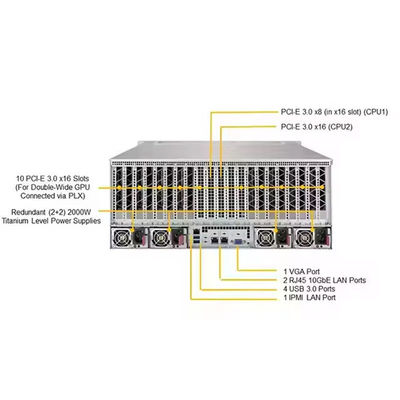

11 PCI-E 3.0 x16 (FH, FL) slots, 1 PCI-E 3.0 x8 (FH, FL in x16 slot)

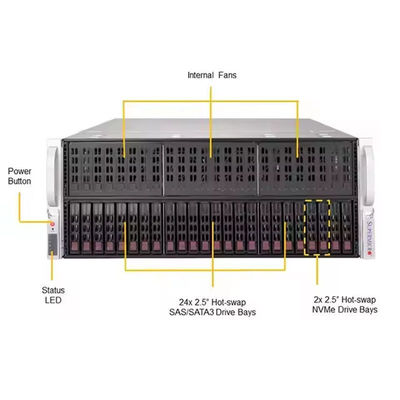

Up to 24 Hot-swap 2.5" drive bays; 8x 2.5" SATA drives, 2x 2.5" NVMe drives, 1 NVMe-based M.2 SSD
2x 10GBase-T LAN ports via Intel C622
8 Hot-swap 92mm RPM cooling fans
2000W (2+2) Redundant Power Supplies Titanium Level (96%)
