Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System

Product Description

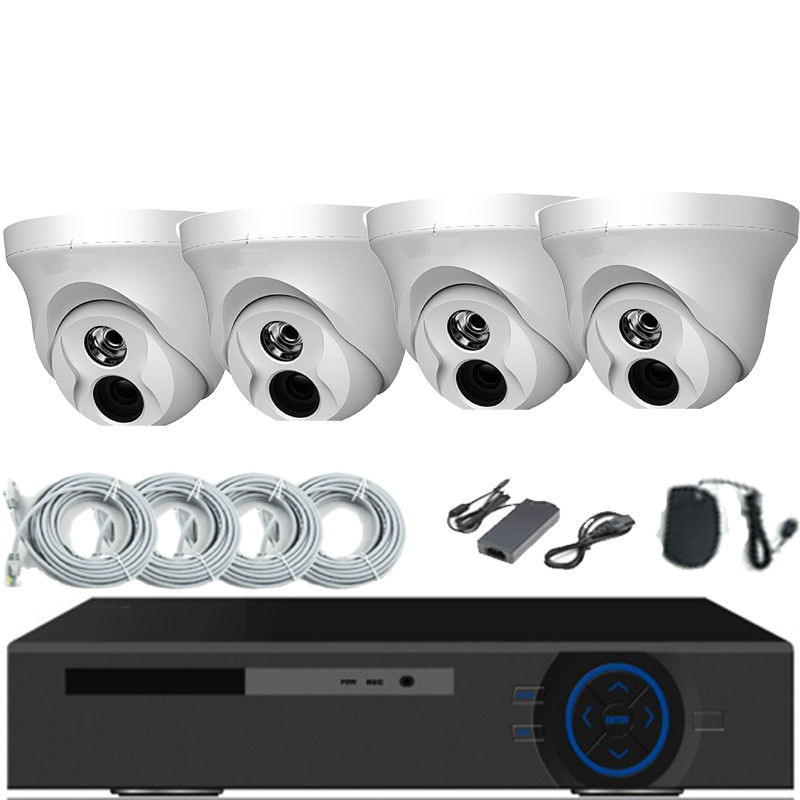

Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System

Product Overview

This complete CCTV surveillance system includes 4 customizable dome cameras paired with a 4-channel NVR for comprehensive security monitoring. The system offers high-definition video recording, remote access, and advanced motion detection capabilities.

Key Attributes

Private Mold

Product Status

Stock

Place of Origin

Shanghai, China

Product Name

CCTV Camera System

Color

Customizable

Product Images

Technical Specifications

System		Details

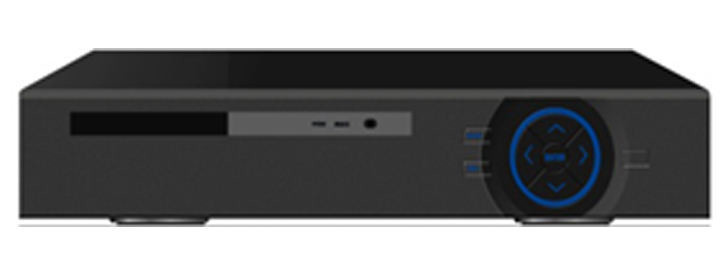

	Model	NVR-7004
	Main processor	Hi3515C
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface		Details
	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/4
Video		Details
	Video input (IP)	41080P/8D1
	Video standards	PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
	Video compression	H.264
	Display quality	Max 1920*1080
	Playback quality	1080P/D1
	Decode	1*1080P
	Motion detection	Support(depend on camera)
Audio		Details
	Audio compression	G.711A
	Intercom	Unsupport
Record & Playback		Details
	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local playback	11080P/4D1
	Search mode	Search by Time/Calendar/Event/Channel
Storage & Backup		Details
	Space occupation	Video:CIF 4~5G/daychannel, D1 8~10G/daychannel;960H 12G~20G/day*channel
		720P 20~30G/daychannel; 1080P ~40G/daychannel;Audio:691.2M/day*channel
	Record storage	HDD Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
	External Interface		Details
	Video output	1ch VGA,1ch hd HD output
	Audio I/O	0/0
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100MAdaptive Ethernet port
	USB interface	2*USB2.0 ports
General		Details
	HDD	1 SATA(Up to 6TB for each disk)
	PTZ control	Control PTZ device by network
	ONVIF	Support
	Power supply	12V/3A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0-+55°C, Humidity:10%-90%RH, Atm:86kpa-106kp
	Dimension	233(L)* 300mm(W)* 45mm(H)
	Weight	3KG
