FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs

2
MOQ
$1,586-1,728
Price
FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs
Features Gallery Product Description Request A Quote
Features
Specifications
Form Factor: 1U Rack Server
Memory Slots: 32 DDR4 DIMMs
Memory Speed: 3200 MT/s
Internal Storage: 10 X 2.5-inch SAS/SATA/SSDs Or 8 X 2.5-inch SAS/SATA Or 4 X 3.5-inch SAS/SATA
Flash Storage: 2 M.2 SSDs
RAID Support: RAID 0, 1, 1E, 5, 50, 6, 60
Network Ports: OCP 3.0 NICs, 2 Flexl0 Card Slots
PCIe Slots: 6 (1 For RAID, 2 For OCP 3.0, 3 Standard PCIe 4.0)
Fan Modules: 7 Hot-swappable, N+1 Redundancy
Power Supply: 900W/1500W/2000W AC, 1500W HVDC, 1200W DC Options
Management Interface: IBMC With Gigabit Ethernet
Operating Temperature: 5°C To 45°C
Dimensions: 43.5 Mm X 447 Mm X 790 Mm
Processor Type: Intel Xeon Processor
Security Features: TPM 2.0, Secure Boot, Cover Opening Detection
Highlight:

FusionServer 1288H V6 rack server

,

1U server with DDR4 DIMMs

,

32 DIMMs rack server workstation
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: 1288H V6
Payment & Shipping Terms
Product Description
FusionServer 1288H V6 1U Rack Intel Processor 32 DDR4 DIMMs Server
Product Specifications
Model FusionServer 1288H V6
Form Factor 1U rack server
Memory 32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s
Internal Storage Supports hot-swappable hard drives with multiple configuration options:
  • 10 x 2.5-inch SAS/SATA/SSDs (6-8 NVMe SSDs and 2-4 SAS/SATA HDDs)
  • 10 x 2.5-inch SAS/SATA/SSDs (2-4 NVMe SSDs and 6-8 SAS/SATA HDDs)
  • 8 x 2.5-inch SAS/SATA hard drives
  • 4 x 3.5-inch SAS/SATA hard drives
  • Flash storage: 2 M.2 SSDs
RAID Support RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports Provides expansion capability of multiple network types; OCP 3.0 NICs; two Flexl0 card slots support two OCP 3.0 network adapters (hot-swappable)
PCIe Expansion Six PCIe slots including one dedicated for RAID card, two Flexl0 card slots for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards
Fan Modules 7 hot-swappable counter-rotating fan modules with N+1 redundancy support
Power Supply Two hot-swappable PSUs in 1+1 redundancy mode with multiple options:
  • 900 W AC Platinum/Titanium PSUs
  • 1500 W AC Platinum PSUs
  • 1000 W PSUs
  • 1500 W 380 V HVDC PSUs
  • 1200 W -48 V to -60 V DC PSUs
  • 2000 W AC Platinum PSUs
Management iBMC chip with dedicated Gigabit Ethernet management port; supports Redfish, SNMP, and IPMI 2.0; HTML5/KVM interface; optional FusionDirector management software for advanced functions
Operating Systems Microsoft Windows Server, SUSE Linux, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc.
Security Features Power-on password, administrator password, TPM 2.0, security panel, secure boot, cover opening detection
Operating Temperature 5°C to 45°C (41°F to 113°F) - ASHRAE Classes A1 to A4 compliant
Certifications CE, UL, FCC, CCC, VCCI, RoHS
Installation Kit L-shaped guide rails, adjustable guide rails, holding rails
Dimensions (H × W × D) 43.5 mm × 447 mm × 790 mm (1.71 in × 17.60 in × 31.10 in)

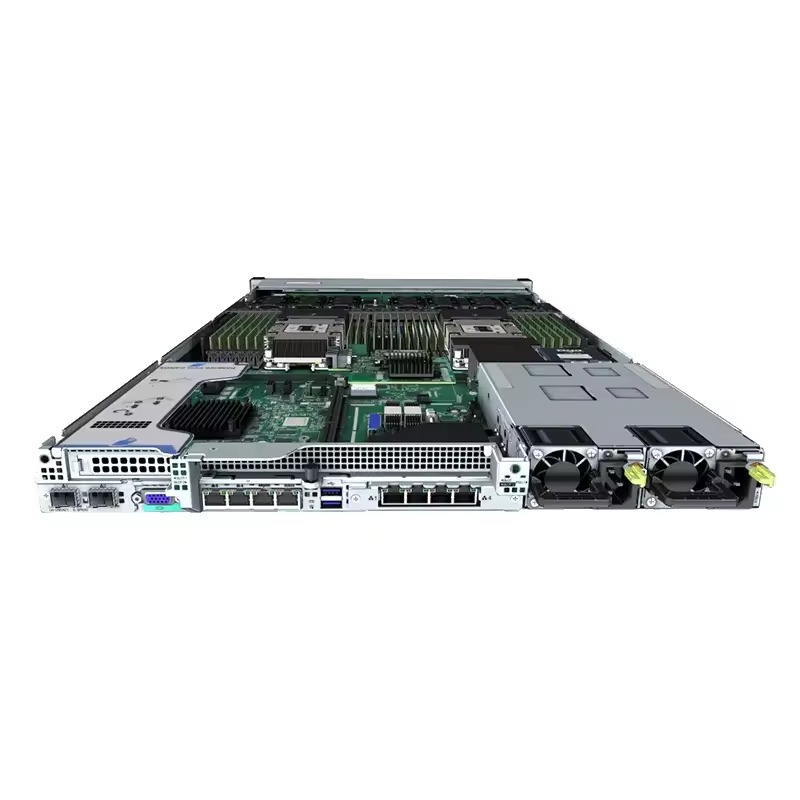

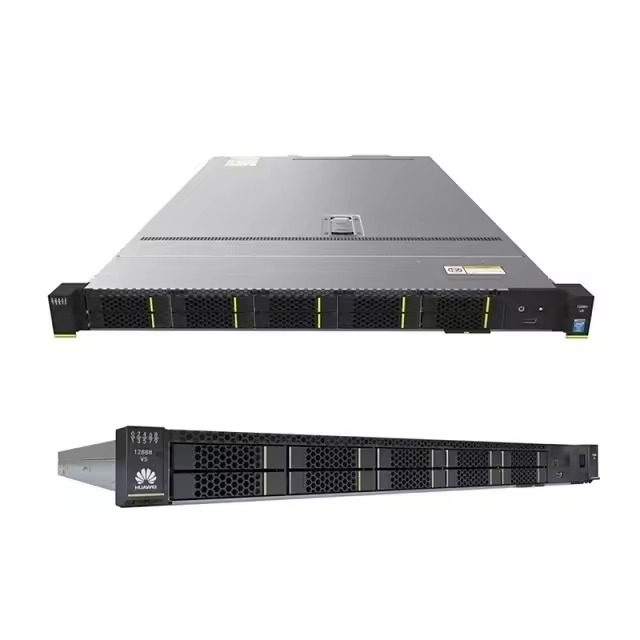

Product Images
FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs 0 FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs 1
Contact Information
Don't hesitate to contact us for best prices!
Sincerely hope to start a good cooperation with you soon!
Name Jack Long
WhatsApp 008613310122788
WeChat/Tel 008613310122788

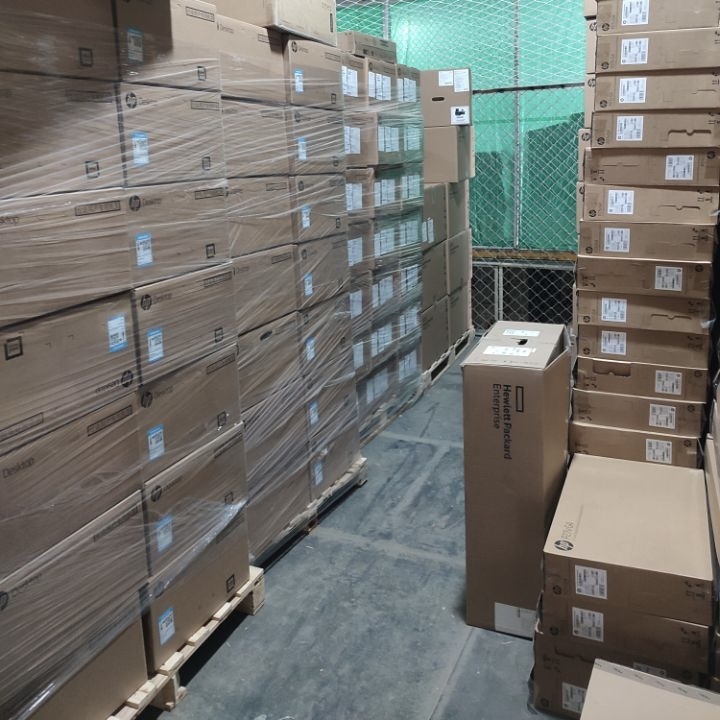

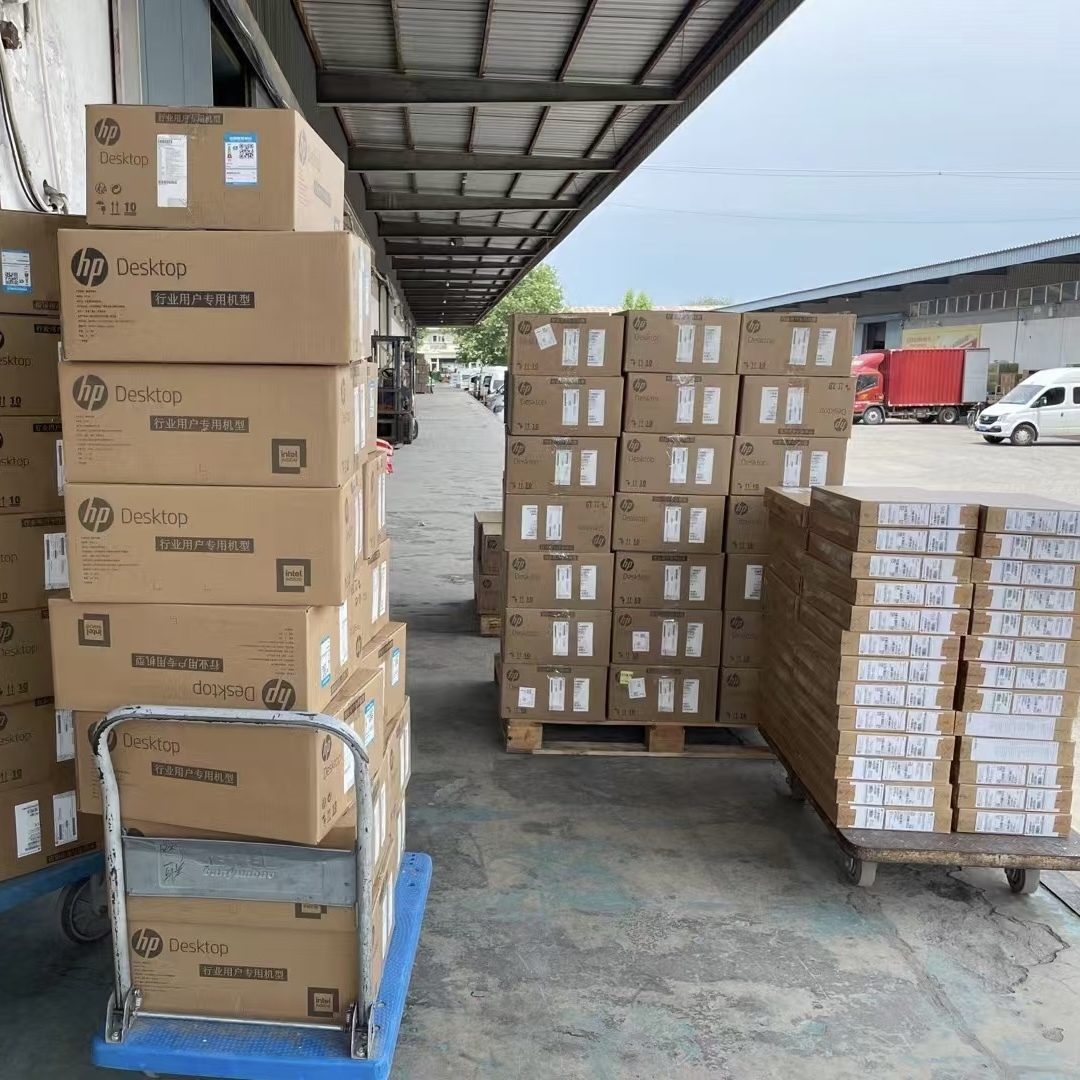

Packaging & Shipping
Fast delivery: Two large warehouses with products in stock to minimize delivery time.
FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs 2

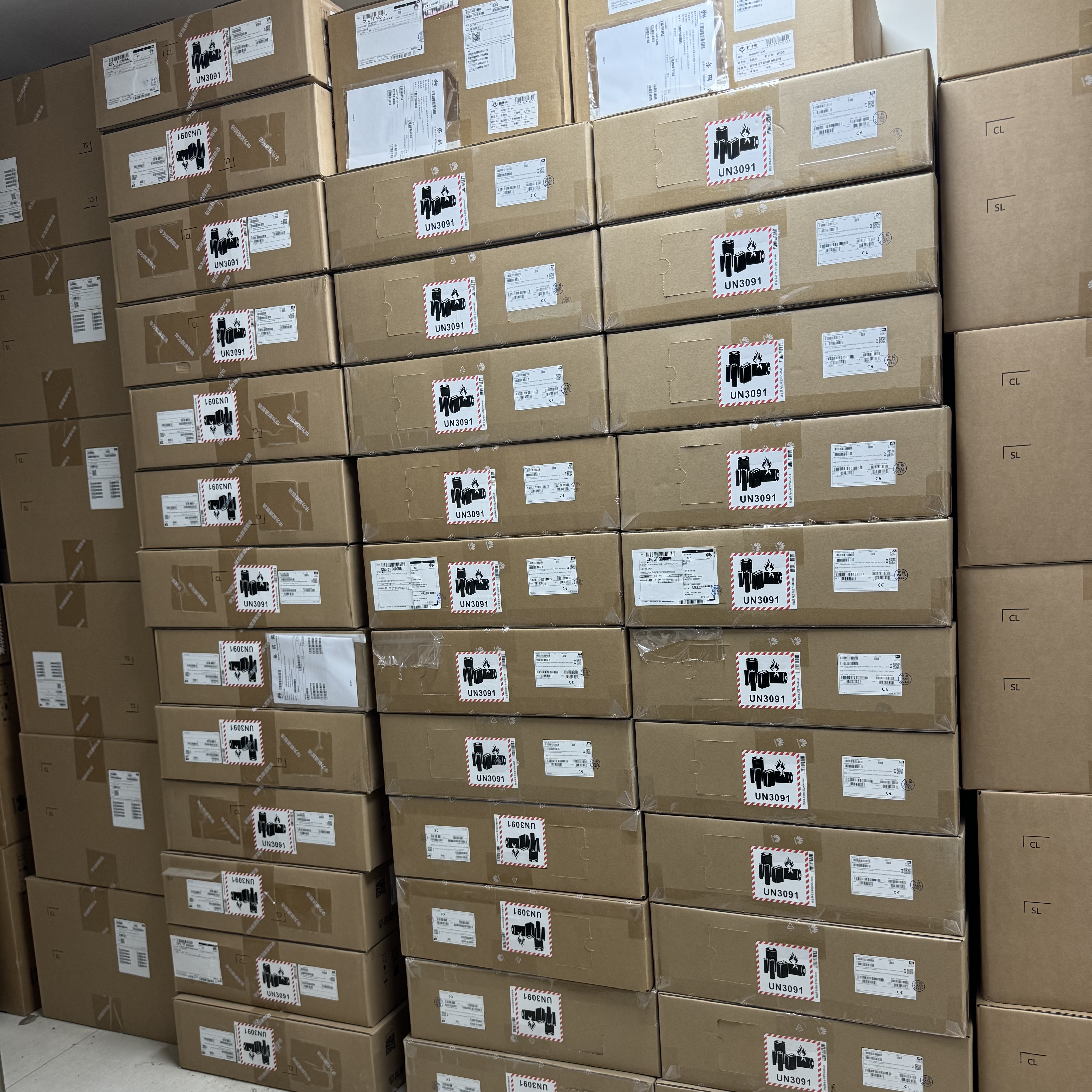

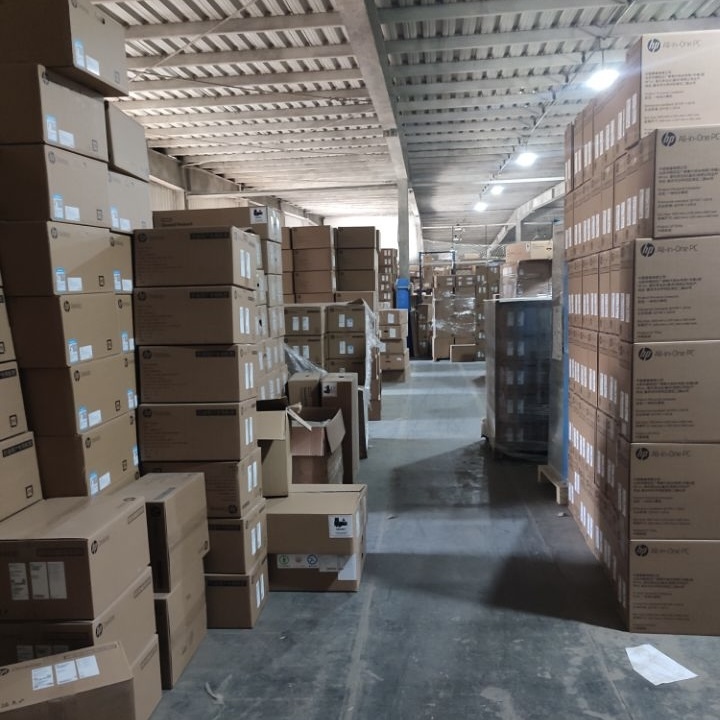

Company Information
APYING is an industry-leading company offering reliable networking devices and equipment to businesses of all sizes. We supply a wide range of high-performance products with ISO 9001 certification including switches, routers, servers, Wi-Fi systems, surveillance equipment, and more.
FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs 3
With 16+ years of experience since 2008, we ensure high quality products with competitive prices, security, stability, and reliability. Our original packaging, one-stop transportation service, and one-year warranty provide complete customer satisfaction.
FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs 4 FusionServer 1288H V6 1U Rack Server with 32 DDR4 DIMMs 5
We provide tailor-made innovative solutions with professional pre- and after-sales service, continuing to offer superior products and unparalleled service.
Frequently Asked Questions
Q: What's your advantages?
A: We are a premium selected partner and professional supplier in network equipment field for more than seven years. We supply original products at competitive prices with 24-hour free consulting and professional technical support.
Q: What's the warranty of your products?
A: One year (except for used products).
Q: What's the MOQ for your products?
A: 1 piece.
Q: What's the payment terms?
A: Pre T/T, PayPal, West Union, or Alibaba Trade Assurance order.
Q: What's the package?
A: Original packing with protective outer box to ensure safe delivery.
