Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots

1
MOQ
$450
Price
Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots
Features Gallery Product Description Request A Quote
Features
Specifications
CPU Model: AMD Ryzen R1600
CPU Quantity: 1
CPU Core: 2
CPU Frequency: 2.6 (base) / 3.1 (turbo) GHz
System Memory: 4 GB DDR4 ECC SODIMM
Memory Slots: 2
Max Memory Capacity: 32 GB (16 GB X 2)
Drive Bays: 4
Max Drive Bays: 9 (DX517 X 1)
M.2 Drive Slots: 2 (NVMe)
LAN Ports: 2 (RJ-45 1GbE)
USB Ports: 2 (USB 3.2 Gen 1)
PCIe Expansion: 1 X Gen3 X2 Network Upgrade Slot
Dimensions: 166 Mm X 199 Mm X 223 Mm
Weight: 2.24 Kg
Highlight:

Synology DS923+ NAS 4-bay tower

,

NAS with 10GbE connectivity

,

Dual NVMe slots NAS server
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: DS923+
Payment & Shipping Terms
Product Description
New Original DS923+ Versatile Smart Storage Platform

Store and share up to 50 TB of data with support for 10GbE and dual NVMe drives in this high-performance NAS solution.

Hardware Specifications
CPU
CPU Model AMD Ryzen R1600
CPU Quantity 1
CPU Core 2
CPU Architecture 64-bit
CPU Frequency 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine
Memory
System Memory 4 GB DDR4 ECC SODIMM
Memory Module Pre-installed 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status.
  • Please select Synology memory modules for optimum compatibility and reliability.
  • For multi-module memory configurations, all modules must be identical and share the same model number.
Storage
Drive Bays 4
Maximum Drive Bays with Expansion Unit 9 (DX517 x 1)
M.2 Drive Slots 2 (NVMe)
Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
Notes The hot swappable drive feature is not supported by M.2 SSD slots.
External Ports
RJ-45 1GbE LAN Port 2
USB 3.2 Gen 1 Port* 2
Expansion Port 1
Expansion Port Type eSATA
Notes This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
Additional Specifications
PCIe Expansion 1 x Gen3 x2 network upgrade slot
Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
Weight 2.24 kg
System Fan 92 mm x 92 mm x 2 pcs
Product Images

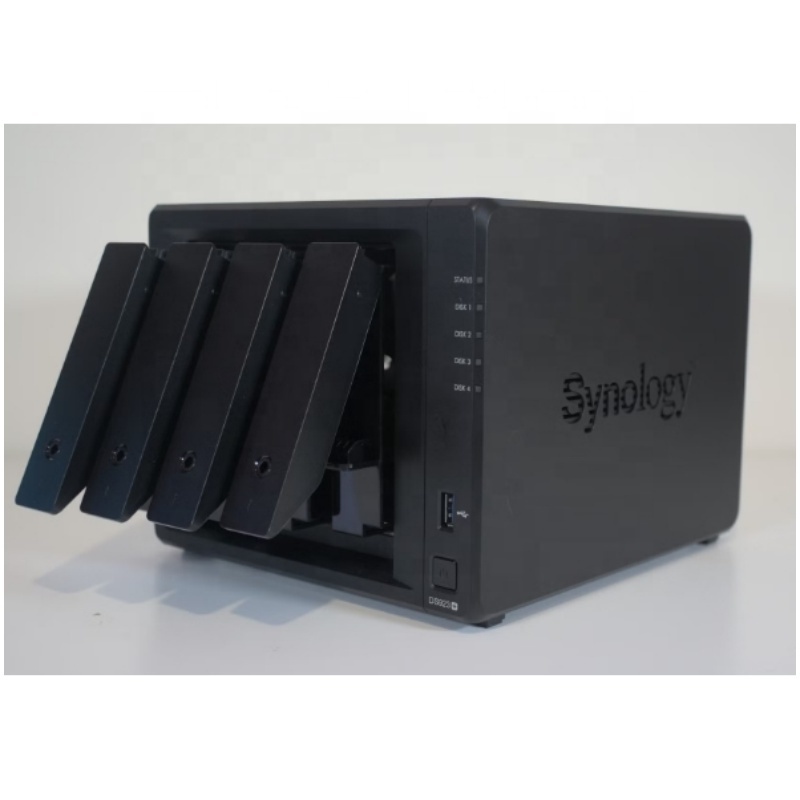

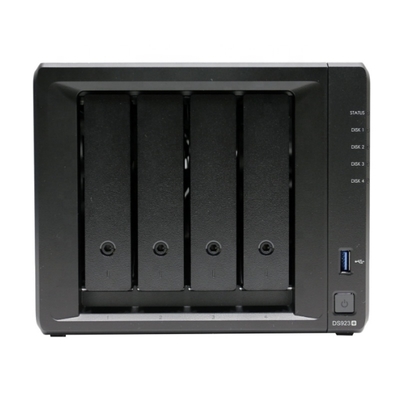

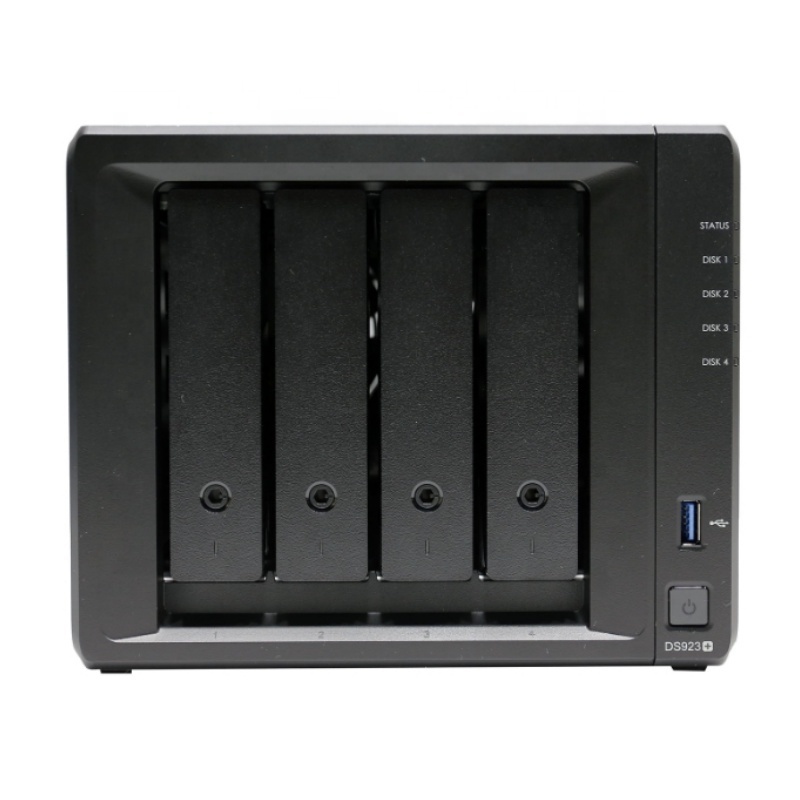

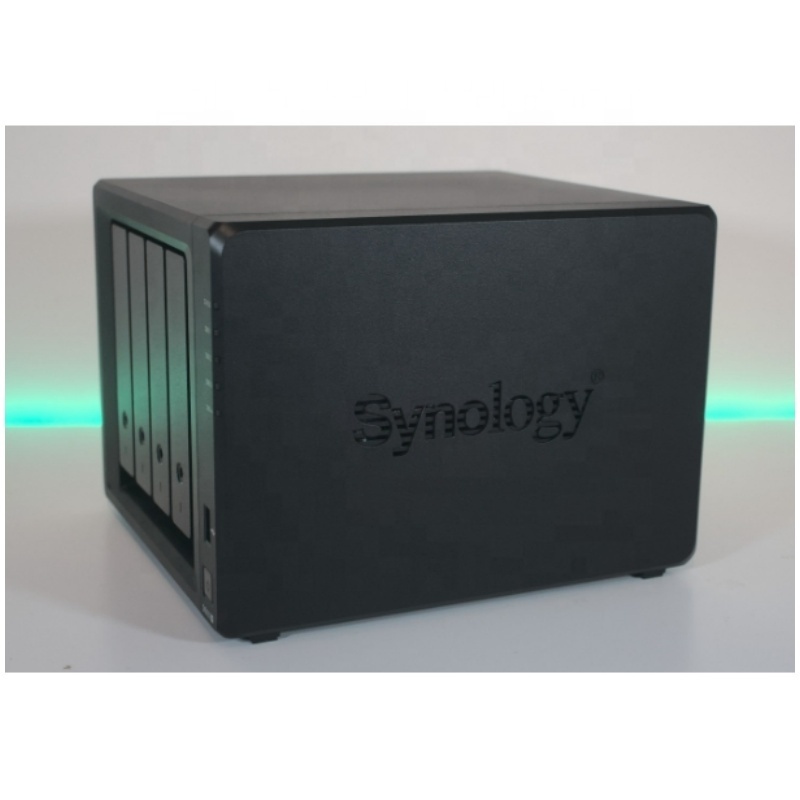

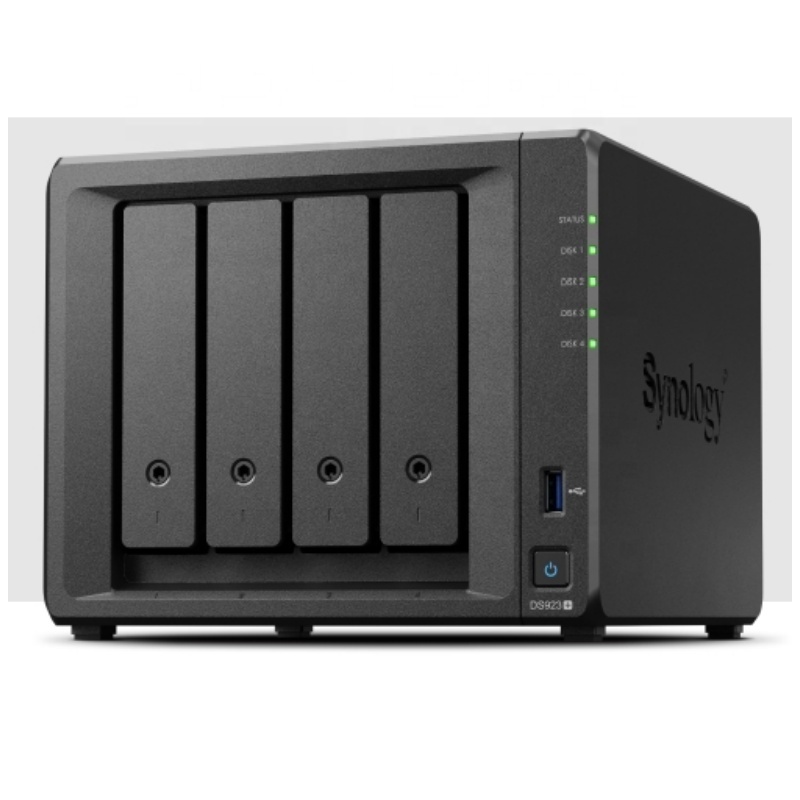

Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 0 Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 1
Our Advantage
Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 2
Company Information
Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 3
Production & Quality
Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 4 Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 5
Packaging & Shipping
Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 6
FAQ
Synology DS923+ NAS 4-Bay Tower with 10GbE and Dual NVMe Slots 7
