Home /Products/Network Router/02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray

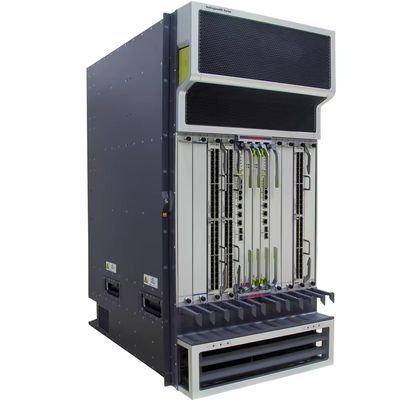

02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray

CN¥4,036.10/pieces 1-1 pieces
Price
02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Enterprise Router
Use: Enterprise
Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

wireless network router

,

customized network router

,

wireless enterprise router
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: CR5P08BASD7J
Payment & Shipping Terms
Product Description
02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray
Product Attributes
Type Enterprise Router
Use Enterprise
Network bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size Customized Size
Color Customizable
Suitable for Workstation, Laptop, Desktop
Product Overview
02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray 0 02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray 1
Technical Specifications
Item NE40E-X16 NE40E-X8 NE40E-X3
Switching capacity 316.5 Tbps 168.8Tbps 75.94 Tbps
Forwarding performance 48000 Mpps 24000 Mpps 9000 Mpps
Slot bandwidth 2 Tbps 2 Tbps 240 Gbps
Capacity density (G/U) 800 762 100
Slot 22 slots, including 16 business circuit board slots, 2 main control board slots, and 4 switching network board slots 12, including 8 business circuit board slots, 2 routing switching board slots, and 2 switching network board slots 5, including 3 business line cards and 2 main control board slots.
Overall dimensions (W × D × H) 442mm×650mm×1778mm(40U) 442mm×650mm×930mm(21U) 442mm×710mm×264mm (6U)
Typical full power consumption 9,040 W (480G) 4,770 W (480G) 1,120 W (200G)
Full weight 356 kg (480G) 186 kg (480G) 74.7 kg (200G)
Interface type 400GE/100GE/50GE/40GE/25GE/10GE LAN/WAN/GE/FE/POS/CPOS/E1/CE1 400GE/100GE/50GE/40GE/25GE/10GE LAN/WAN/GE/FE/POS/CPOS/E1/CE1 100GE/50GE/40GE/25GE/10GE LAN/WAN/GE/FE/POS/CPOS/E1/CE1
Advanced Features
IPv4: Support Static routing, RIP, OSPF, IS-IS, BGP-4 and other routing protocols
IPv6: Comprehensive transition technologies including manual/automatic configuration tunnels, 6to4 tunnel, GRE tunnel, ISATAP tunnel
MPLS: Supports TE, P2MP-TE/mLDP, MPLS/BGP VPN compliant with RFC2547 protocol
SR/SRv6: Supports SR MPLS, SR Policy, SR TI-LFA, L3VPN over SRV6
Two-layer characteristics: IEEE 802.1q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1ab, STP/RSTP/MSTP, VLAN, G.8032, EVC, VxLAN
QoS: Comprehensive HQoS mechanism with advanced scheduling and congestion avoidance
Time synchronization: Supports clock synchronization Ethernet, 1588v2, Adaptive Clock Recovery (ACR)
Product Images
02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray 2 02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray 3 02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray 4
Packaging & Delivery
02353EMQ HW Enterprise Router CR5P08BASD7J NE40E-X8A Basic Configuration 2 A14 SRUs 2 SFUs 1T-H 6 DC Power 3 Fan Tray 5
