Home /Products/Network Router/CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop

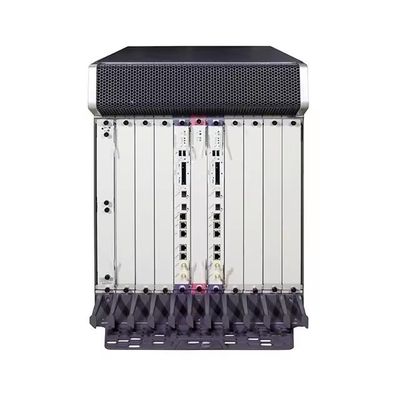

CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop

CN¥7,220.20/pieces 1-1 pieces
Price
CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Enterprise Router
Use: Enterprise
Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

wireless network router

,

customized network router

,

wireless enterprise router
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: CR5B0BKP0876
Payment & Shipping Terms
Product Description
CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A

High-performance integrated chassis AC components with 2T capacity including 3 fan tray, designed for enterprise desktop deployment.

Product Attributes
Type Enterprise Router
Use Enterprise
Network Bluetooth, Wireless LAN, Wired LAN, ONVIF, SDK
Size Customized Size
Color Customizable
Suitable for Workstation, Laptop, Desktop
Product Images
CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop 0 CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop 1
Technical Specifications
Item NE40E-X16A NE40E-X8A NE40E-X3A
Switching capacity 316.5 Tbps 168.8Tbps 120.03 Tbps
Forwarding performance 76800 Mpps 38400 Mpps 11700 Mpps
Slot configuration 22 slots (16 business, 2 main control, 4 switching) 12 slots (8 business, 2 routing switching, 2 switching) 5 slots (3 business line cards, 2 main control)
Dimensions (W×D×H) 442×650×1778mm (40U) 442×650×930mm (21U) 442×710×264mm (6U)
Weight 453.8Kg (2T DC) 242kg (2T DC) 74.7 kg (200G)
Interface types 400GE/100GE/50GE/40GE/25GE/10GE LAN/WAN, GE/FE, POS/CPOS/E1/CE1
Advanced Features
  • IPv4/IPv6 Support: Comprehensive routing protocols including Static, RIP, OSPF, IS-IS, BGP-4 with line speed forwarding
  • MPLS Capabilities: TE, P2MP-TE/mLDP, MPLS/BGP VPN, RFC2547 compliance, VPLS/VLL technologies
  • SR/SRv6: SR MPLS, SR Policy, SR TI-LFA, L3VPN over SRV6
  • Layer 2 Features: IEEE 802 standards, STP/RSTP/MSTP, VLAN, G.8032, EVC, VxLAN
  • QoS: Advanced HQoS mechanism with precise traffic supervision and shaping
  • Time Synchronization: 1588v2 support and Adaptive Clock Recovery
Additional Resources
CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop 2 CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop 3 CR5B0BKP0876 HW 02351TXA Enterprise Router NE40E-X8A Integrated Chassis AC Components 2T Including 3 Fan Tray for Desktop 4
