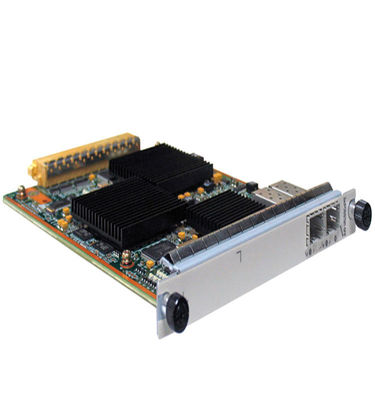

Name: NE40E-X3/NE40E-X8/NE40E-X16 Enterprise Router 1-Port 100GBase-CFP Integrated Line Processing Unit LPUI-120 for Enterprise
Brand: Shanghai Apying Technology Co., Ltd.
SKU: CR5D00E1NC76
Price: 1.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Enterprise Router

Use: Enterprise

Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK

Size: Customized Size

Color: Customizable

Suitable For: Workstation, Laptop, Desktop

Highlight:

for enterprise network router

for enterprise enterprise router

wireless network router

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: /

Model Number: CR5D00E1NC76

Payment & Shipping Terms

Gallery

NE40E-X3/NE40E-X8/NE40E-X16 Enterprise Router 1-Port 100GBase-CFP Integrated Line Processing Unit LPUI-120 for Enterprise

Product Description

NE40E-X3/NE40E-X8/NE40E-X16 Enterprise Router 1-Port 100GBase-CFP Integrated Line Processing Unit LPUI-120 for Enterprise

Product Attributes

Attribute	Value
Type	Enterprise Router
Use	Enterprise
Network	bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size	Customized Size
Color	Customizable
Suitable for	Workstation, Laptop, Desktop

Product Overview

Technical Specifications

Item	NE40E-X16A	NE40E-X8A	NE40E-X3A
Switching capacity	316.5 Tbps	168.8Tbps	120.03 Tbps
Forwarding performance	76800 Mpps	38400 Mpps	11700 Mpps
Slot	22 slots, including 16 business circuit board slots, 2 main control board slots, and 4 switching network board slots	12, including 8 business circuit board slots, 2 routing switching board slots, and 2 switching network board slots	5, including 3 business line cards and 2 main control board slots
Overall dimensions (W × D × H)	442mm×650mm×1778mm(40U)	442mm×650mm×930mm(21U)	442mm×710mm×264mm (6U)
Weight	453.8Kg (2T DC)	242kg (2T DC)	74.7 kg (200G)
Interface type	400GE 100GE50GE40GE25GE10GE LAN/WANGE/FE POS/CPOS/E1/CE1	400GE 100GE50GE40GE25GE10GE LAN/WAN GE/FE POS/CPOS/E1/CE1	100GE 50GE40GE25GE10GE LAN/WAN GE/FE POS/CPOS/E1/CE1
IPv4	Support Static routing, RIP, OSPF, IS-IS, BGP-4 and other routing protocols. All ports can forward at line speed in complex routing environments such as route oscillation
IPv6	Enrich the transition technology from IPv4 to IPv6: manual configuration tunnel, automatic configuration tunnel, 6to4 tunnel, GRE tunnel, ISATAP tunnel, etc IPv4 over IPv6 tunnel and 6PE IPv6 Static routing Dynamic routing protocols such as BGP4/BGP4+, RIPng, OSPFv3, and lSlSv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, traceroute IPv6, socket IPv6, static IPv6 DNS, specified IPv6 DNS server, TFTP IPv6 client, IPv6 policy routing ICMPv6 MIB, UDP 6 MIB, TCP 6 MIB, IPv6 MIB, etc
MPLS	MPLS TE, supports P2MP-TE/mLDP, supports MPLS/BGP VPN, and complies with RFC2547 protocol Three cross domain implementation methods, supporting integration with Internet services MPLS L2 VPN based on Martini and KompeIIa methods, supporting various Layer 2 VPN technologies such as VPLS/VLL, and supporting heterogeneous media interoperability Multicast VPN MPLS-TP EVPN Remote LFA
SR/SRv6	SR MPLS, SR PoIicy SR TI-LFAL3VPN over SRV6
Two-layer characteristics	IEEE 802.1q, IEEE 802.1p, IEEE 802.3 and IEEE 802.1ab STP, RSTP, MSTP 和 VLAN G.8032 EVC VxLAN
QoS	A comprehensive HQoS mechanism, each circuit board can provide advanced scheduling and congestion avoidance technology Provide precise traffic supervision and traffic shaping functions Provide the function of defining complex rules and support fine-grained flow identification MPLS HQoS, comprehensively ensuring QoS scheduling for MPLS VPN, VLL, and PWE3 QPPB QoS for TE tunnel
Time synchronization	Support clock synchronization Ethernet Support 1588v2 Support for Adaptive Clock Recovery (ACR)
