Home /Products/Network Router/Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power

Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power

CN¥7,212.98/pieces 1-1 pieces
Price
Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Enterprise Router
Use: Enterprise
Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

wireless network router

,

customized network router

,

wireless enterprise router
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: CR5P08BASA71
Payment & Shipping Terms
Product Description

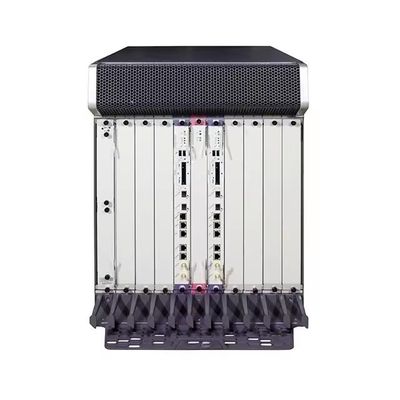

Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71
Product Overview

The NE40E-X8 Enterprise Router is a high-performance networking solution featuring a chassis with 2 redundant 200G SRU/SFU and 4 AC power supplies. Designed for enterprise environments, it delivers exceptional routing capabilities with customizable sizing and color options.

Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power 0 Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power 1
Key Attributes
Type Enterprise Router
Use Enterprise
Network Bluetooth, Wireless LAN, Wired LAN, ONVIF, SDK
Size Customized Size
Color Customizable
Suitable for Workstation, Laptop, Desktop
Technical Specifications
Item NE40E-X16 NE40E-X8 NE40E-X3
Switching capacity 316.5 Tbps 168.8Tbps 75.94 Tbps
Forwarding performance 48000 Mpps 24000 Mpps 9000 Mpps
Slot bandwidth 2 Tbps 2 Tbps 240 Gbps
Capacity density (G/U) 800 762 100
Slot 22 slots (16 business, 2 main control, 4 switching) 12 slots (8 business, 2 routing switching, 2 switching) 5 slots (3 business line cards, 2 main control)
Dimensions (W×D×H) 442×650×1778mm (40U) 442×650×930mm (21U) 442×710×264mm (6U)
Power consumption 9,040 W (480G) 4,770 W (480G) 1,120 W (200G)
Weight 356 kg (480G) 186 kg (480G) 74.7 kg (200G)
Interface type 400GE/100GE/50GE/40GE/25GE/10GE LAN/WAN, GE/FE, POS/CPOS, E1/CE1
Advanced Features
  • IPv4/IPv6 Support: Comprehensive routing protocols including Static, RIP, OSPF, IS-IS, BGP-4
  • MPLS Capabilities: TE, P2MP-TE/mLDP, MPLS/BGP VPN, RFC2547 compliance
  • SR/SRv6: SR MPLS, SR Policy, SR TI-LFA, L3VPN over SRV6
  • Layer 2 Features: IEEE 802.1q/p/3ad/1ab, STP/RSTP/MSTP, VLAN, G.8032, EVC, VxLAN
  • QoS: Advanced HQoS mechanism with traffic supervision and shaping
  • Time Synchronization: 1588v2 support and Adaptive Clock Recovery
Additional Images
Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power 2 Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power 3 Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power 4 Enterprise Router NE40E-X8 Basic Configuration CR5P08BASA71 Including NE40E-X8 Chassis 2 1 Redundant 200G SRU/SFU 4 AC Power 5
