Home /Products/Network Router/S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC

S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC

CN¥4,036.10/pieces 1-1 pieces
Price
S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Enterprise Router
Use: Enterprise
Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

wireless network router

,

customized network router

,

wireless enterprise router
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: S4013072
Payment & Shipping Terms
Product Description
S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC
Product Overview
Attribute Value
Type Enterprise Router
Use Enterprise
Network bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size Customized Size
Color Customizable
Suitable for Workstation, Laptop, Desktop

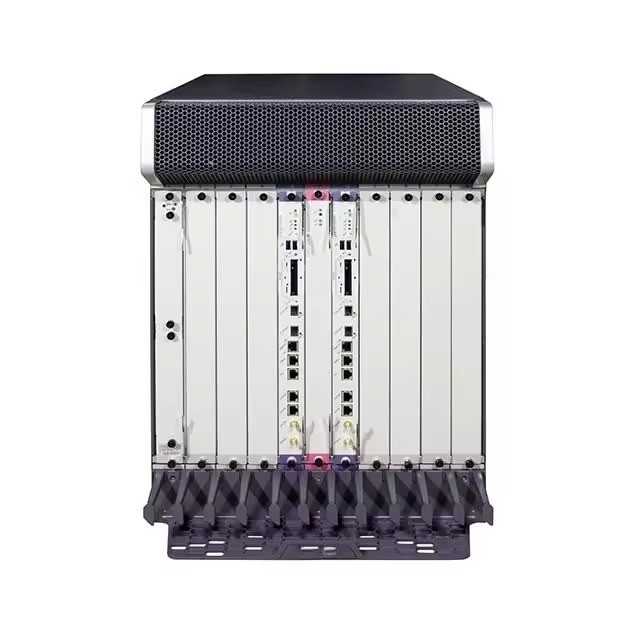

Product Images
S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC 0 S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC 1
Technical Specifications
Item NE40E-X16A NE40E-X8A NE40E-X3A
Switching capacity 316.5 Tbps 168.8Tbps 120.03 Tbps
Forwarding performance 76800 Mpps 38400 Mpps 11700 Mpps
Slot 22 slots (16 business, 2 main control, 4 switching) 12 slots (8 business, 2 routing, 2 switching) 5 slots (3 business line cards, 2 main control)
Dimensions (W×D×H) 442×650×1778mm (40U) 442×650×930mm (21U) 442×710×264mm (6U)
Weight 453.8Kg (2T DC) 242kg (2T DC) 74.7 kg (200G)
Interface type 400GE/100GE/50GE/40GE/25GE/10GE LAN/WAN, GE/FE, POS/CPOS/E1/CE1 400GE/100GE/50GE/40GE/25GE/10GE LAN/WAN, GE/FE, POS/CPOS/E1/CE1 100GE/50GE/40GE/25GE/10GE LAN/WAN, GE/FE, POS/CPOS/E1/CE1
Advanced Features
IPv4/IPv6 Support: Comprehensive routing protocol support including Static routing, RIP, OSPF, IS-IS, BGP-4, with line speed forwarding in complex routing environments.
MPLS Capabilities: Supports MPLS TE, P2MP-TE/mLDP, MPLS/BGP VPN (RFC2547 compliant), VPLS/VLL technologies, and Multicast VPN.
SR/SRv6: Features SR MPLS, SR Policy, SR TI-LFA, and L3VPN over SRV6.
QoS: Advanced HQoS mechanism with precise traffic supervision, shaping functions, and complex rule definition for fine-grained flow identification.
Time Synchronization: Supports clock synchronization, 1588v2, and Adaptive Clock Recovery (ACR).
Additional Images
S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC 2 S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC 3 S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC 4 S4013072 HW Enterprise Router NE40E Basic Configuration CR52-NE40E-BASE8-DC 5
