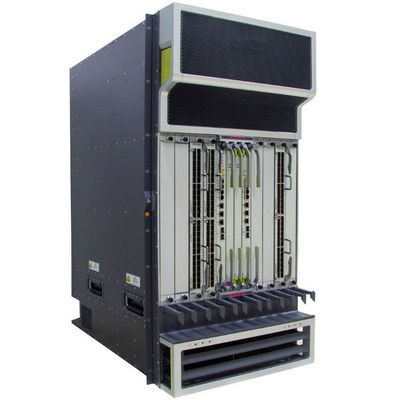

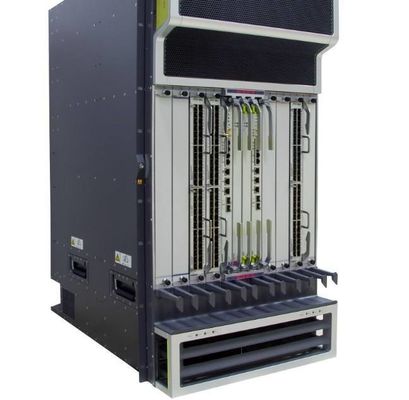

Name: 02351TWY Customized Size NE40E-X8A CR5B0BKP0875 Integrated Chassis HVDC Components 2T Including 3 Fan Tray Enterprise Router
Brand: Shanghai Apying Technology Co., Ltd.
SKU: CR5B0BKP0875
Price: 1.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Enterprise Router

Use: Enterprise

Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK

Size: Customized Size

Color: Customizable

Suitable For: Workstation, Laptop, Desktop

Highlight:

customized network router

customized enterprise router

wireless network router

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: /

Model Number: CR5B0BKP0875

Payment & Shipping Terms

Gallery

02351TWY Customized Size NE40E-X8A CR5B0BKP0875 Integrated Chassis HVDC Components 2T Including 3 Fan Tray Enterprise Router

Product Description

02351TWY Customized Size NE40E-X8A CR5B0BKP0875 Integrated Chassis HVDC Components 2T Including 3 Fan Tray Enterprise Router

Product Attributes

Type	Enterprise Router
Use	Enterprise
Network	bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size	Customized Size
Color	Customizable
Suitable for	Workstation, Laptop, Desktop

Product Description

Technical Specifications

Part Number	02351TWY
Model	CR5B0BKP0875
Description	NE40E-X8A Integrated Chassis HVDC Components(2T, Including 3 Fan Tray)
First supported version	V800R010C10SPC500
Height [mm]	930 mm
Depth [mm]	941 mm
Width [mm]	442 mm
Chassis height [U]	21U
Weight without packaging (full configuration) [kg(lb)]	[400G bundle] 184.3 kg (406.31 lb) [1T bundle] 206.5 kg (455.25 lb) [2T bundle] 234.4 kg (516.76 lb)
Weight without packaging [kg(lb)]	79.9 kg (176.15 lb)
Typical power consumption (with configuration) [W]	4110 W (fully configured with LPUF-240s) 4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts) 11100 W (fully configured with LPUI-2Ts)
Maximum power consumption (with configuration) [W]	6080 W (fully loaded with LPUF-240s) 7110 W (fully loaded with LPUF-480s) 9500 W (fully loaded with LPUI-1Ts) 14000 W (fully loaded with LPUI-2Ts)
Power supply mode	HVDC
Input voltage range [V]	192 to 288V, 264 to 400V
Rated input voltage [V]	240V/380V
Number of slots	12
Number of service board slots	8
Switching capacity [bps,bit/s]	51.2 Tbit/s (LPUI-2T)
MTBF [year]	22.32
MTTR [hour]	0.5
Availability	0.999997443

Environmental Specifications

Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158 °F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.36 ft.)
