Name: 02351TWW h ua w ei enterprise router NE40E-X8A CR5B0BKP0874 Integrated Chassis DC Components 2T Including 3 Fan Tray Compact
Brand: Shanghai Apying Technology Co., Ltd.
SKU: CR5B0BKP0874
Price: 1.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Enterprise Router

Use: Enterprise

Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK

Size: Customized Size

Color: Customizable

Suitable For: Workstation, Laptop, Desktop

Highlight:

wireless network router

customized network router

wireless enterprise router

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: /

Model Number: CR5B0BKP0874

Payment & Shipping Terms

Gallery

02351TWW h ua w ei enterprise router NE40E-X8A CR5B0BKP0874 Integrated Chassis DC Components 2T Including 3 Fan Tray Compact

Product Description

NE40E-X8A Enterprise Router (Model: CR5B0BKP0874)

Product Overview

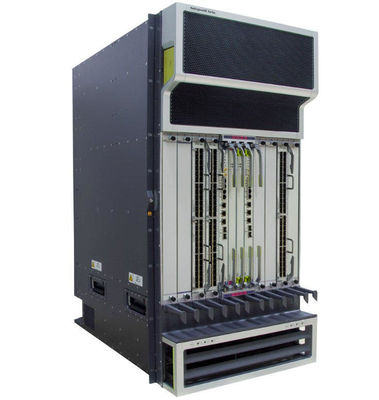

The NE40E-X8A is a high-performance enterprise router featuring an integrated chassis with DC components, including 3 fan trays. Designed for demanding network environments, this router delivers exceptional switching capacity and redundancy features.

Key Features

51.2 Tbit/s switching capacity (LPUI-2T)
3+1 redundant switch fabrics
1:1 redundant MPUs
Multiple power supply redundancy options (3+1 to 7+1 depending on configuration)
DC power supply with wide input voltage range (-40V to -72V)
NEBS-compliant noise levels (<78 dBA)
High availability design (0.999997443)
Supports multiple network protocols including Bluetooth, Wireless LAN, Wired LAN

Technical Specifications

Part Number	02351TWW
Model	CR5B0BKP0874
Description	NE40E-X8A Integrated Chassis DC Components (2T, Including 3 Fan Tray)
First Supported Version	V800R010C10SPC500
Dimensions (H×D×W)	930 × 941 × 442 mm (21U)
Weight (Full Configuration)	400G bundle: 186.1 kg (410.28 lb) 1T bundle: 209 kg (460.77 lb) 2T bundle: 242 kg (533.52 lb)
Weight (Base Unit)	84.3 kg (185.85 lb)
Typical Power Consumption	4110 W (LPUF-240s) 4770 W (LPUF-480s) 6520 W (LPUI-1Ts) 11100 W (LPUI-2Ts)
Maximum Power Consumption	6080 W (LPUF-240s) 7110 W (LPUF-480s) 9500 W (LPUI-1Ts) 14000 W (LPUI-2Ts)
Power Supply Mode	DC
Input Voltage Range	-40 V to -72 V
Rated Input Voltage	-48 V/-60 V
Maximum Input Current	63 A/single-module
Slots	12 total (8 service board slots)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Operating Humidity	5% RH to 85% RH, non-condensing
MTBF	22.32 years
MTTR	0.5 hours
